Roadman 102 HS B5
Portable PA Loudspeaker with Headset
7 Photos ,
Roadman 102 HS B5
Portable PA Loudspeaker with Headset
Model:
Share
Article number: LDRM102HSB5Item No. LDRM102HSB5
Description

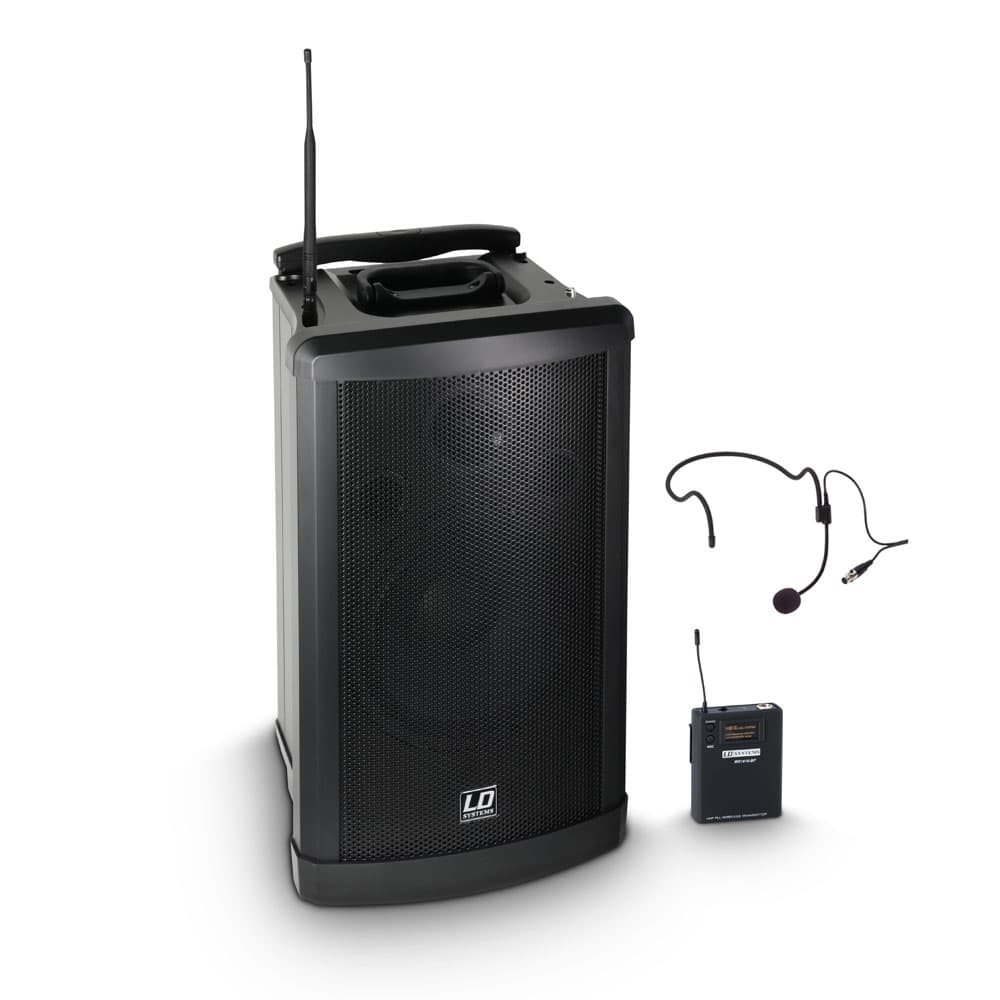

The LD Systems Roadman 102 HS B5 is a mobile and compact sound system

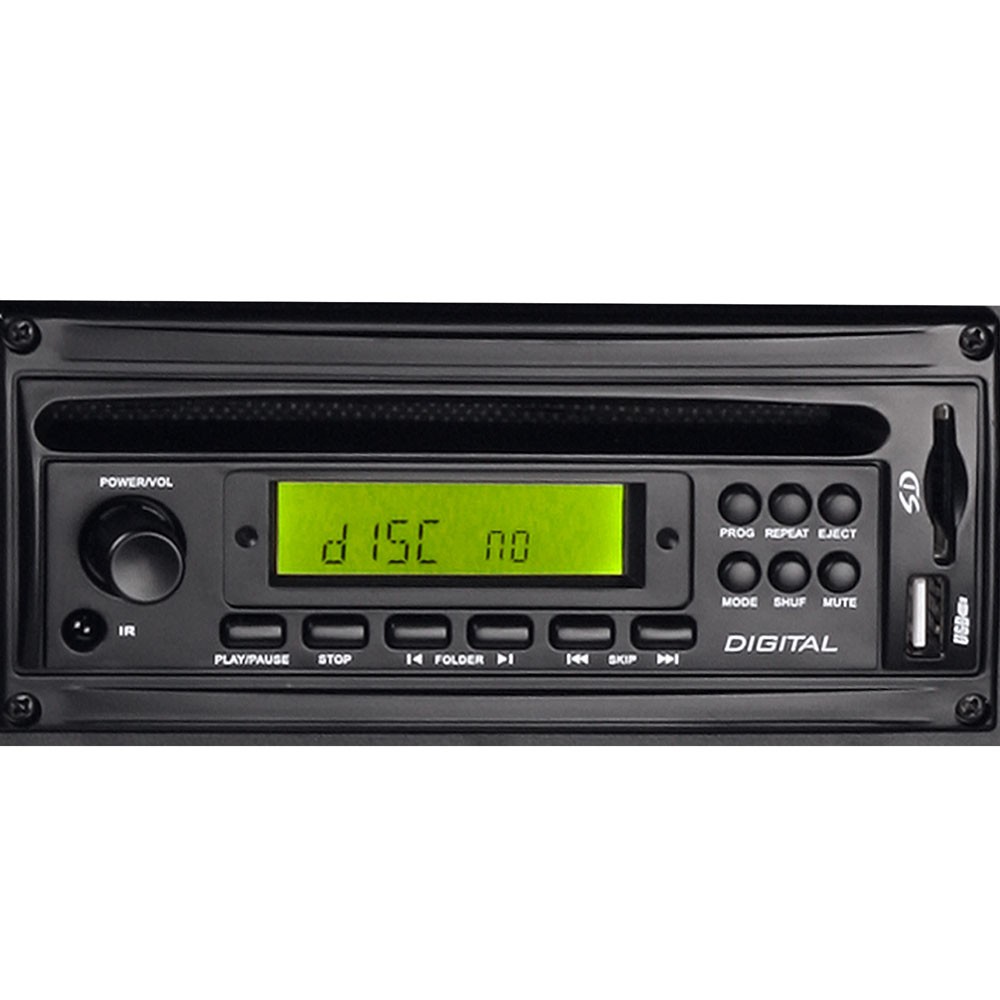

The Roadman 102 HS B5 is a compact and mobile PA solution with integrated battery. This system is perfectly suitable for solo entertainers, churches, schools, business conferences or presentations where versatility is required. The Roadman comes with a CD/MP3/USB/SD Player as well as a wireless microphone unit. A second wireless microphone unit are also available in option.
Specifications
| Product type | Battery-powered PA speaker |
|---|---|
| Version | Set with Handheld Transmitter |
| Low/mid Woofer dimensions | 10 Inch |
| Woofer dimensions (mm) | 254 mm |
| Woofer magnet | Ferrite |
| Woofer brand | Custom-made |
| HF driver dimensions | 1 Inch |
| HF driver dimention (mm) | 25.4 mm |
| HF driver magnet | Ferrite |
| HF driver brand | Custom-made |
| Amplifier | Class D |
| RMS | 80 W |
| Peak power | 320 W |
| Frequency response | 70 - 16000lx @ 1m |
| SPL (1W/1m) | 95 dB |
| Max. SPL | 115 dB |
| Protection circuits | Short circuit |

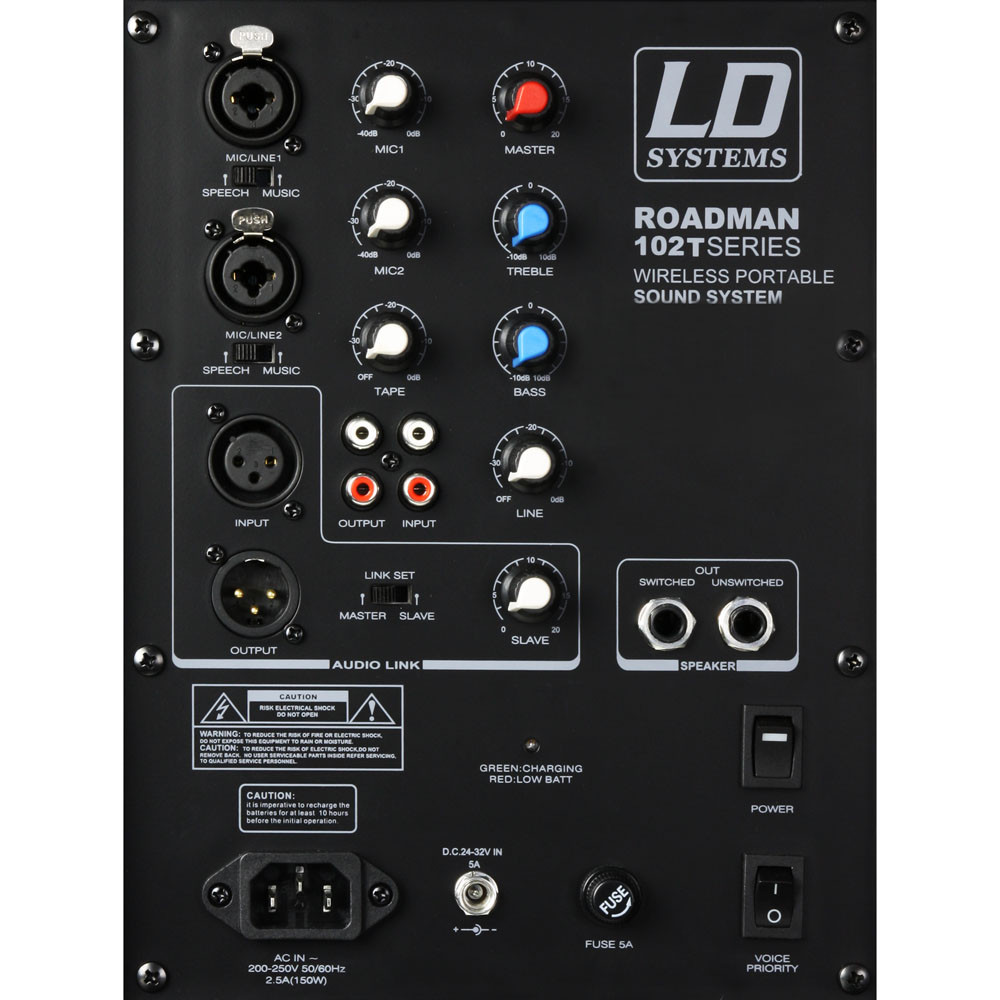

| Controls | Speech / music switch (Mic / Line 2), Volume Mic 1, Speech / music switch (Mic / Line 1), Audio-Link Set ( Main / Follower), Power, Audio-Link Follower Volume, Main, Line Gain, Voice priority on / off, Treble, Volume Mic 2, Value Down, Bass |
| Indicators | Charge/battery status, Power |
