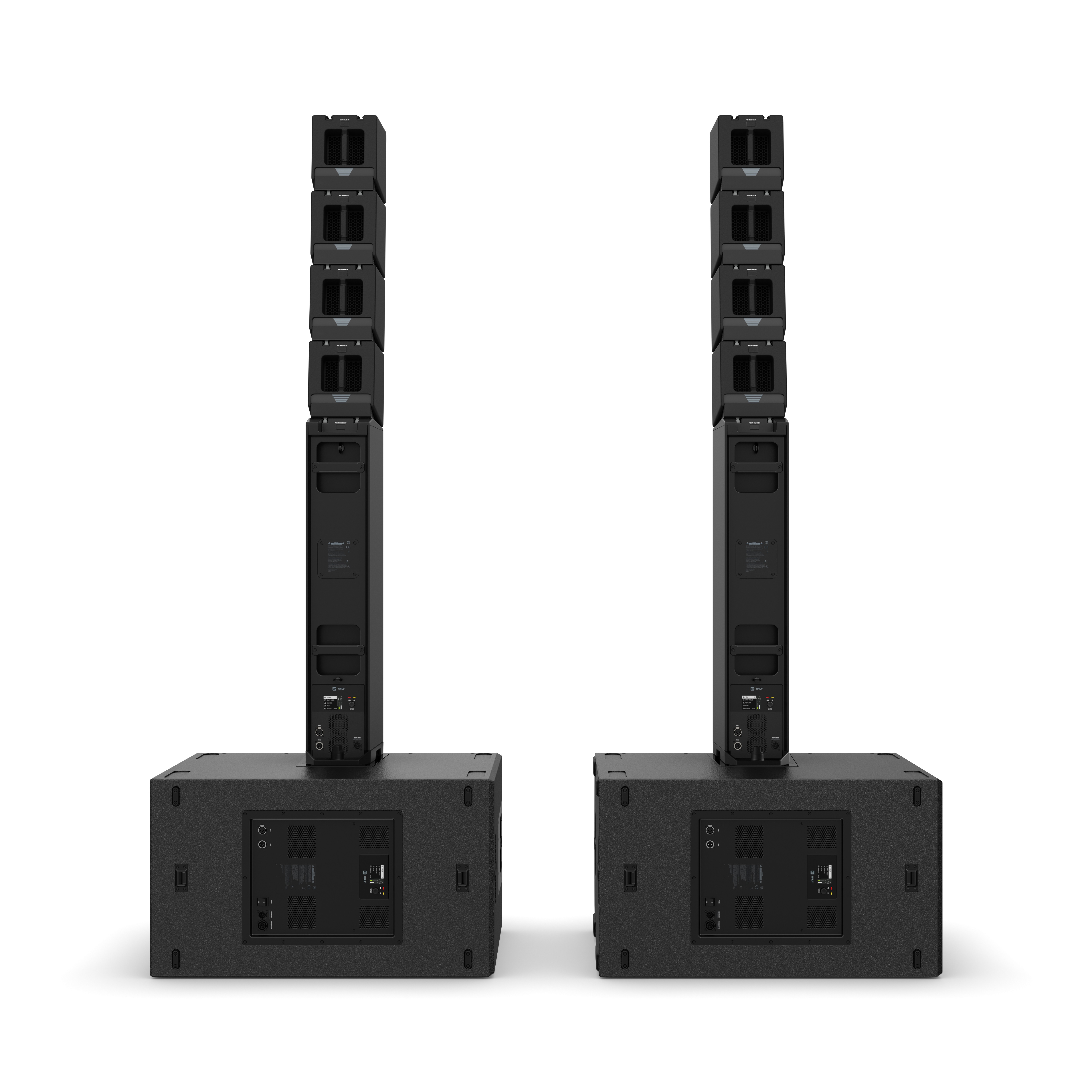

MAILA M

Compact Line Array System, 10 kW
Item No.: LDMAILAM
Series: MAILA
Versions:
Stereo system as a combination of ground stack PA, column system and line array components
Total power: 10 kW
2x15'' high-performance subwoofer in bandpass design
MAILA COL low-mid column module with integrated 2.5 kW amplifier
Tweeter and midrange driver of the satellites in WaveAhead® arrangement + passive membrane for extended low-midrange reproduction
Elegant and robust aluminium housing for MAILA SAT and MAILA COL
Innovative EasySplay® mechanism for angle adjustment (0 - 8°) of each satellite with only one hand
SmartLink+® enables cable-free connection of column module and satellite
Configurable via dedicated MAILA Quick Setup App (iPadOS)
LogoLink®: Wireless antennas integrated in the LD logo for wireless app connection


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Stereo system as a combination of ground stack PA, column system and line array components
Total power: 10 kW
2x15'' high-performance subwoofer in bandpass design
MAILA COL low-mid column module with integrated 2.5 kW amplifier
Tweeter and midrange driver of the satellites in WaveAhead® arrangement + passive membrane for extended low-midrange reproduction
Elegant and robust aluminium housing for MAILA SAT and MAILA COL
Innovative EasySplay® mechanism for angle adjustment (0 - 8°) of each satellite with only one hand
SmartLink+® enables cable-free connection of column module and satellite
Configurable via dedicated MAILA Quick Setup App (iPadOS)
LogoLink®: Wireless antennas integrated in the LD logo for wireless app connection
Description

MAILA M is a full-blown, full-range stereo system that sets new standards with its flexibility In the M configuration, MAILA delivers a total output of 10 kW and combines several acoustic concepts into a sound reinforcement solution that is unique to date: bandpass subwoofer with cardioid function, column element with integrated DSP amplifier and coaxial satellite with line array functionality.

The basis of MAILA M is the 2.5 kW 2x15'' high-performance subwoofer in bandpass design with its newly developed SysCore® DSP that delivers a massive and powerful bass foundation. On top of the subwoofer sits the MAILA COL full-range column module, sporting 4x 6.5'' woofers for an extended low-mid range as well as a 4-channel DSP amplifier (2.5 kW) with SysCore® DSP powering the MAILA SAT satellites via the cable-free SmartLink+® rails.

The MAILA SAT satellites sit on top of the COL column element in an elegant unibody aluminium housing. Based on Advanced WaveAhead® technology, each SAT has five 1'' tweeters placed in front of a 6.5'' midrange driver which are coupled without interference via the SonicGuide® (two combined waveguides). Furthermore, despite the satellite's compact dimensions, the integrated passive membrane provides extended punch down to 100 Hz. The result is a classic line array dispersion pattern with an impressive throw due to the height of the ground stack setup of up to 3 metres.

On the back of the housing of each MAILA SAT is a rotating handle which hides a groundbreaking innovation: via the patented EasySplay® mechanism, users can adjust the inclination of each individual satellite continuously from 0° to 8° in the blink of an eye. The angle can be adjusted with just one hand, even under load. In this way, every MAILA system offers a uniquely flexible concept for adapting the sound coverage to any sound reinforcement situation at any time.

MAILA is not just "one" product, but a scalable sound reinforcement system that sets new standards in its diversity and flexibility. If required, the MAILA COL column module can control up to eight MAILA SAT and, in addition to the ground stack variant, also enables flown configurations with a separately placed subwoofer. In this way, MAILA M covers small festival stages and clubs just as effortlessly and precisely as conferences or lectures in the context of corporate events.

Directly on the device or via the free MAILA app (iPadOS), every MAILA system can be adjusted quickly, easily and in detail and supplied with software updates wirelessly. Based on the integrated LogoLink® Wireless Connection, operating ranges of up to 30 metres under practical conditions are no problem for MAILA. Once connected, the app automatically detects the available MAILA components and enables the system to be set up quickly and easily - including calculation of the SAT angles - in the run-up to an event. The highlight: the wireless antennas are invisibly integrated into the LD logos (LogoLink®).

With MAILA, LD Systems presents a new sound reinforcement concept with which users do not need to commit to one system only. MAILA has many faces.

Scope of delivery includes: 8x MAILA SAT satellite, 2x MAILA COL column, 2x MAILA SUB subwoofer, 2 x MAILA FC2, 2 x MAILA SUB CB, 2 x MAILA SUB PC and 4 x power cable.

Specifications
General
Product type PA system
Type Set
Components 8 x MAILA SAT, 2 x MAILA COL, 2 x MAILA SUB
Total Height 2920mm (Vertikal subwoofer)
Dispersion (H x V) 100° x Curvature dependent
Accessories (included) 2 x MAILA FC2, 2 x MAILA SUB CB, 2 x MAILA SUB PC, 4 x power cable
System Power (RMS) 10000 W
Frequency response (-6dB) 34 Hz - 20 kHz
Weight 293,2 kg
LDMAILASAT - LD Systems MAILA M Passive Array Satellite Speaker
Product type MAILA Array Satellite
Type Passiv
Midrange size 5 x 1" Titanium Dome Tweeter
Woofer dimensions 1 x 6.5 "
Woofer magnet Neodymium
Woofer brand Custom-made
Load rating (AES) 175 W / 50 W
Woofer voice coil 1.8 "
Dispersion (H x V) 100° x 8° Nominal Directivity
Woofer voice coil (mm) 45 mm
Frequency response (-6dB) 100 Hz - 20000 Hz
Speaker connections SmartLink+®
Housing material Die-cast aluminium
Controls EasySplay® angle adjustment
Cabinet surface Powder-coated
Handles 1
Width 205 mm
Height 234 mm
Depth 226 mm
Weight 7,54 kg
LDMAILACOL - LD Systems MAILA M 4 x 6.5" Powered Column Speaker + Power Amplifier for up to eight Satellites
Product type MAILA Column
Type Powered
Low/mid driver dimensions 4 x 6.5 "
Woofer size 16.51 mm
Woofer magnet Neodymium
Woofer brand Custom-made
Woofer voice coil 2 "
Woofer voice coil (mm) 50 mm
Amplifier Class D
System Power (RMS) 2500 W
Frequency response (-6dB) 105 Hz - 500 Hz
Protection circuits thermal overload
Input impedance 20000 Ohm(s)
Controls Rotary/push encoder
Indicators Signal
Line inputs 1
Line input connectors XLR
Line outputs 1
Line output connectors XLR
Speaker output connections SmartLink+®
Wireless Connectivity LogoLink® for App Control
Operating voltage SMPS
Power consumption (max.) 800 W
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz
Operating Temperature 0 - 40 °C
Relative Humidity < 80 %, not condensing
Cabinet material Die-cast aluminium
Cabinet surface Powder-coated
Cabinet construction Bass Reflex
Mounting EasyMount+®
Handles 2
Width 205 mm
Height 1028 mm
Depth 354 mm
Weight 34,44 kg
HEADLINE 1 DSP characteristics
Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
LDMAILASUB - LD Systems MAILA M 2 x 15" Powered Bandpass PA Subwoofer
Product type MAILA Subwoofer
Type Powered
Low/mid driver dimensions 2 x 15 "
Woofer size 2 x 381 mm
Woofer magnet Neodymium
Woofer brand Custom-made
Woofer voice coil 4 "
Woofer voice coil (mm) 100 mm
Amplifier Class D
System Power (RMS) 2500 W
Frequency response (-6dB) 33 Hz - Preset
Protection circuits thermal overload
Input impedance 20000 Ohm(s)
Controls Rotary/push encoder
Indicators Signal
Line inputs 1
Line input connectors XLR
Line outputs 1
Line output connectors XLR
Wireless Connectivity LogoLink® for App Control
Operating voltage SMPS
Power consumption (max.) 1300 W
Operating voltage 100 V - 240 V AC / 50 - 60 Hz
Operating Temperature 0 - 40 °C
Relative Humidity < 80 %, not condensing
Cabinet material 18 mm Birch Plywood
Cabinet surface Polyurea
Cabinet construction Quarter Wave Horn Bandpass
Handles 6
Width 540 mm
Height 934 mm
Depth 803 mm
Weight 90 kg
HEADLINE 1 DSP characteristics
Bit depth AD/DA converter 24 bit
Sampling frequency 48 kHz
