STINGER 28 A G3 WMB 1
Tilt/ Swivel Wall Mount for LDEB282AG3
5 fotos
STINGER 28 A G3 WMB 1
Tilt/ Swivel Wall Mount for LDEB282AG3
Compartir
Número de artículo: LDEB282AG3WMB1N.º de artículo LDEB282AG3WMB1
Descripción

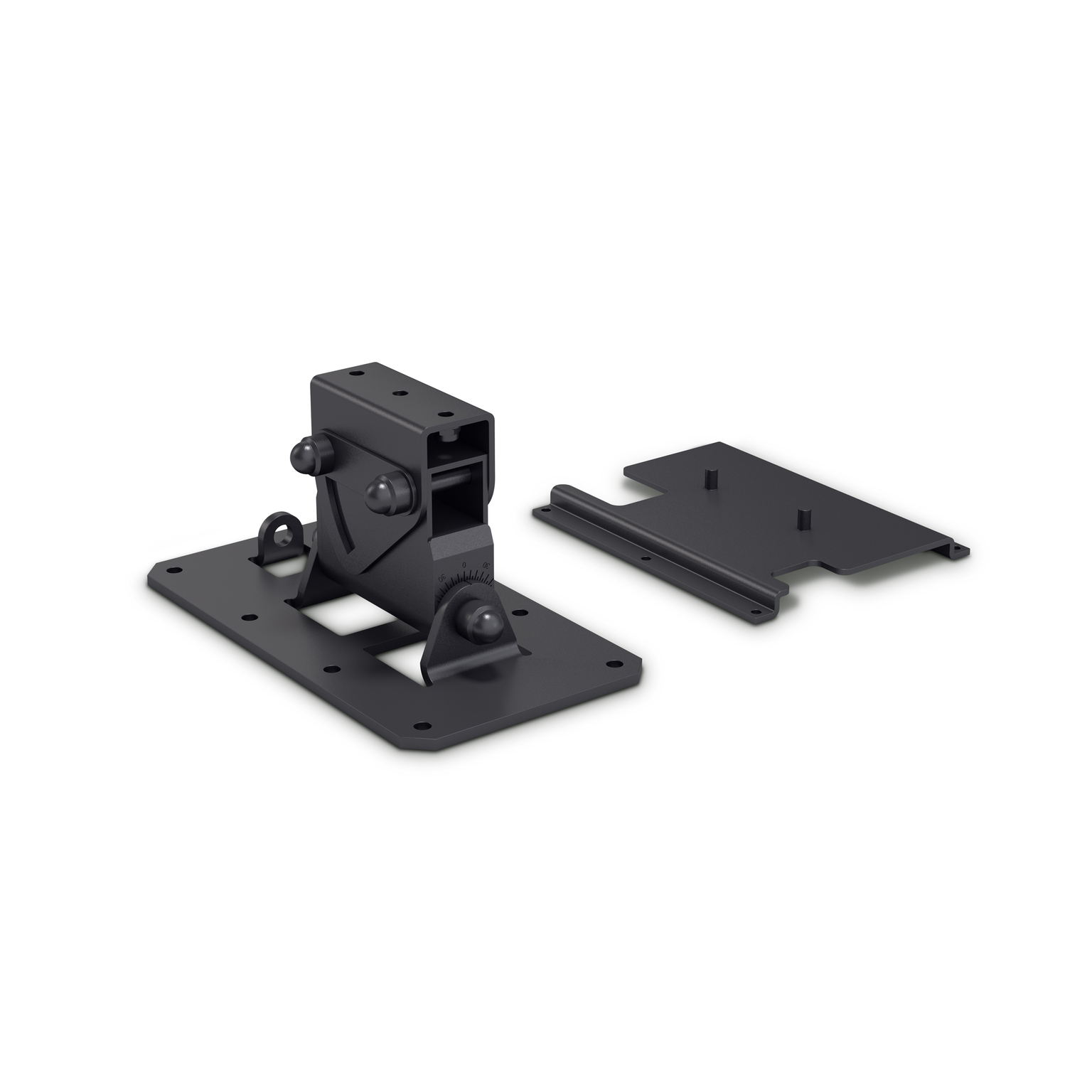

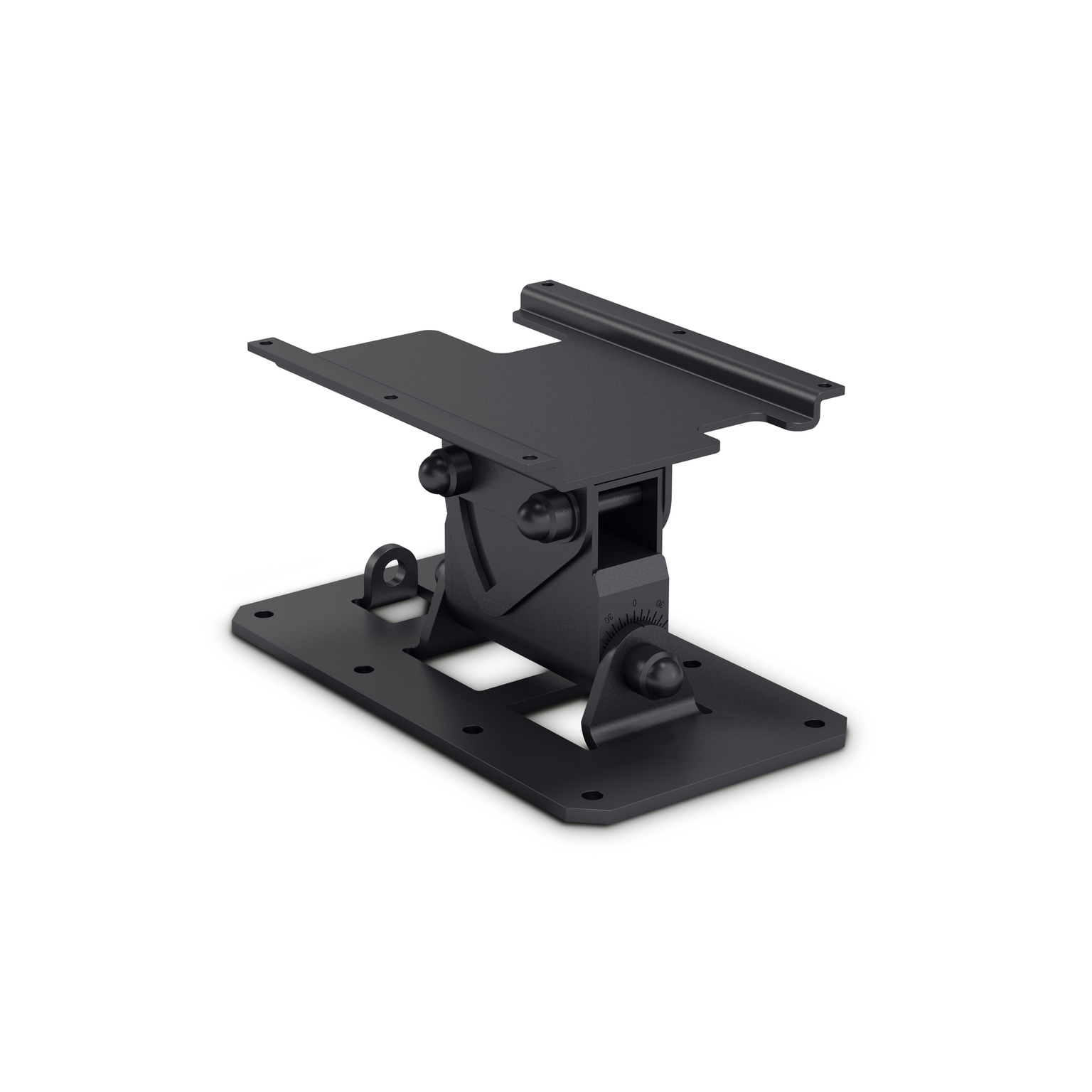

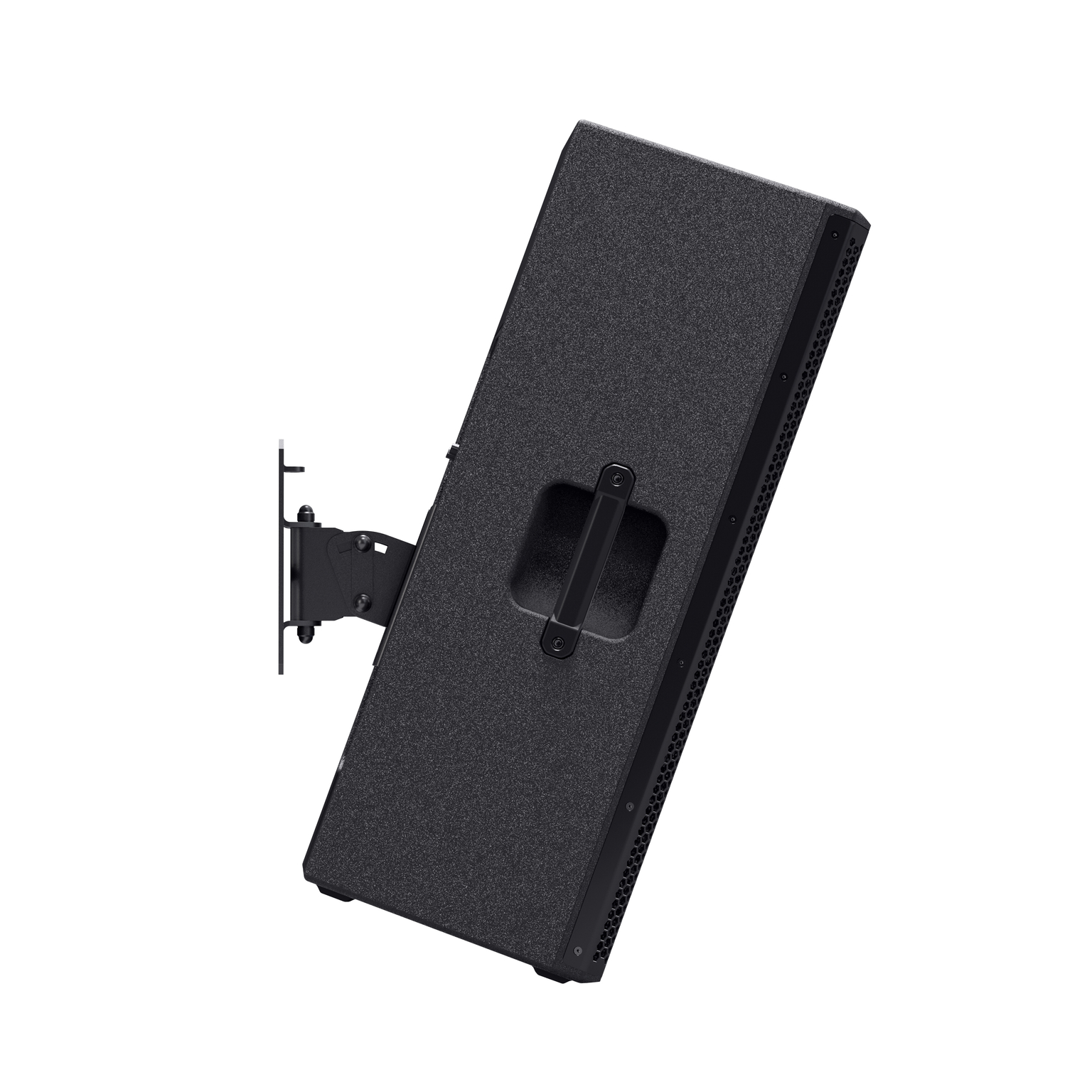

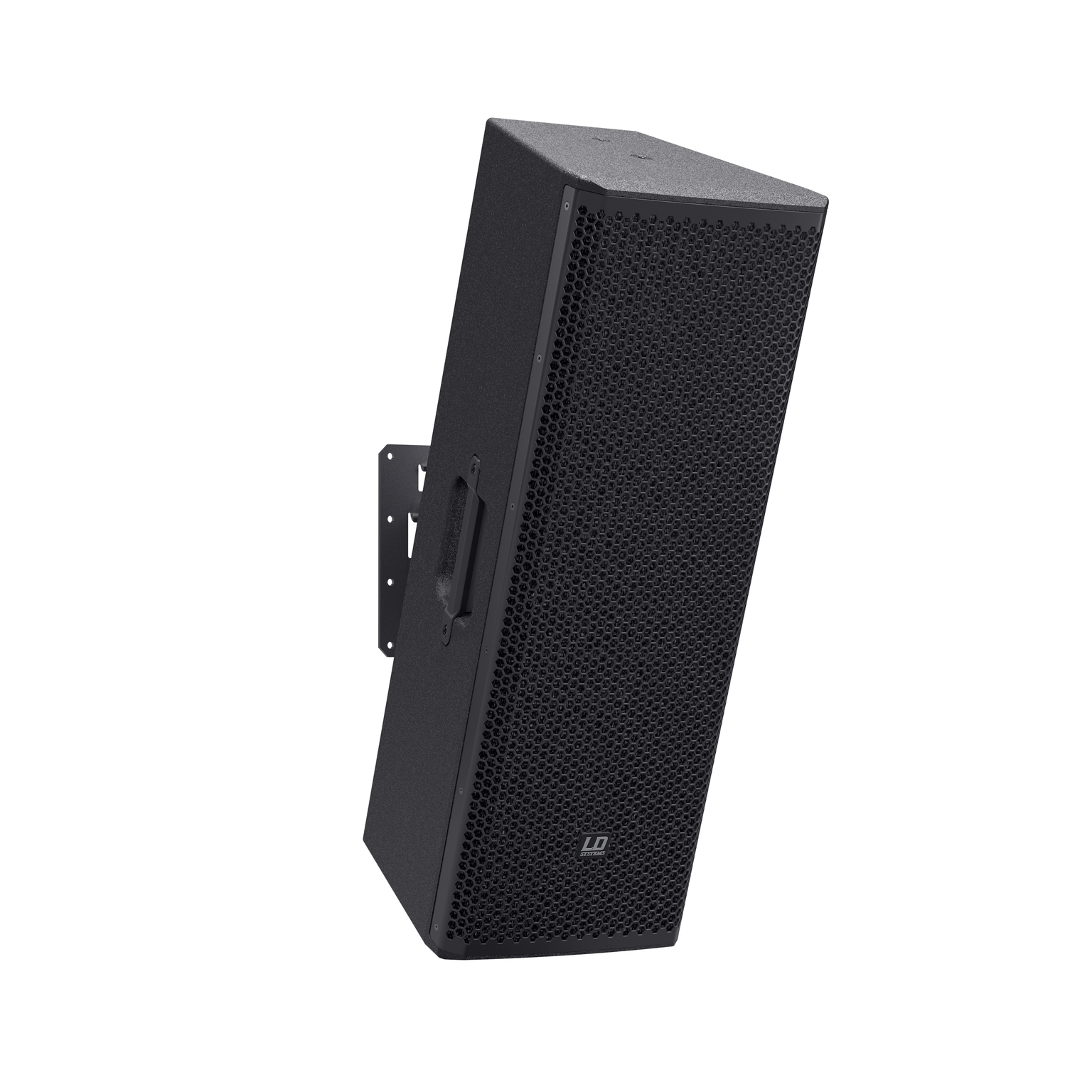

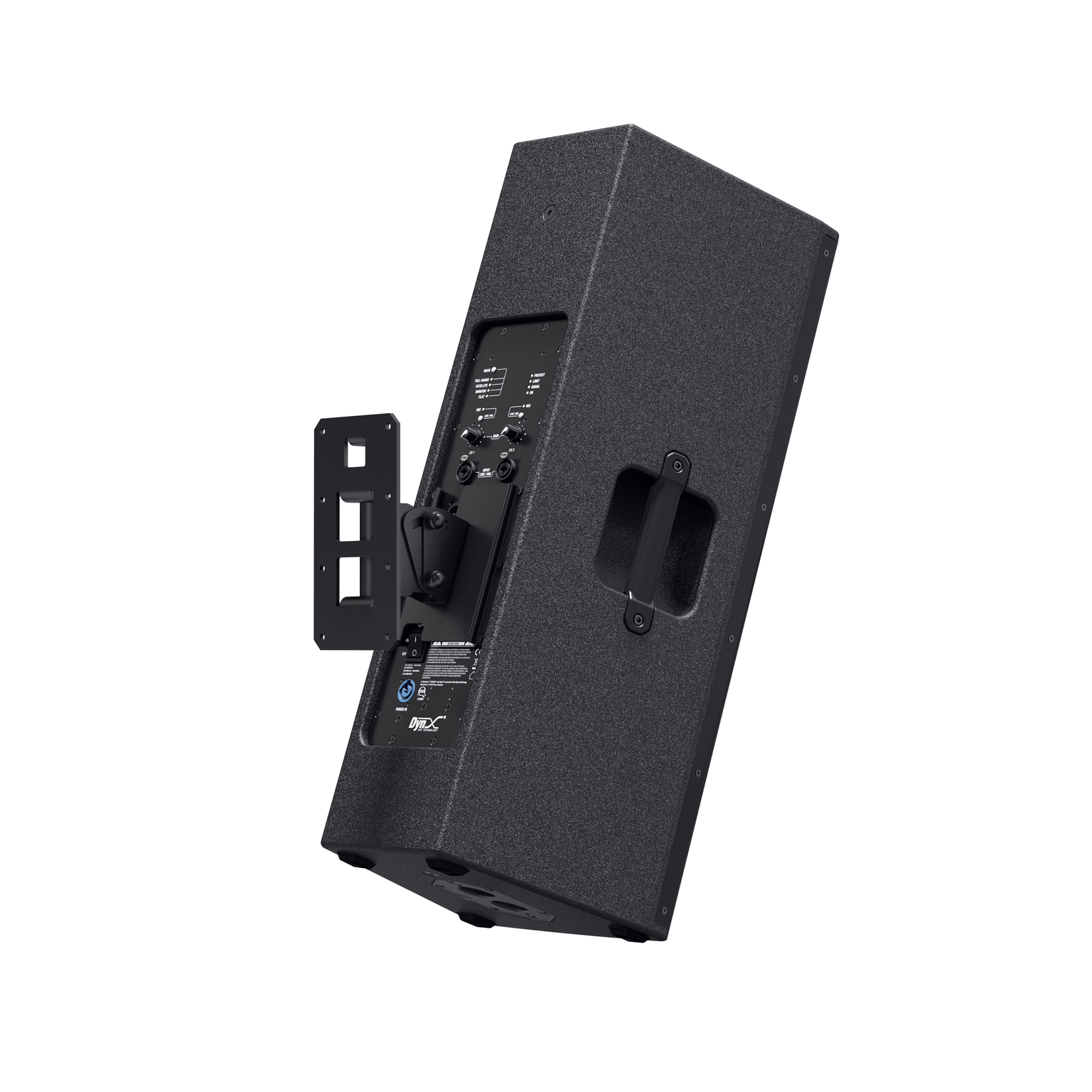

This wall bracket makes it possible to precisely position active STINGER® 28 A G3 models. It is made with powder-coated steel, it holds up to 21 kg and it can be precisely positioned both horizontally and vertically. Its swivel range is 160°, the downward tilt of the loudspeaker is continuously adjustable up to 40°. The solid wall panel is 5 mm thick and equipped with an eyelet for safety cables in accordance with BGV C1.
Especificaciones
| Tipo de producto | Accesorios para altavoces de PA |
|---|---|
| Material | Acero |
| Superficie | Texturizada |
| Color | negro |
| Potencia | 21 kg |
| Anchura | 130 mm |
| Altura | 220 mm |
| Fondo | 173 |
