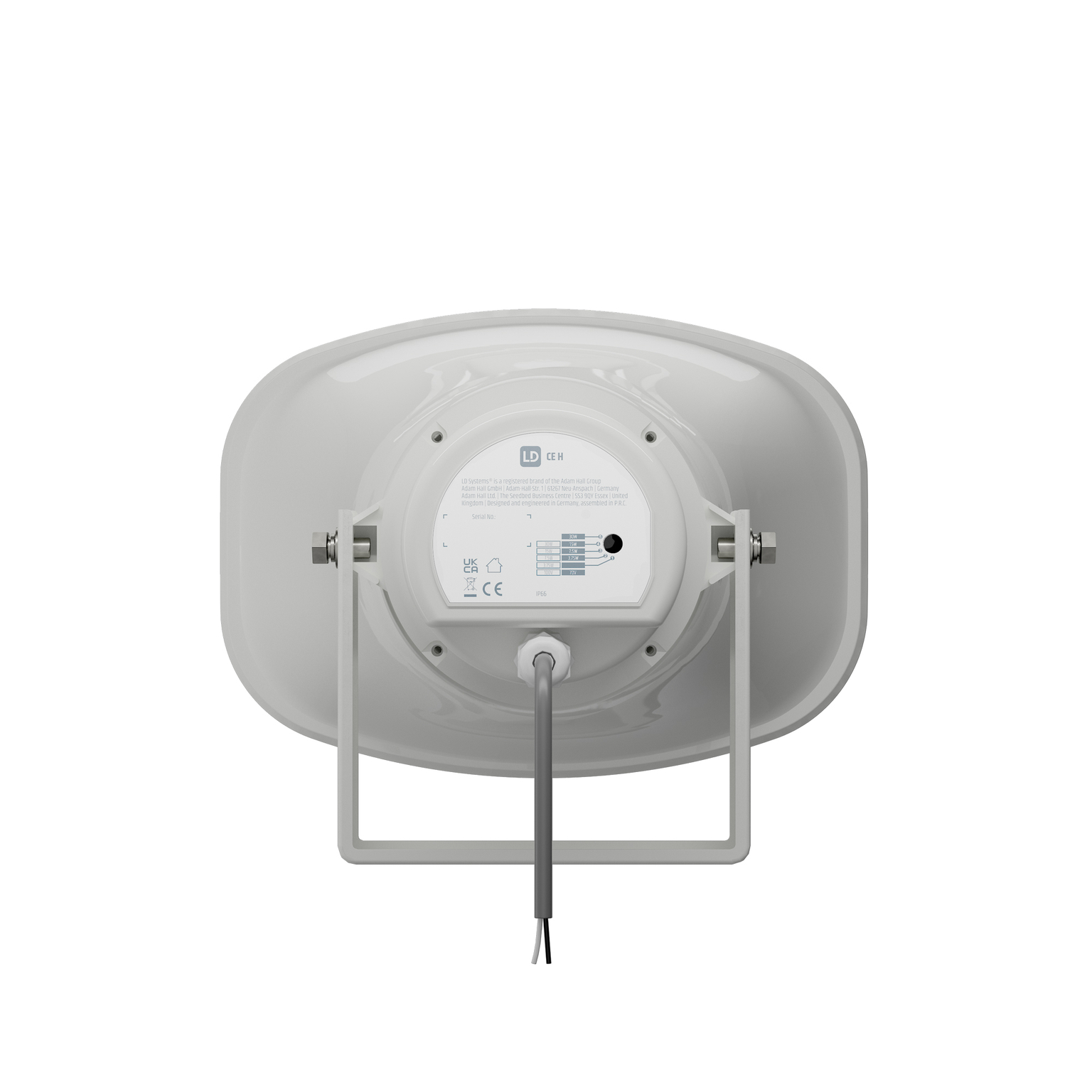

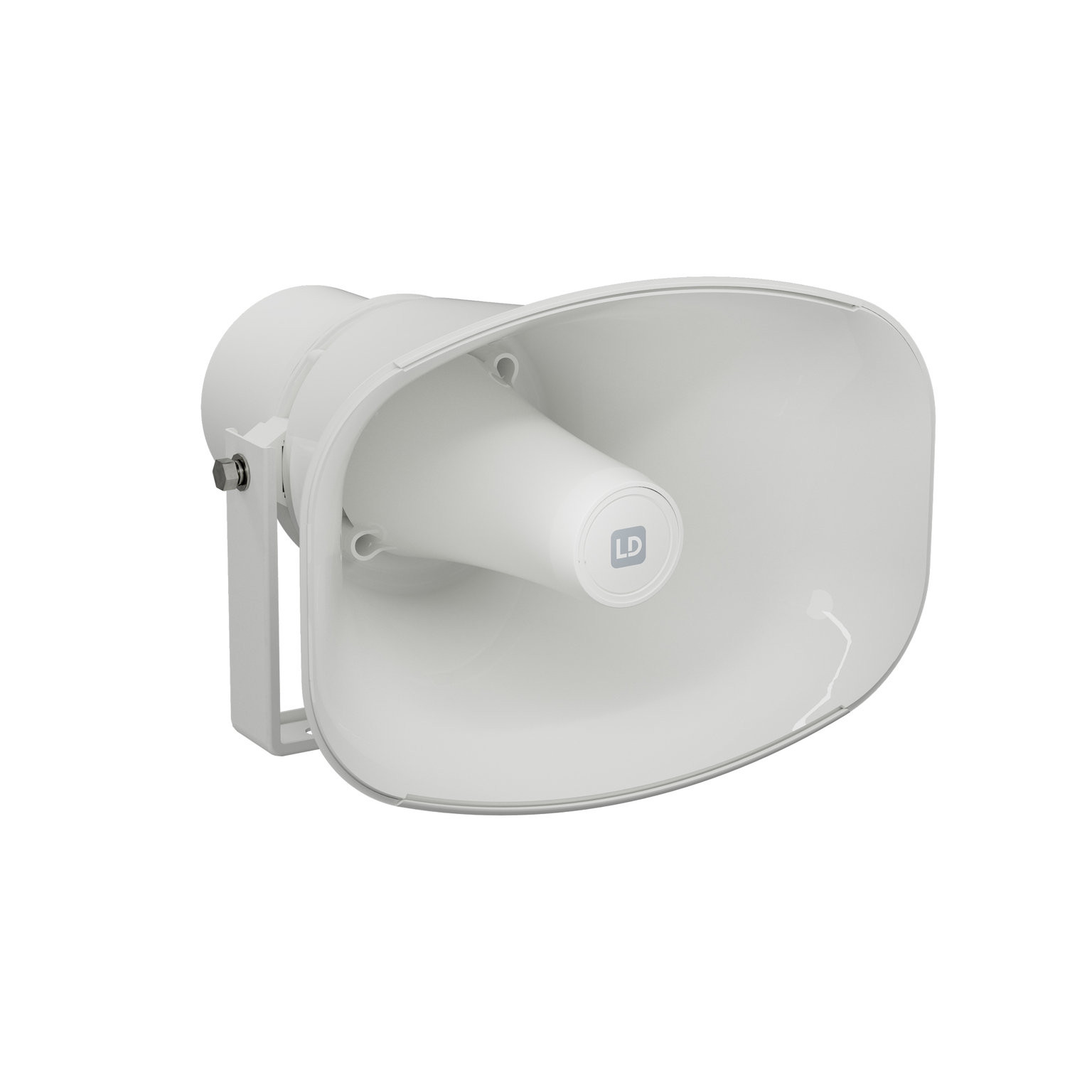

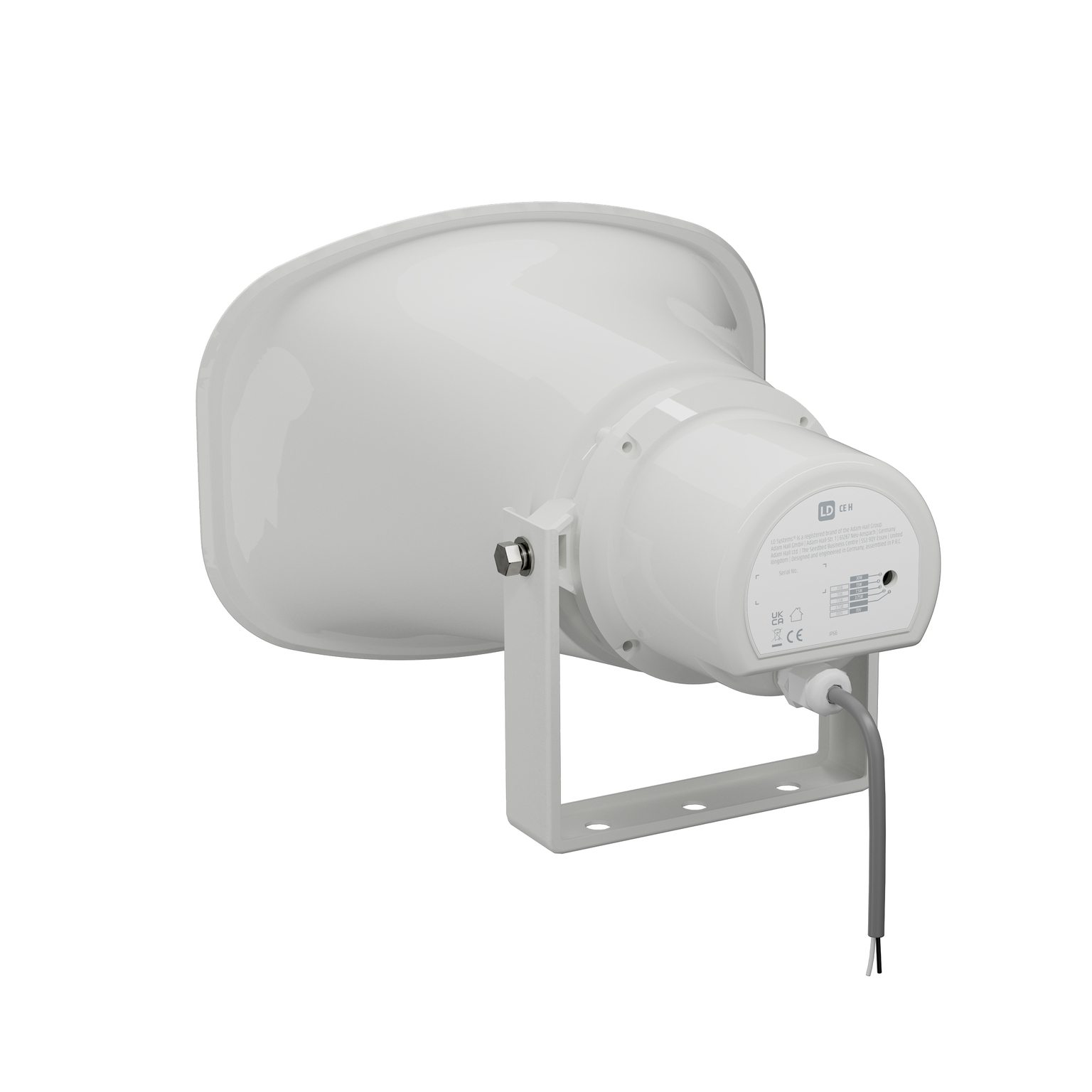

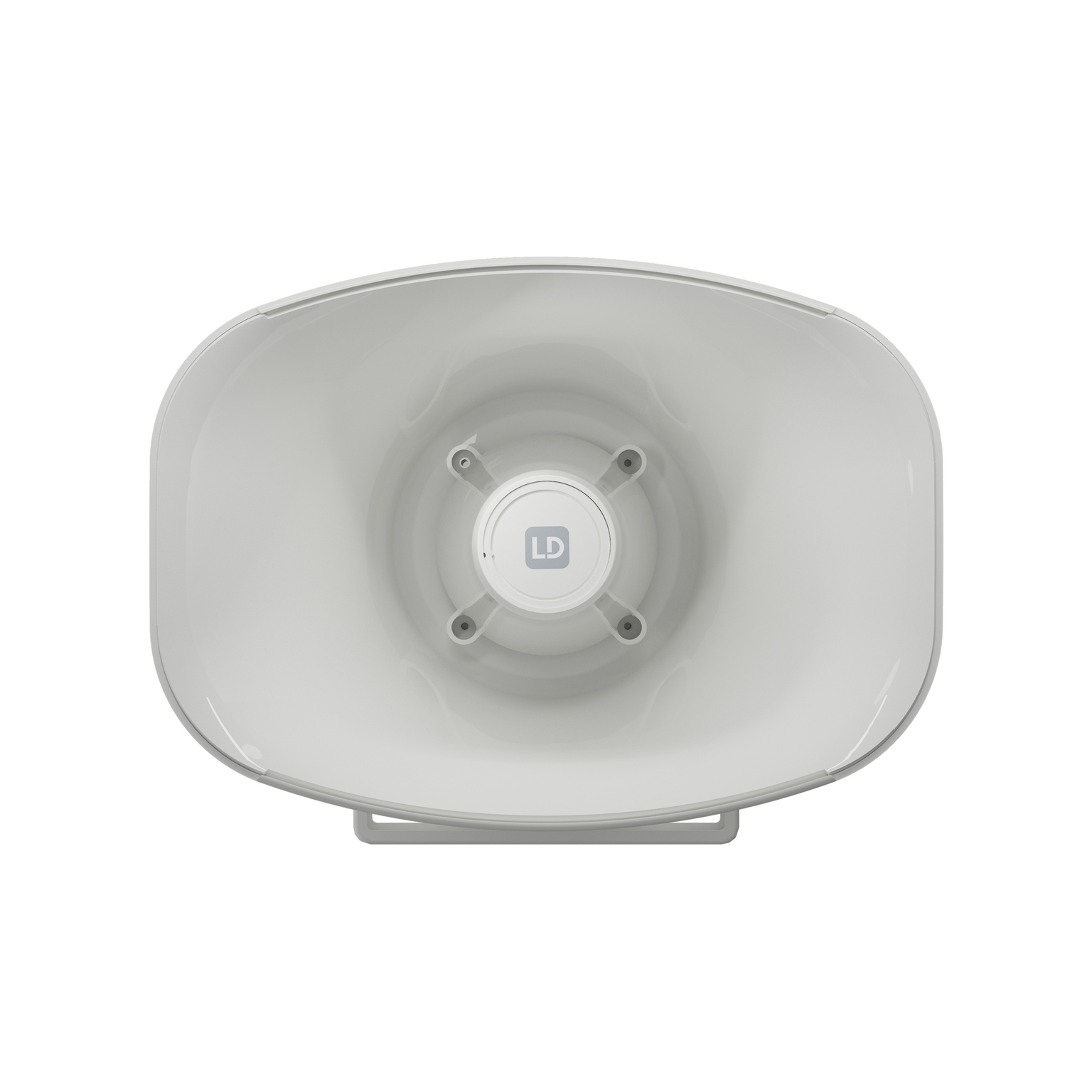

CE H30
Outdoor Horn Loudspeaker
4 Photos
CE H30
Outdoor Horn Loudspeaker
Share
Article number: LDCEH30Item No. LDCEH30
- 30W rated power
- 8 Ohm, 70V and 100V line
- 3.75, 7.5, 15 and 30W power taps
- IP66 weatherproof
- Built in mounting bracket
Description
Features
- 30W rated power
- 8 Ohm, 70V and 100V line
- 3.75, 7.5, 15 and 30W power taps
- IP66 weatherproof
- Built in mounting bracket
Combining high sound output with durable construction the CE H30 horn loudspeaker delivers intelligible speech over long distances.
Made of ABS, it is fully IP66 weatherproofed with high impact resistance for the most demanding outdoor environments. It's fitted with a 180-degree swivel U-bracket for easy mounting. With a power rating of 30W and a frequency response of 420Hz - 6kHz, it projects sound with ease.
Specifications
| Type (active/passive) | Passive |
|---|---|
| Power handling (RMS) | 30 W |
| SPL (1 W/1 m) | 113 dB |
| Frequency response | 420 Hz - 6000 Hz |
| Power tappings (100 V) | 30 W, 15 W, 7.5 W, 3.75 W |
| Power tappings (70 V) | 30 W, 15 W, 7.5 W, 3.75 W, 1.9 W |
| Impedance | 8 Ω |
| Colour | White |
