CURV 500 SLA T W

Curv 500® 70 / 100 V SmartLink® Adapter White

CURV 500 SLA T W-1
CURV 500 SLA T W-2
CURV 500 SLA T W-3
2 Photos ,

CURV 500 SLA T W

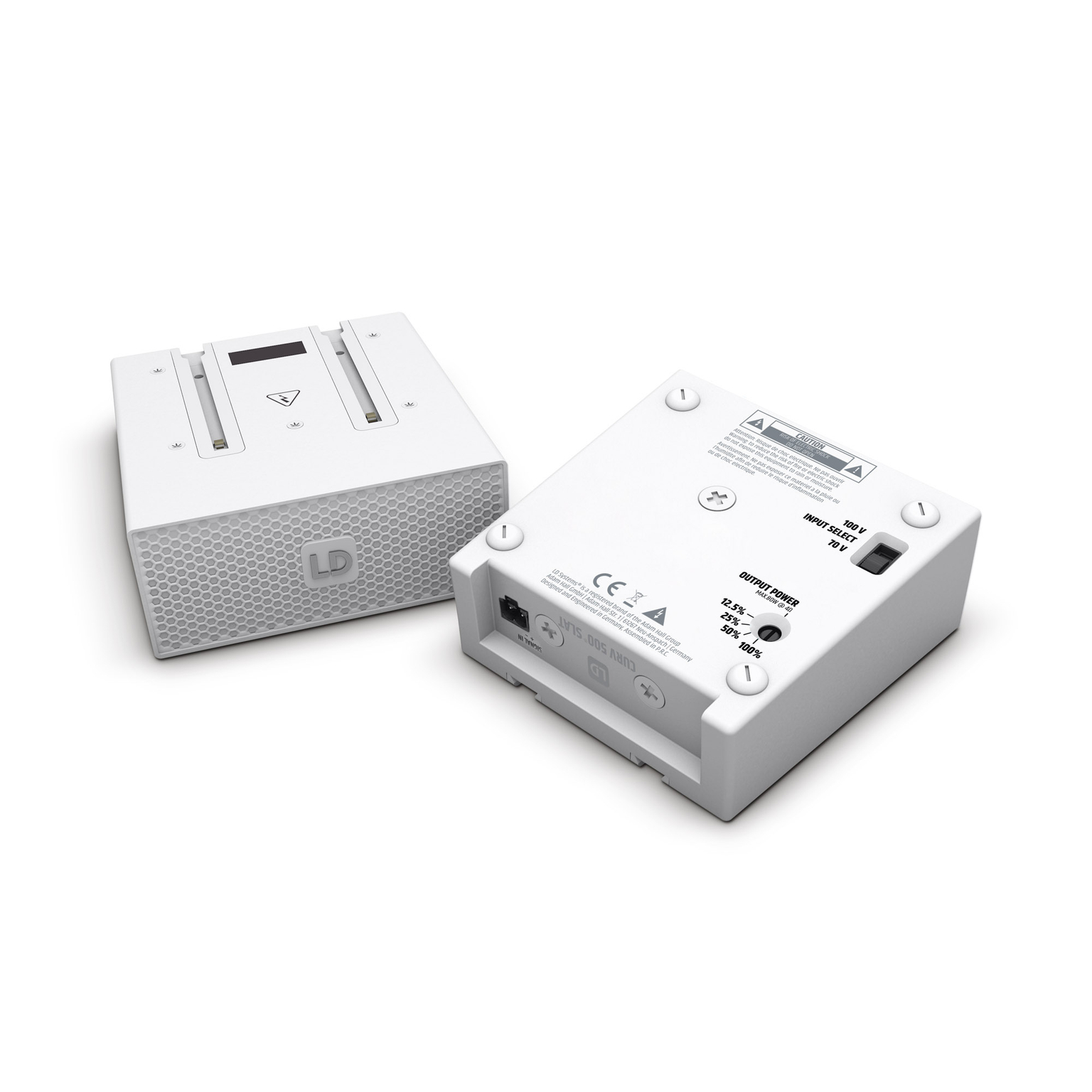

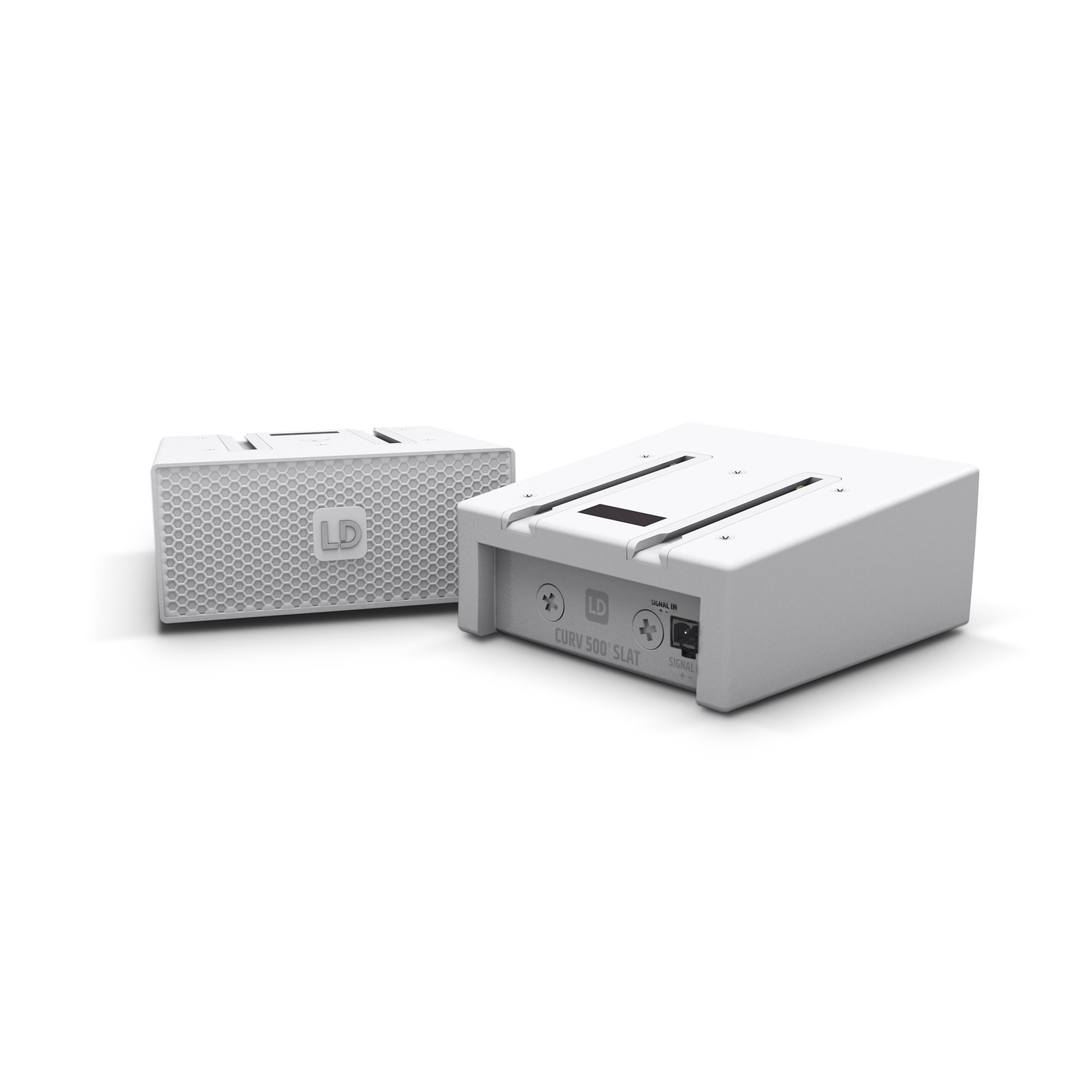

Curv 500® 70 / 100 V SmartLink® Adapter White

Share
Article number: LDCURV500SLAWTItem No. LDCURV500SLAWT
  • 70 / 100 V SmartLink® adapter for up to 4 LD CURV 500® satellites.
  • Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
  • 2-pin input for screw connector
  • Switchable for 70 or 100 V operation
  • Special accessories for mounting on walls and ceilings
More Features

Description

Features
  • 70 / 100 V SmartLink® adapter for up to 4 LD CURV 500® satellites.
  • Integrated transformer with 10, 20, 40 and 80 W output taps @ 4 ohms
  • 2-pin input for screw connector
  • Switchable for 70 or 100 V operation
  • Special accessories for mounting on walls and ceilings

This version of the SmartLink® adapter allows up to 4 Curv 500® satellites to be operated as an ELA system with 70 or 100 volts per adapter. It has an input for a 2-pin screw connector. The integrated transformer offers a selection of four 10 to 80 W output taps. The adapter is available in black (LDCURV500SLAT) or white (LDCURV500SLAWT); wall and ceiling holders from the Curv 500® accessory range make for straightforward installation.

Specifications

Product typePA Complete Systems Accessories
TypeSmartlink® Adapter
MaterialDie-cast aluminium
SurfacePowder coated
Connectorsscrew-/plug-in terminal 2 pole
Colorwhite
Width122 mm
Height57 mm
Depth122 mm
FeaturesSmartLink® System, 2x M6 thread for optional wall/truss mount, 4 x rubber feet for desktop use
