New
MAUI® G3 Series
MAUI® 66 G3 SUB CB
Castor board for MAUI 66 G3 subwoofer
- Material: Birch multiplex
- Coating: Polyurea
- Colour: Black
MAUI® 66 G3 SUB
Active 18" extension subwoofer for MAUI® 66 G3
2 Photos ,
New

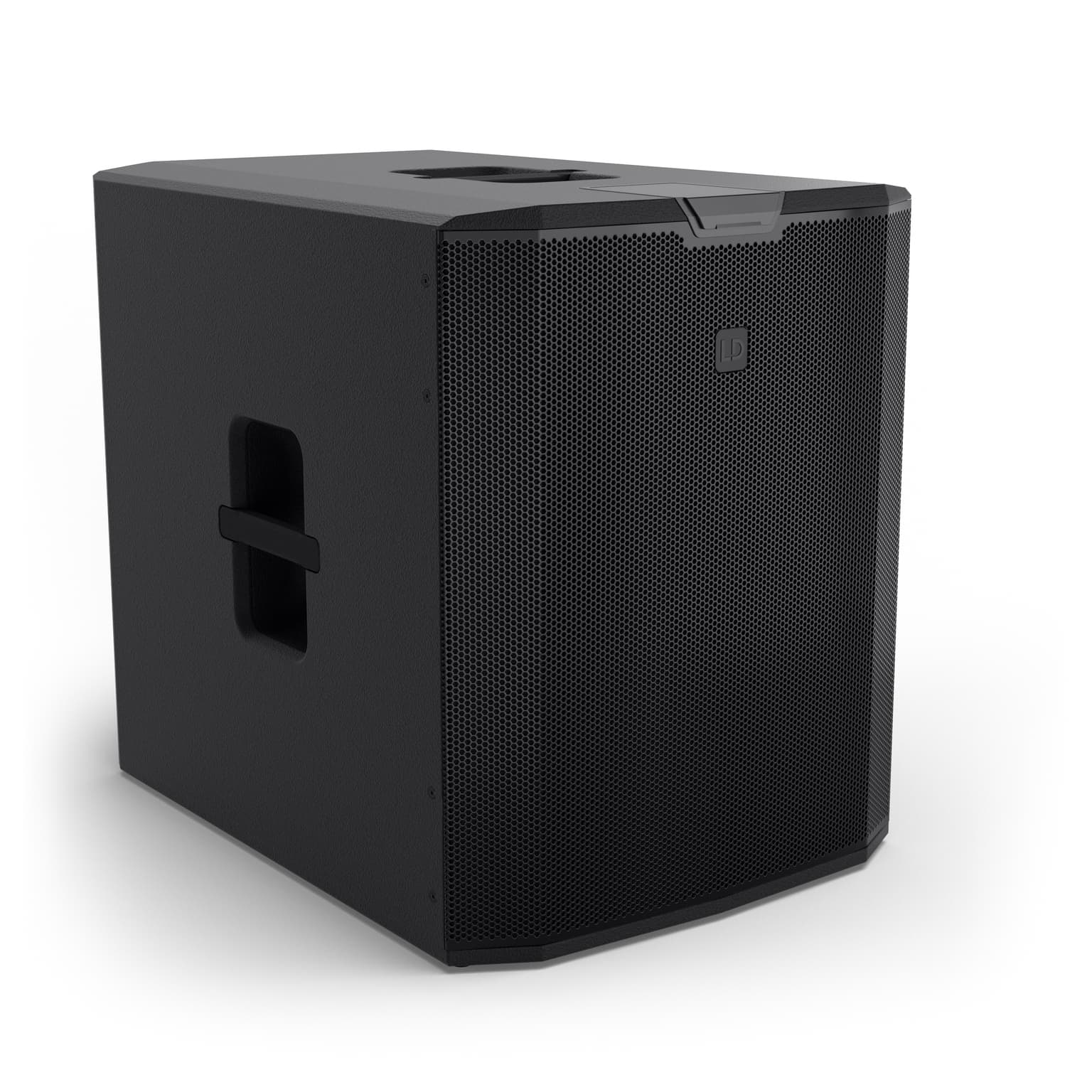

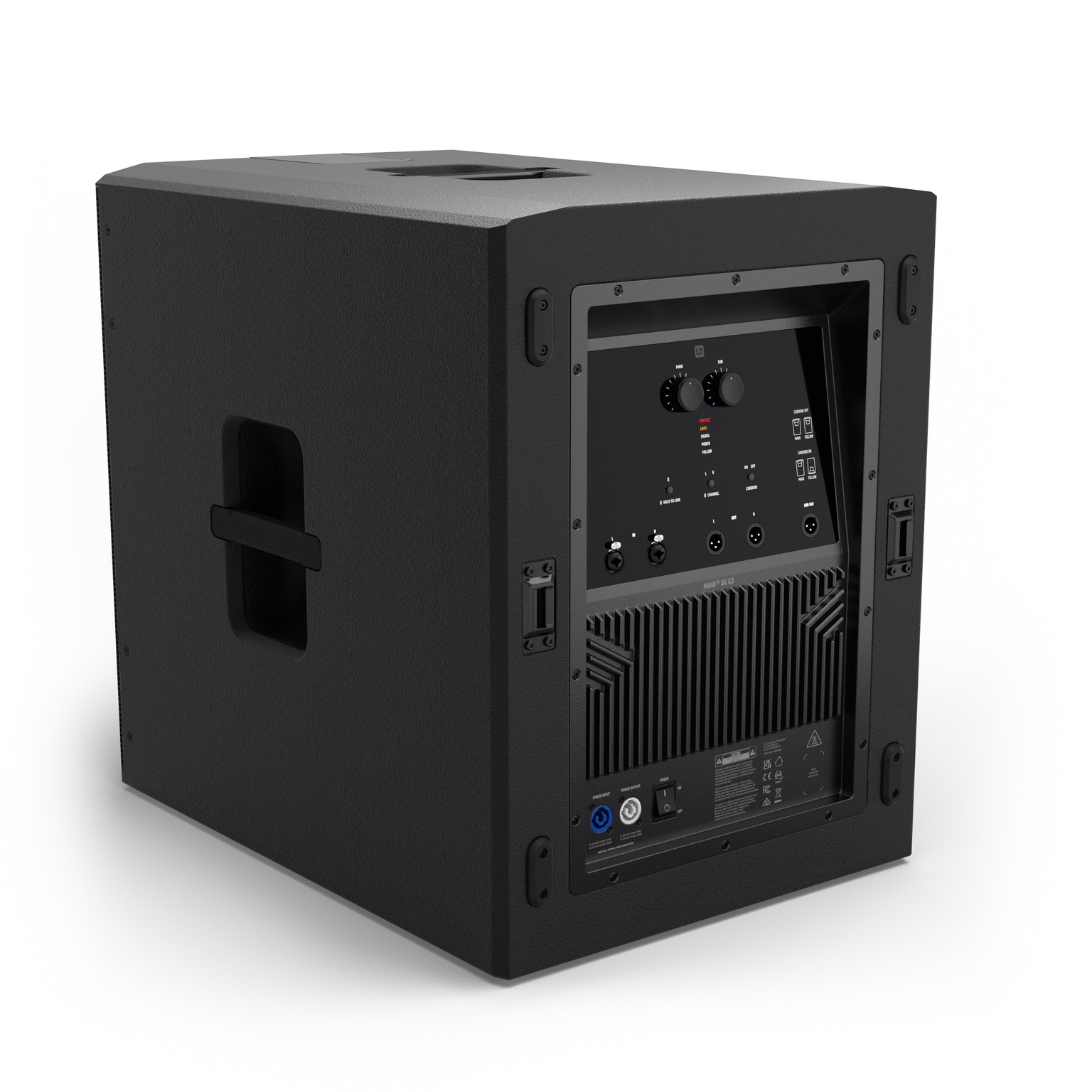

MAUI® 66 G3 SUB
Active 18" extension subwoofer for MAUI® 66 G3
Model:
Share
Article number: LDM66G3SUBItem No. LDM66G3SUB
- 18" high-power bass reflex subwoofer with low-end down to 28 Hz
- Designed to complement the MAUI® 66 G3, with a dedicated preset for cardioid subwoofer setups
- Airflow-optimised bass reflex design for extended low-frequency response and reduced port noise
- DynX® DSP (Gen.2) with advanced limiters for distortion-free sound even at maximum volume
- Rugged birch plywood cabinet with a durable polyurea coating
- Shockproof front grille for ultimate speaker protection
- Four ergonomic carrying handles for easy transport and positioning
Description
Features
- 18" high-power bass reflex subwoofer with low-end down to 28 Hz
- Designed to complement the MAUI® 66 G3, with a dedicated preset for cardioid subwoofer setups
- Airflow-optimised bass reflex design for extended low-frequency response and reduced port noise
- DynX® DSP (Gen.2) with advanced limiters for distortion-free sound even at maximum volume
- Rugged birch plywood cabinet with a durable polyurea coating
- Shockproof front grille for ultimate speaker protection
- Four ergonomic carrying handles for easy transport and positioning
The MAUI® 66 G3 SUB is the extension subwoofer for your MAUI® 66 G3, providing additional bass output or enabling a cardioid subwoofer configuration.
More bass for your crowd
To achieve this, position the MAUI® 66 G3 SUB facing forwards alongside your MAUI® system, leaving the cardioid preset deactivated. This gives your sound an even more powerful low-end foundation.
Controlled bass on stage
To create a cardioid subwoofer setup, position the additional subwoofer facing backwards next to your MAUI® 66 G3 and activate the cardioid preset. Working together with the system's subwoofer, this setup significantly reduces bass radiation behind the system while reinforcing bass towards the audience.
Quick and easy setup
With no column inserted, the MAUI® 66 G3 SUB automatically switches to FOLLOWER mode. To add the subwoofer to your system, simply connect the Sub-Out of your MAUI® 66 G3 or the System-Out of your MAUI® 66 G3 to the right input (R) of the FOLLOWER subwoofer using an XLR cable.
Specifications
| Type (active/passive) | Active |
|---|---|
| Peak output power | 3800 W |
| RMS output power | 1900 W |
| Amp class | Class D |
| Max. SPL peak | 135 dB |
| Low frequency limit (-6 dB, rel. Avg.) | 33 Hz |
| Low frequency limit (-10 dB, rel. Avg.) | 28 Hz |
| Crossover frequency | 200 Hz |
| Number of inputs | 2 |
| Input connector types | XLR combo socket |
| Number of outputs | 3 |
| Output connector types | XLR 3-pole male |
| Colour | Black |
