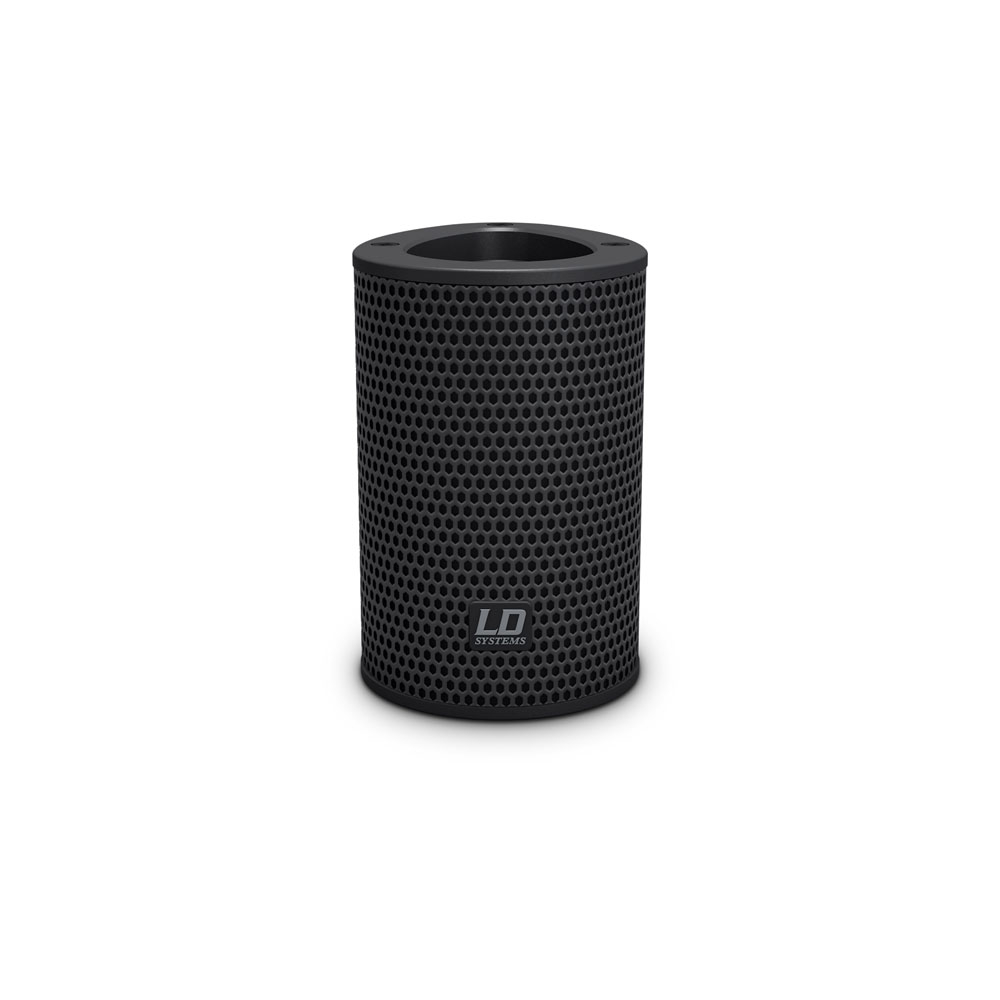

MAUI 5 GO CHARGING DOCK-3
MAUI 5 GO CHARGING DOCK-4
MAUI 5 GO CHARGING DOCK-5
MAUI 5 GO CHARGING DOCK-6
MAUI 5 GO CHARGING DOCK-7
MAUI 5 GO CHARGING DOCK-8
MAUI 5 GO CHARGING DOCK-9
MAUI 5 GO CHARGING DOCK-10
9 fotos ,

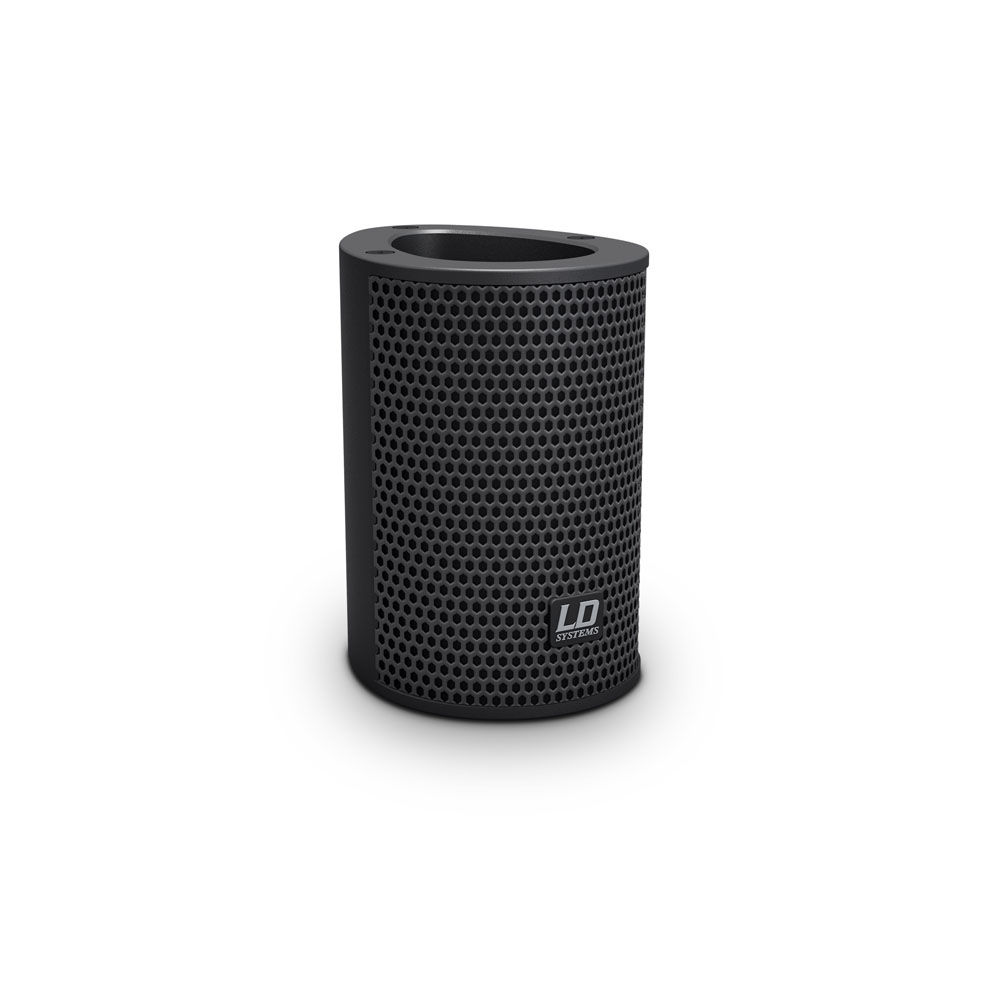

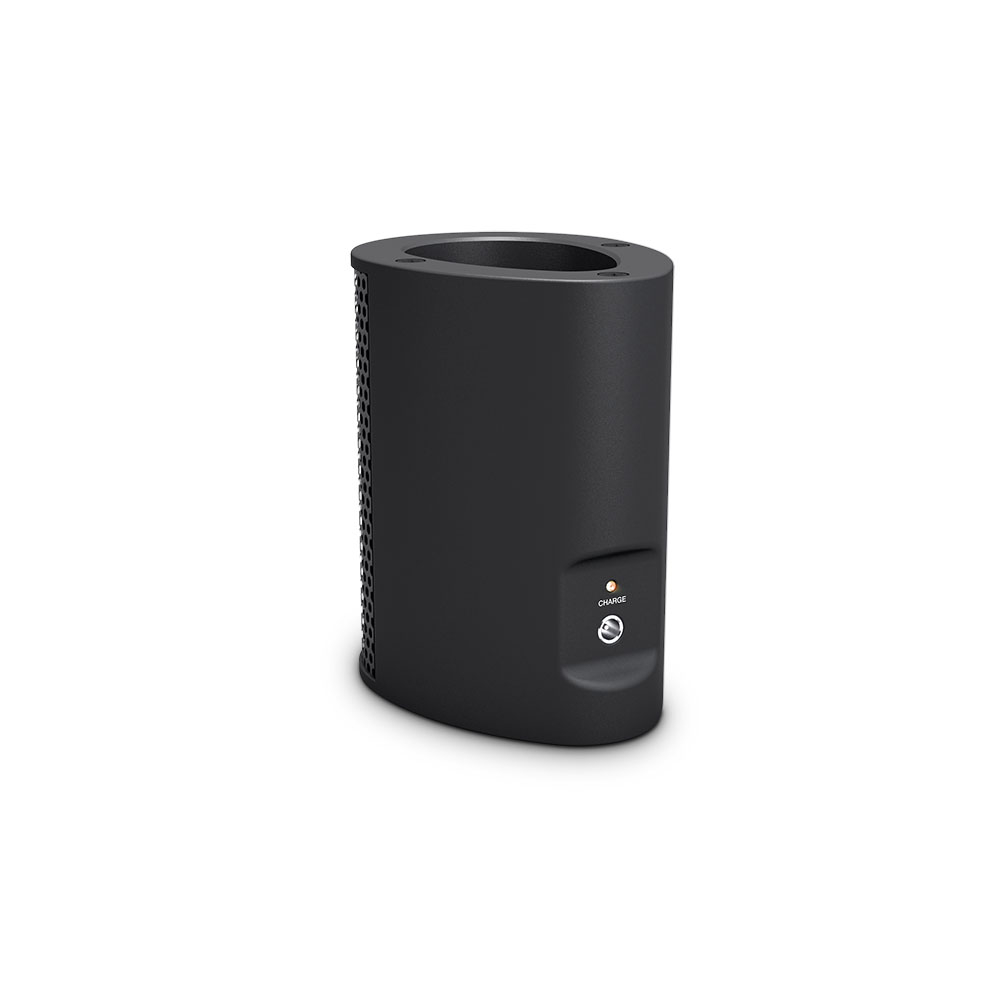

MAUI 5 GO CHARGING DOCK

Charging Dock

Compartir
Número de artículo: LDMAUI5GOCDN.º de artículo LDMAUI5GOCD

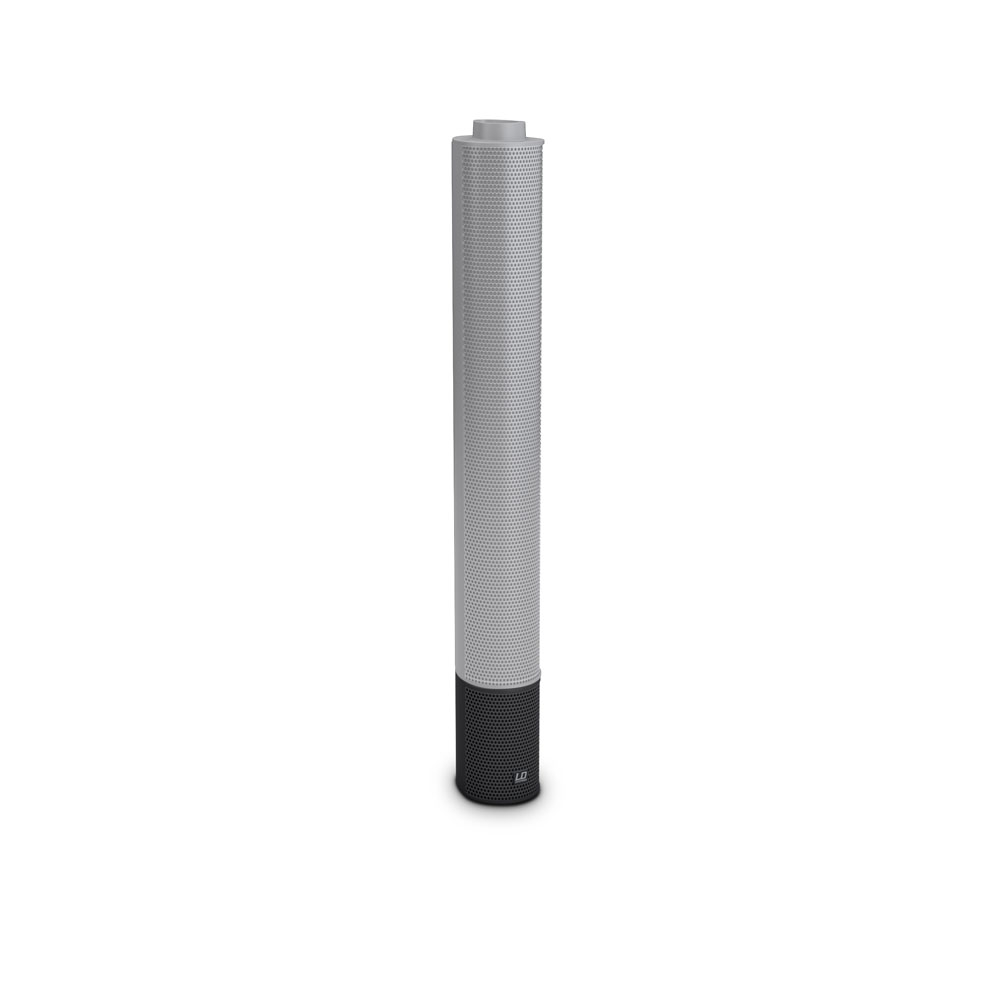

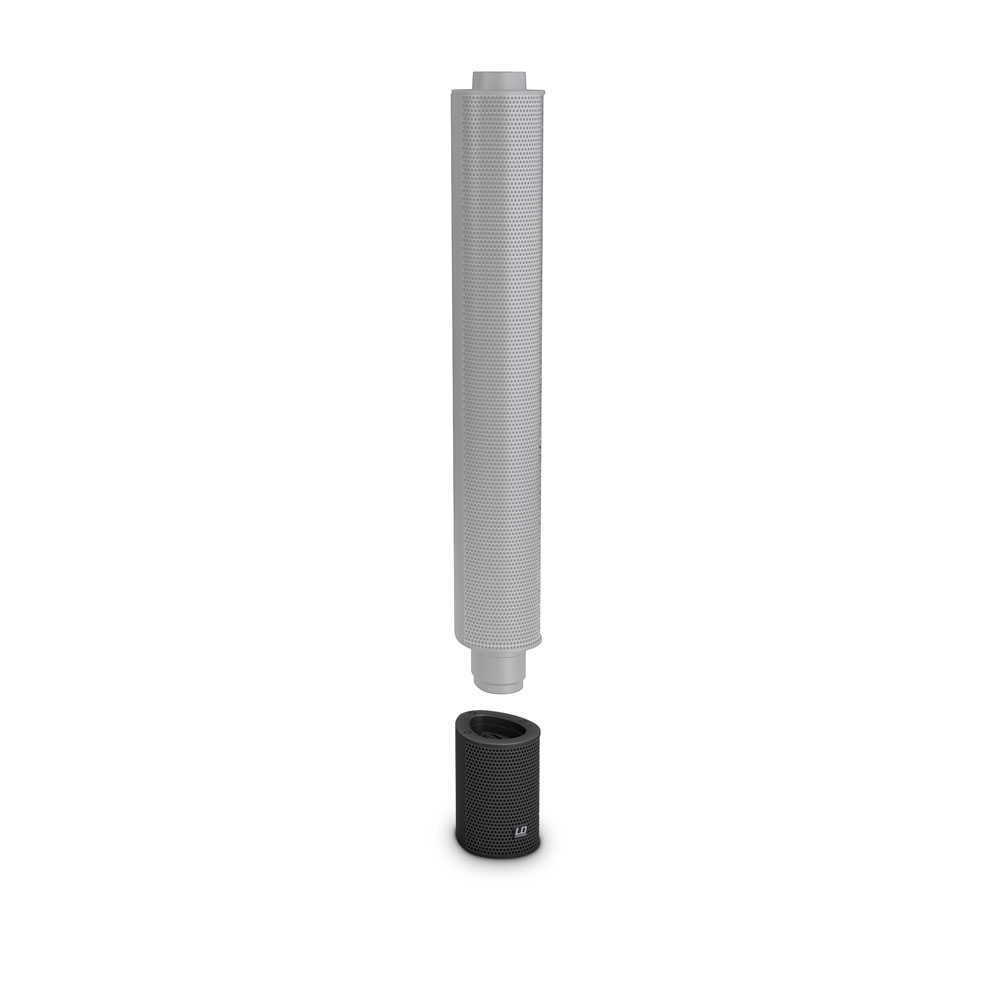

  • Design matches that of the battery column
  • Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h
  • Multi-voltage power supply included
Más características

Descripción

Características
  • Design matches that of the battery column
  • Very short charging times: 80% capacity = 2 h, 100% capacity = 3 h
  • Multi-voltage power supply included

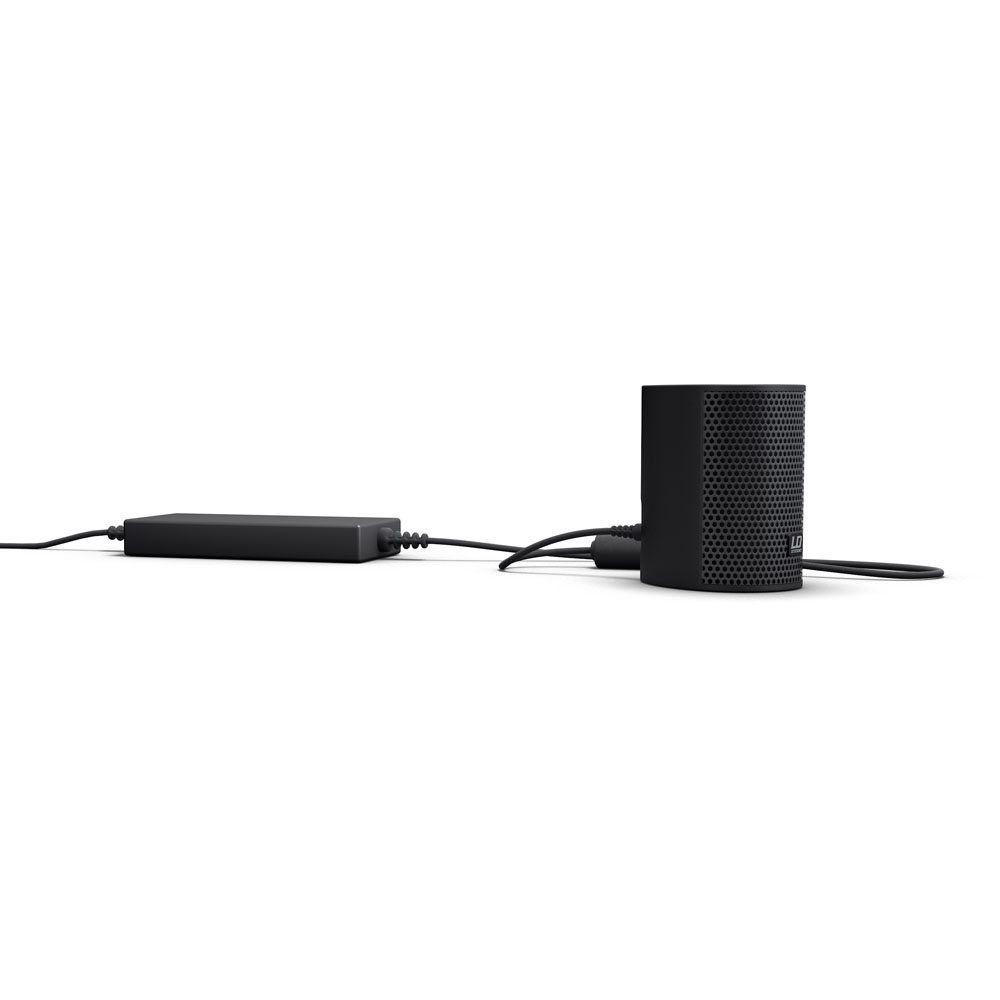

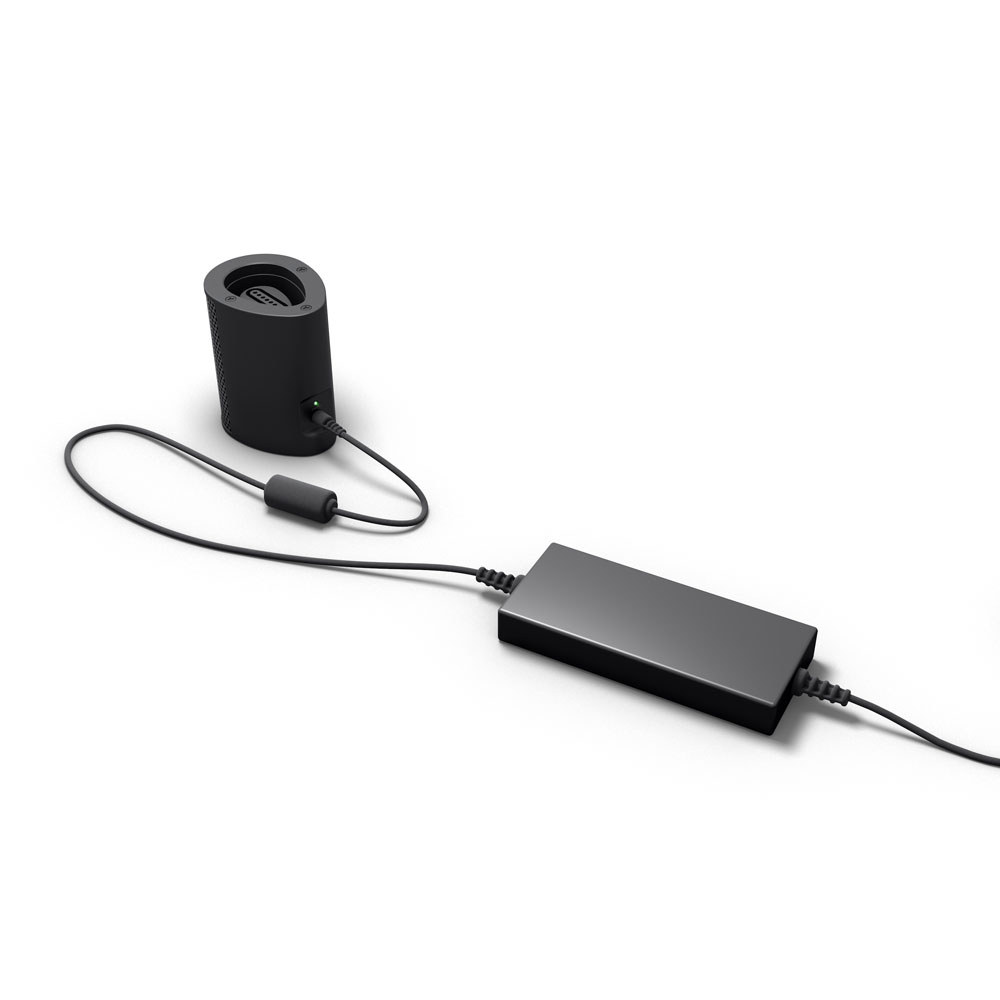

This charging dock is a flexible alternative to the MAUI 5 GO’s built-in smart charger. Featuring LD Systems’ Quick-Swap technology, it lets you recharge replacement battery elements while operating the MAUI 5 GO to provide virtually unlimited battery power. Charging takes only 2 hours to 80% and 3 hours to full capacity. The dock comes with a 100V - 240V multi-voltage power supply with overload, over-voltage and over-temperature protection. MAUI 5 GO replacement batteries are available as accessories.

Especificaciones

Tipo de productoAccesorios para amplificadores de PA
TipoLoading Dock with Power Cable

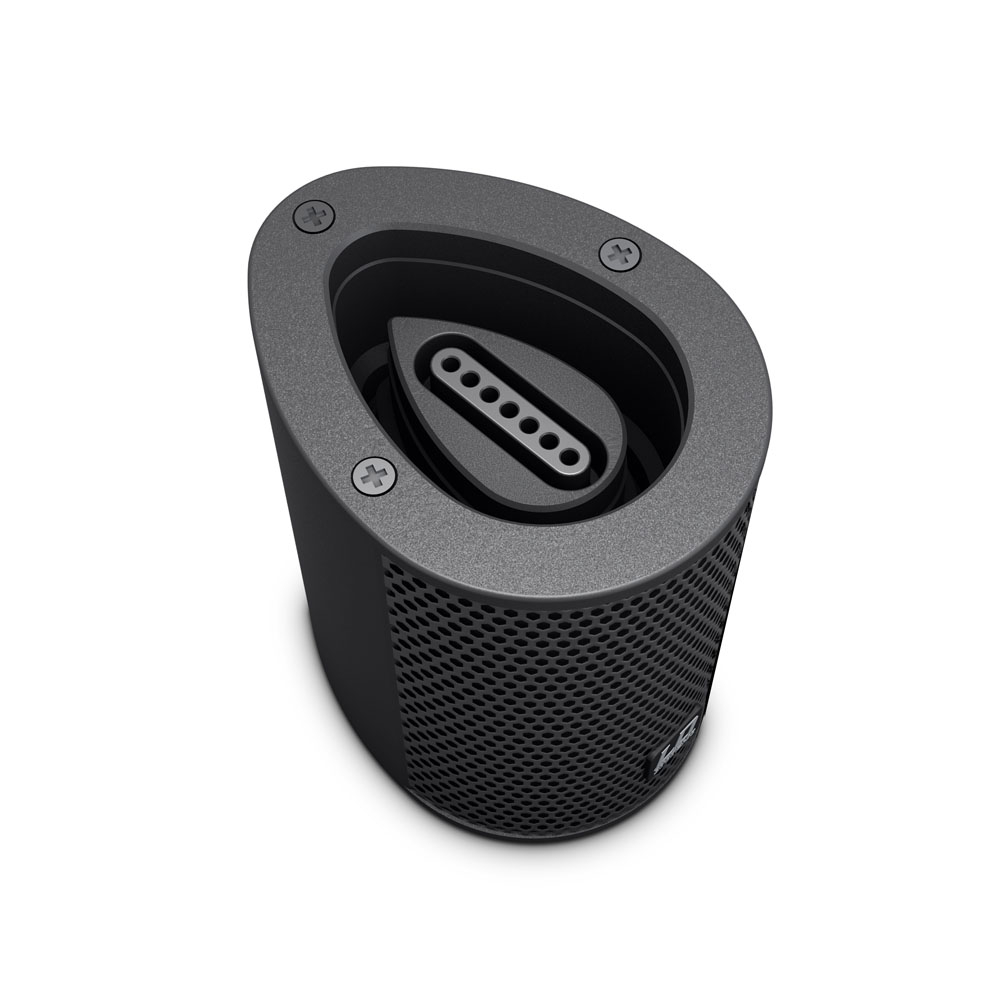

Connections Loading DockToma eléctrica para adaptador, multipin
Operating Voltage Loading Dock20 VDC - 40 VDC
Protection Features Loading Dockcurrent limiter
Dimensions (W x H x D) Loading Dock81 mm x 125 mm x 106 mm
Weight Loading Dock0.31 kg
Input Voltage Power Cable100 - 240 VAC, 50 - 60 Hz
Input Connector Power CableICE Connector male
Rated Output Voltage Power Cable24 V
Output Current Power Cable5 A
Protection Features Power CableSobretensión, Sobrecalentamiento, Sobrecarga de la fuente de alimentación, Cortocircuito

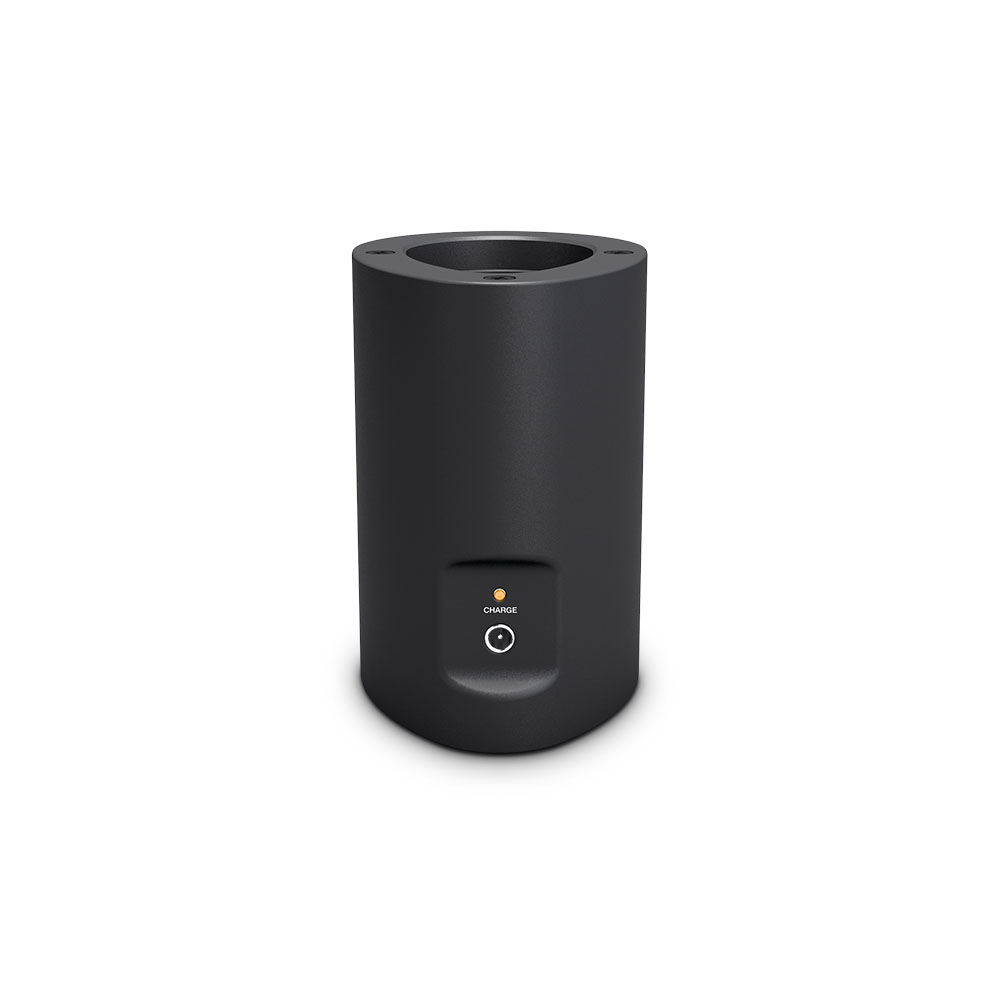

IndicaciónLED de encendido
Dimensions (L x W x H) Power Cable167 mm x 67 mm x 35 mm
Weight Power Cable0.62 kg
