AMP 106 T

Miniamplificador de instalación de 1 canal, 60 W a 4 ohmios/70 V/100 V

AMP 106 T-1
AMP 106 T-2
AMP 106 T-3
AMP 106 T-4
AMP 106 T-5
AMP 106 T-6
AMP 106 T-7
7 fotos

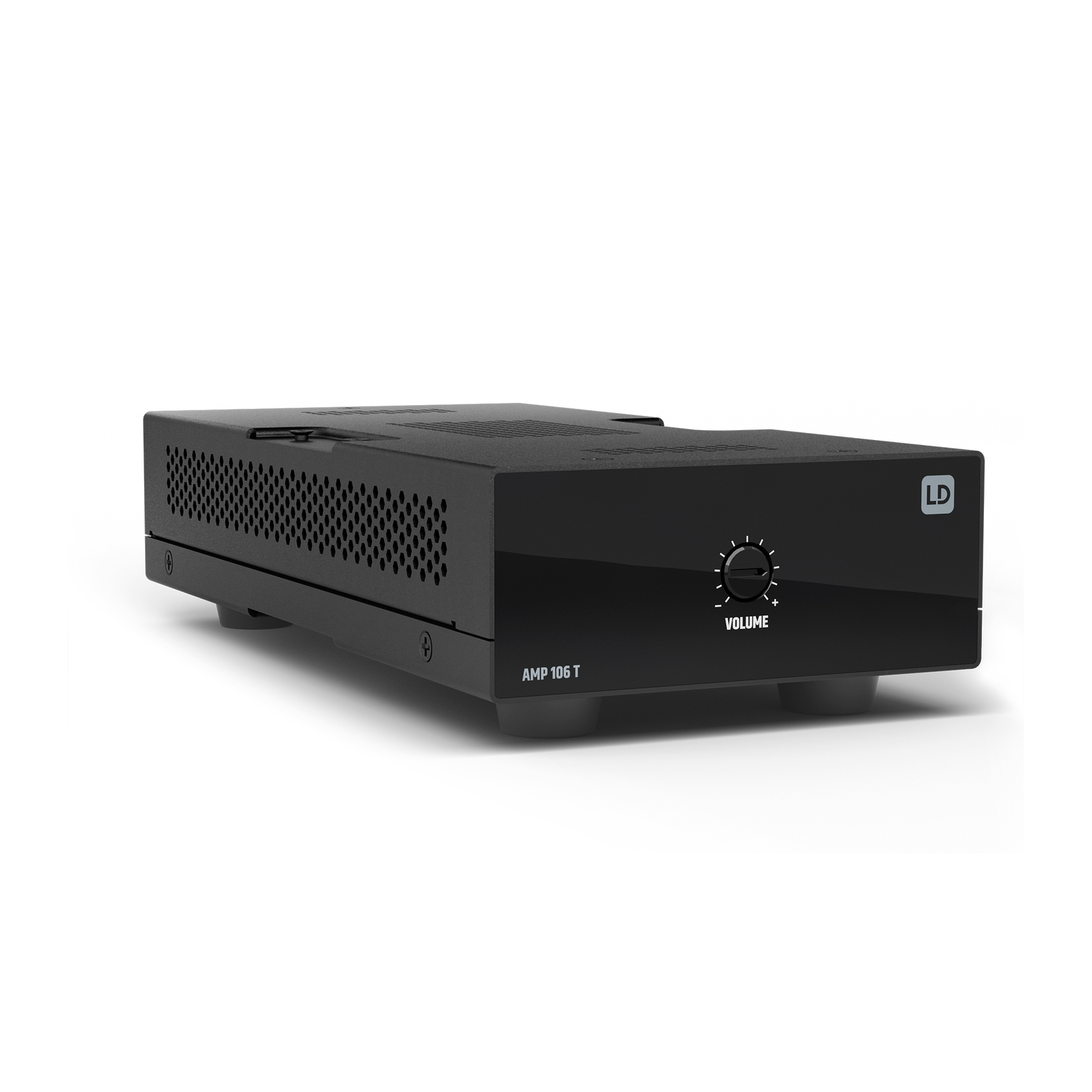

AMP 106 T

Miniamplificador de instalación de 1 canal, 60 W a 4 ohmios/70 V/100 V

Compartir
Número de artículo: LDAMP106TN.º de artículo LDAMP106T
  • Professional mini amplifier
  • 60W Class-D amplifier with Lo-Z / Hi-Z selector switch between 4 Ohm / 100V / 70V outputs
  • Small format 1/4 19" rack, 1U
  • Silent operation with passive cooling
  • Third-party connectivity for remote standby and volume control

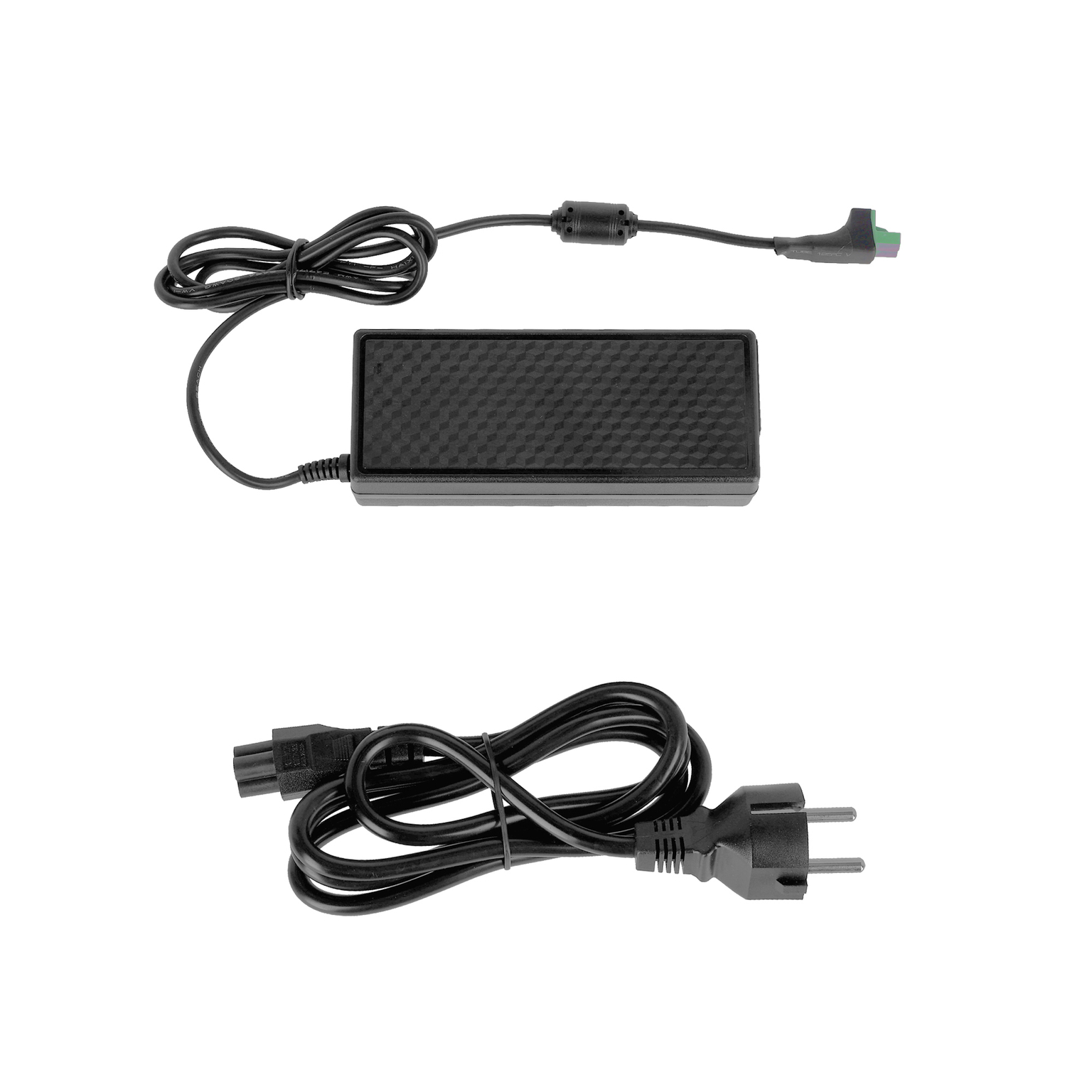

  • External 100 - 200V power supply

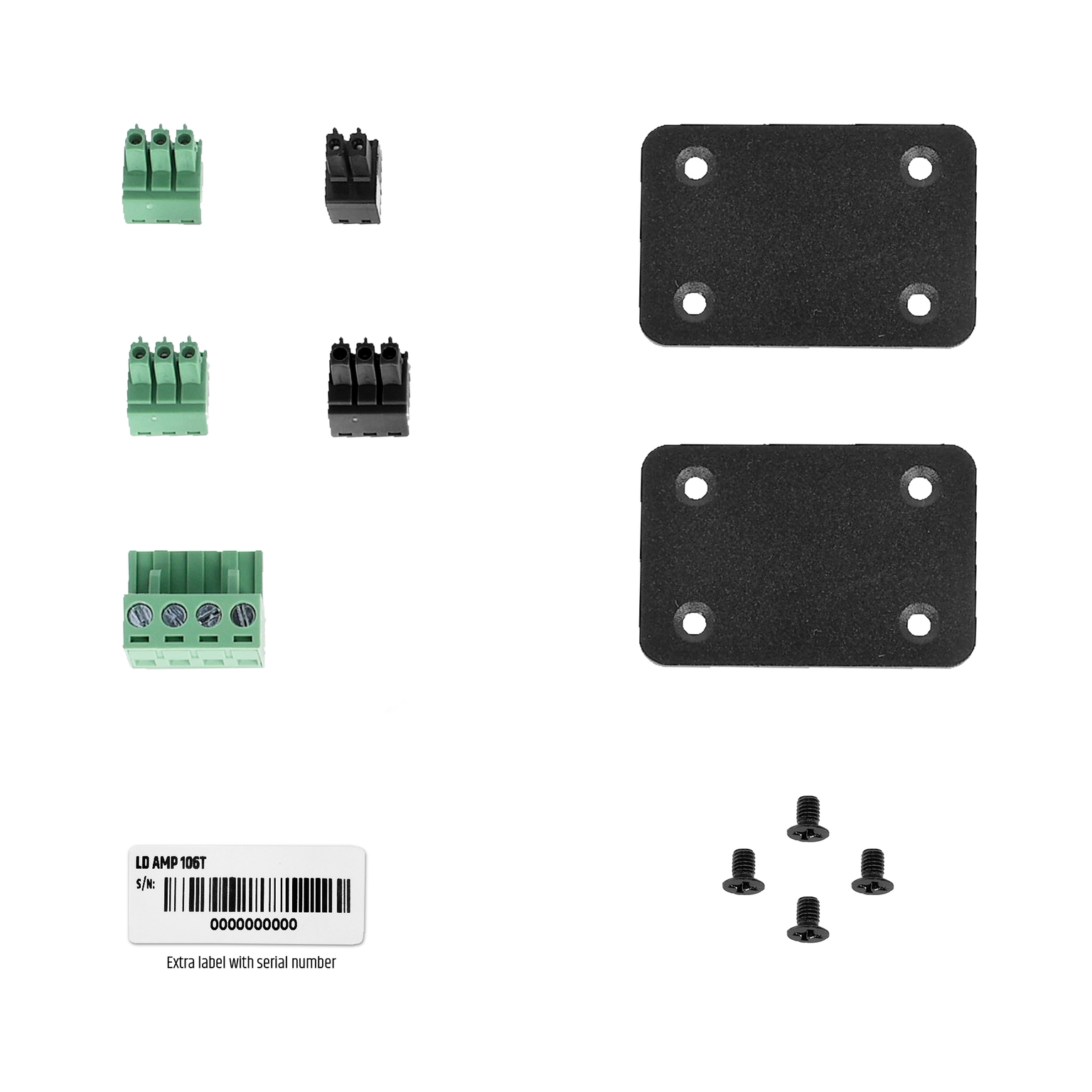

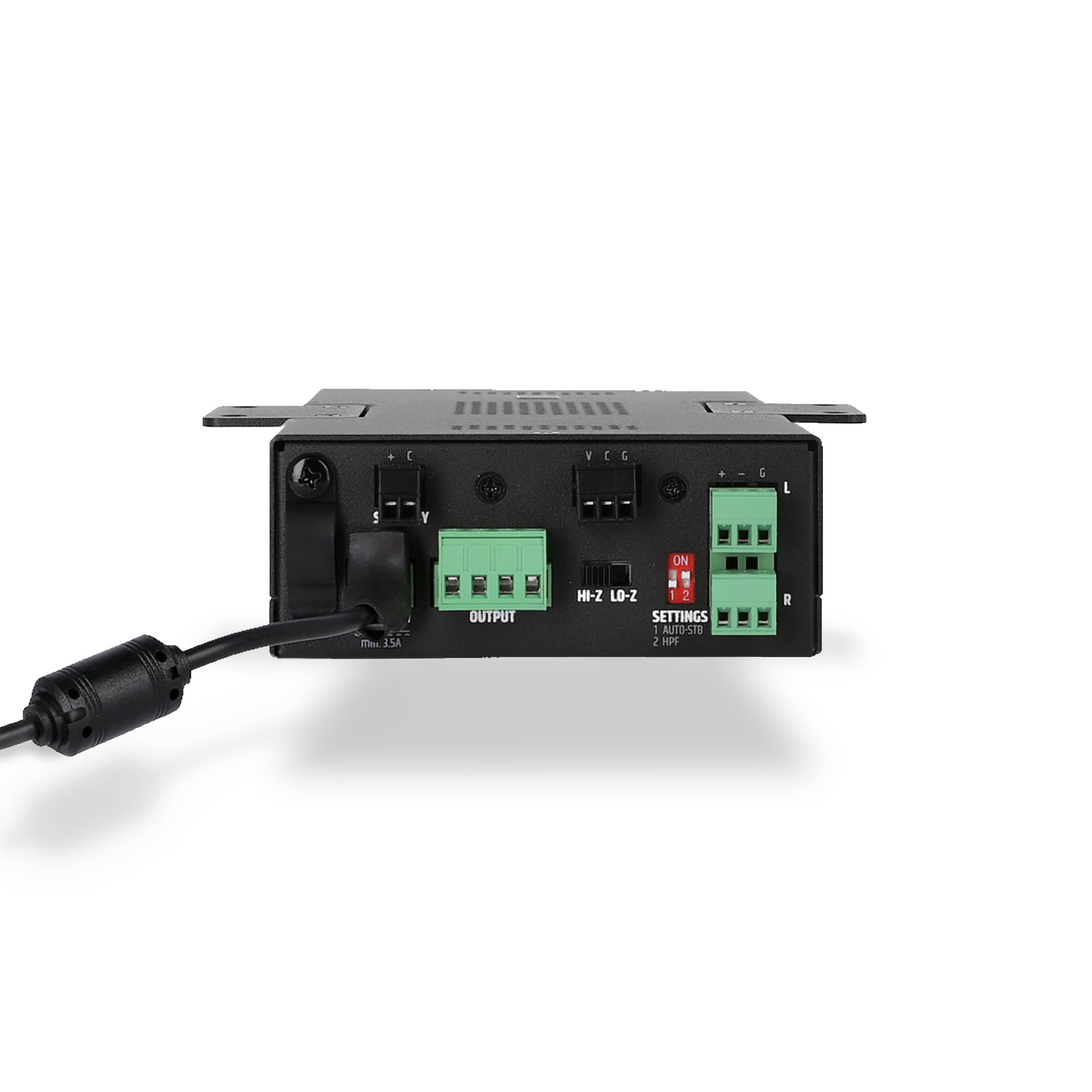

  • Mounting plates for flexible inconspicuous installation, even above suspended ceilings
  • Auto standby to save power
  • Balanced line input and loudspeaker output with terminal strips
  • User-friendly front panel with signal, clip and protection LEDs
  • Optional rack tray for combining with other TICA® series products
Más características

Descripción

Características
  • Professional mini amplifier
  • 60W Class-D amplifier with Lo-Z / Hi-Z selector switch between 4 Ohm / 100V / 70V outputs
  • Small format 1/4 19" rack, 1U
  • Silent operation with passive cooling
  • Third-party connectivity for remote standby and volume control
  • External 100 - 200V power supply
  • Mounting plates for flexible inconspicuous installation, even above suspended ceilings
  • Auto standby to save power
  • Balanced line input and loudspeaker output with terminal strips

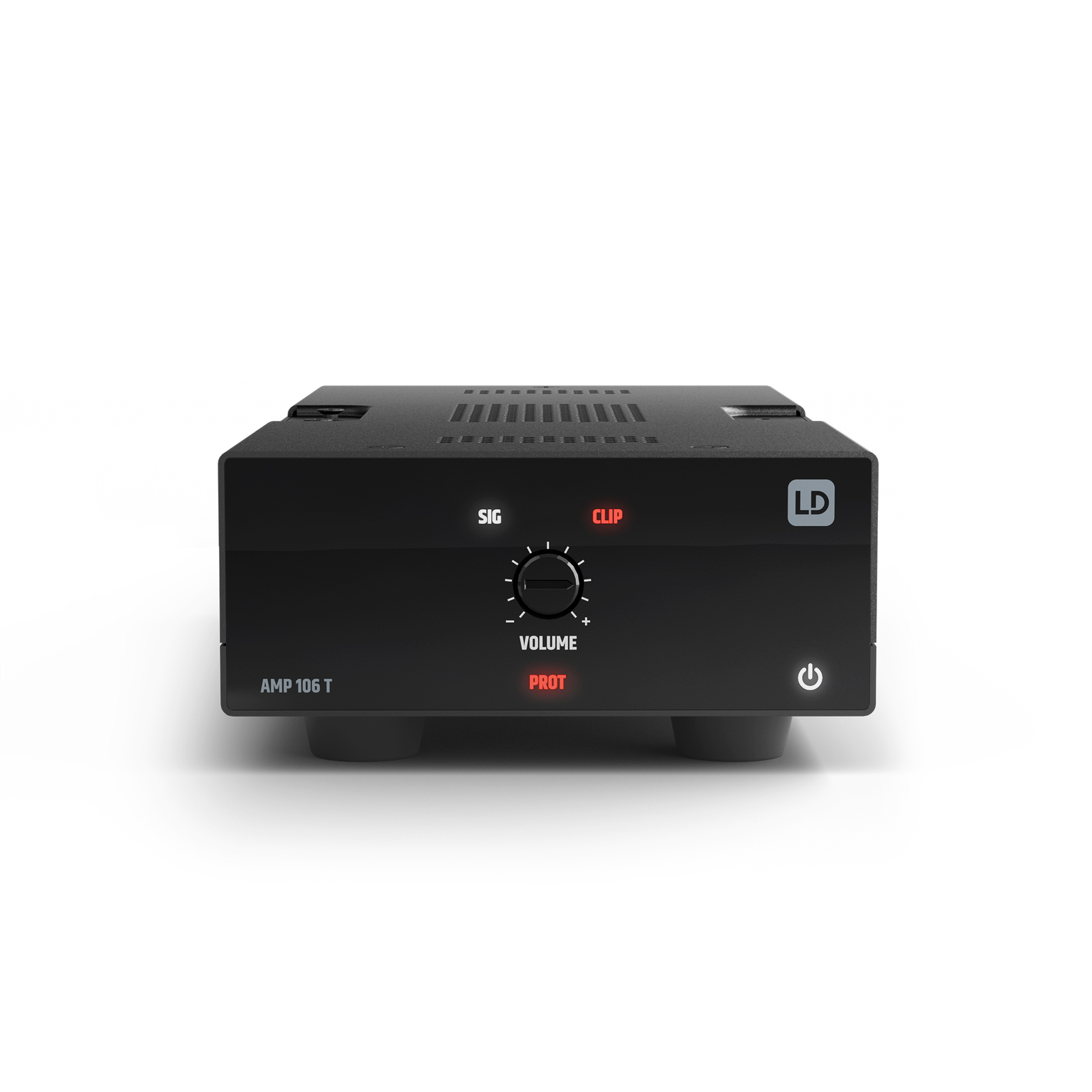

  • User-friendly front panel with signal, clip and protection LEDs
  • Optional rack tray for combining with other TICA® series products

Part of the TICA® series, AMP106T it combines of compact size, passive cooling, and high efficiency – ideal for a wide range of audio installation applications.

The 60W Class-D amplifier, can drive low impedance or 70/100V line loudspeaker systems.

Its tiny form factor (120 x 44 x 222mm) and included mounting plates allow it to be installed discreetly behind screens or under tables. Alternatively, it fits into ¼ 19 inch rack. Use the optional rack tray to slot up to four TICA® series products alongside each other and build a system to your exact requirements, using minimal rack space.

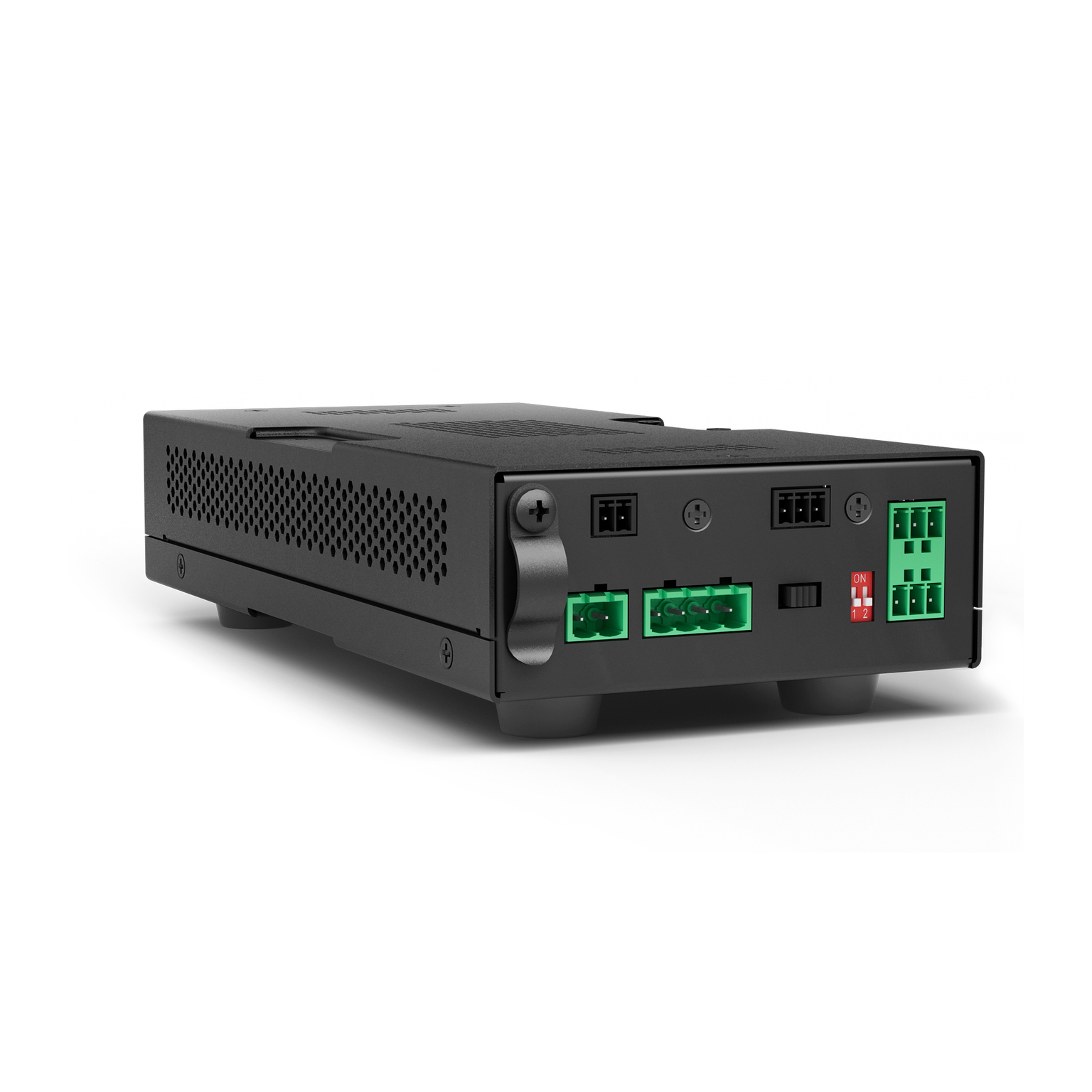

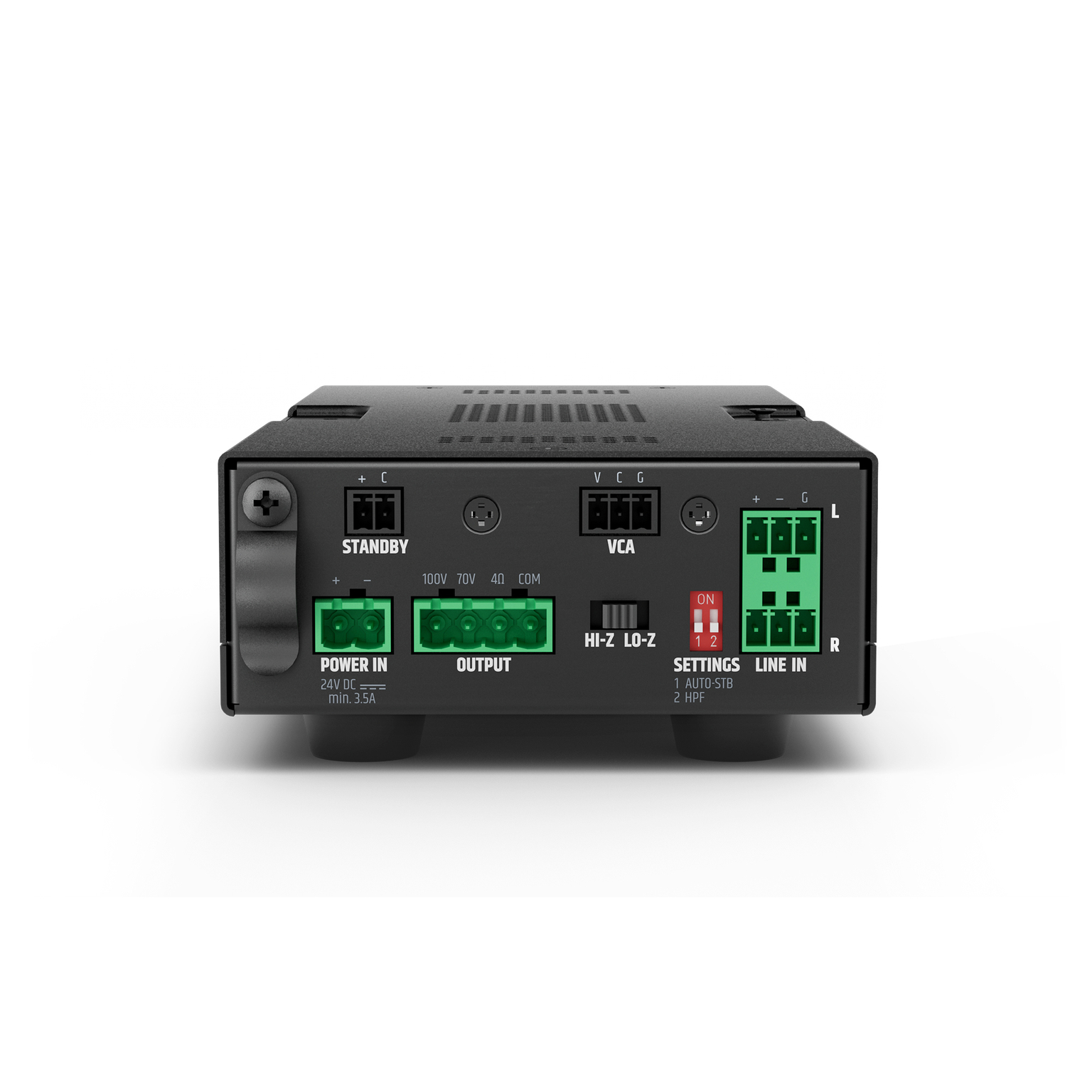

Terminal strip connections on the balanced line input and speaker output make wiring easy.

With remote control connectivity for third-party devices, you can adjust volume or put the power amplifier into standby mode at any time, even when it's hidden. Optional auto-standby saves power when no audio is running.

The perfect solution for professional installers and users looking for a compact, highly efficient and easy-to-integrate solution.

Especificaciones

Tipo de productoAmplificador de instalación
Entradas de línea2
Fuentes de música2 entradas de línea estéreo balanceadas
Salidas de líneaNo
Salidas de alimentación1 con selector de modo de salida (Low-Z/High-Z)
RefrigeraciónConvección
Niveles de prioridadSí

Descargas

Manual de usario
3.36 MB
INTERNATIONAL
Declaración REACH
Adam Hall GmbH|141 KB
INTERNATIONAL
Conformidad con RoHS
Adam Hall GmbH|203.79 KB
INTERNATIONAL
Dibujo 2D
131.03 KB
INTERNATIONAL
Dibujo 2D
8.69 MB
INTERNATIONAL
Catálogo / folleto
Adam Hall Group Product Highlights Autumn/Winter 2025|6.63 MB
EN
