DSP 45 K PB

19" Patchbay for LDDSP45K

DSP 45 K PB-1
DSP 45 K PB-2
DSP 45 K PB-3
DSP 45 K PB-4
DSP 45 K PB-5
DSP 45 K PB-6
6 fotos

DSP 45 K PB

19" Patchbay for LDDSP45K

Compartir
Número de artículo: LDDSP45KPBN.º de artículo LDDSP45KPB
  • 1 U 19-inch power amplifier patch bay
  • Steel with black powder coating
  • 4 x speakON, 4 x XLR/f, 2 x XLR/m, 1 x RJ45
  • Neutrik sockets
Más características

Descripción

Características
  • 1 U 19-inch power amplifier patch bay
  • Steel with black powder coating
  • 4 x speakON, 4 x XLR/f, 2 x XLR/m, 1 x RJ45
  • Neutrik sockets

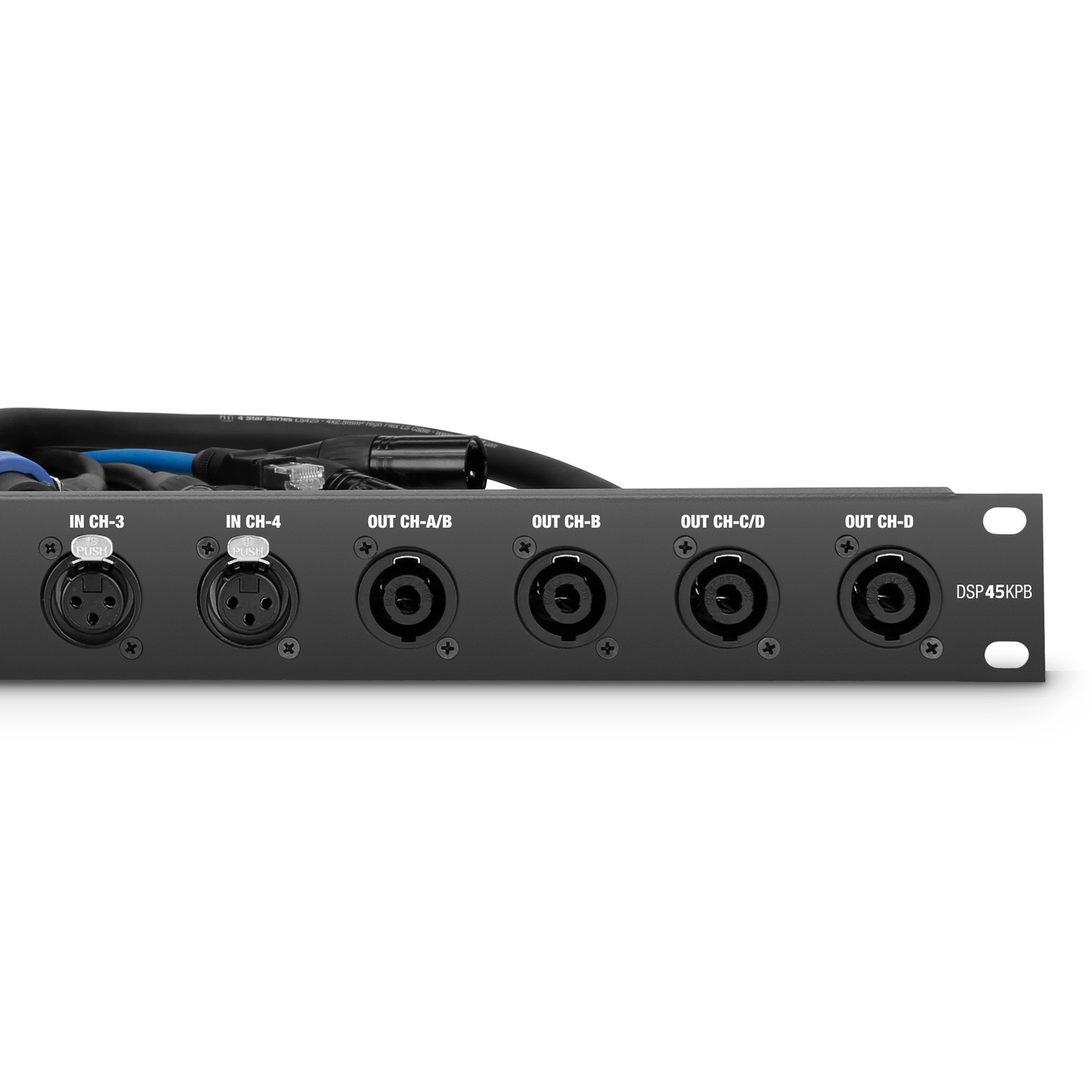

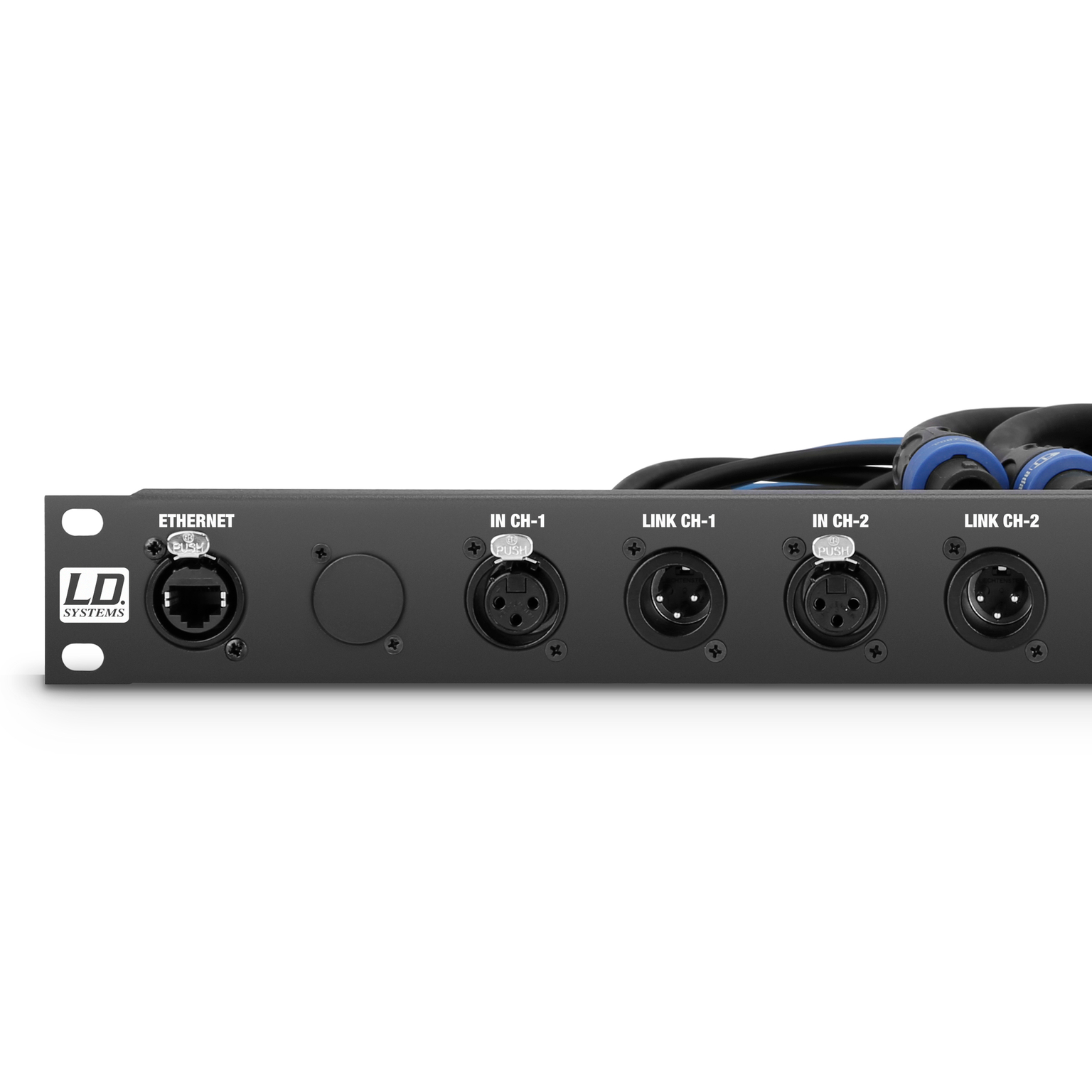

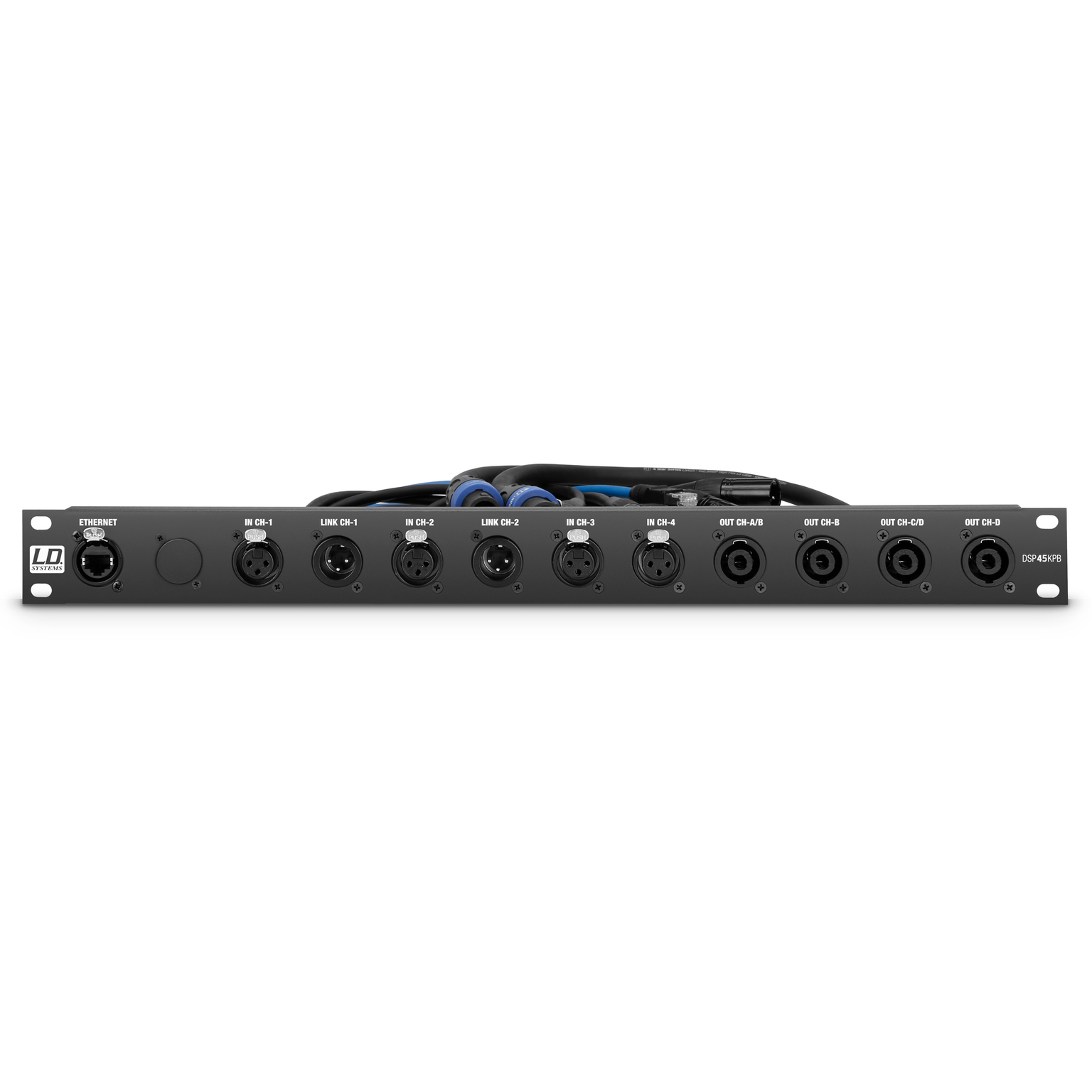

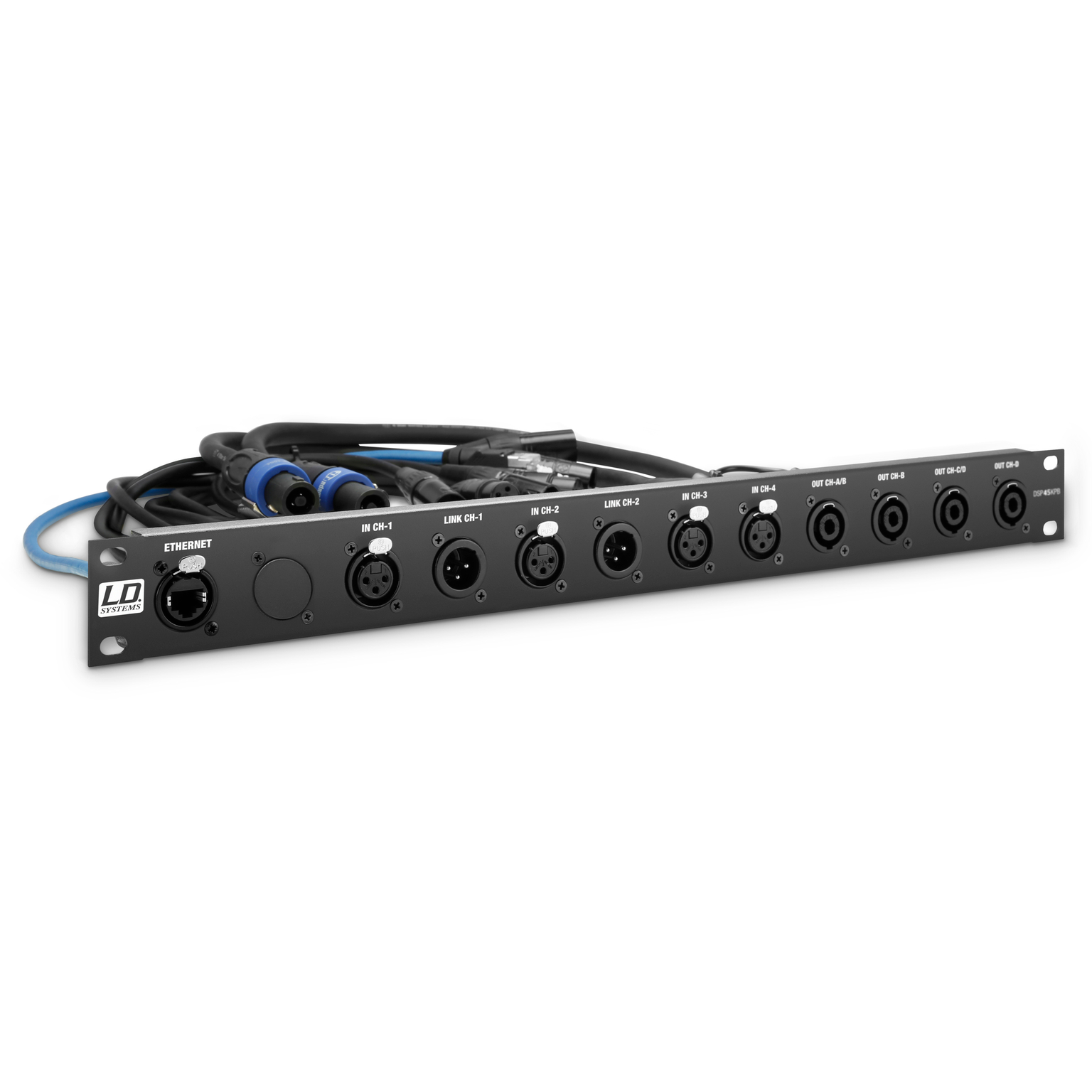

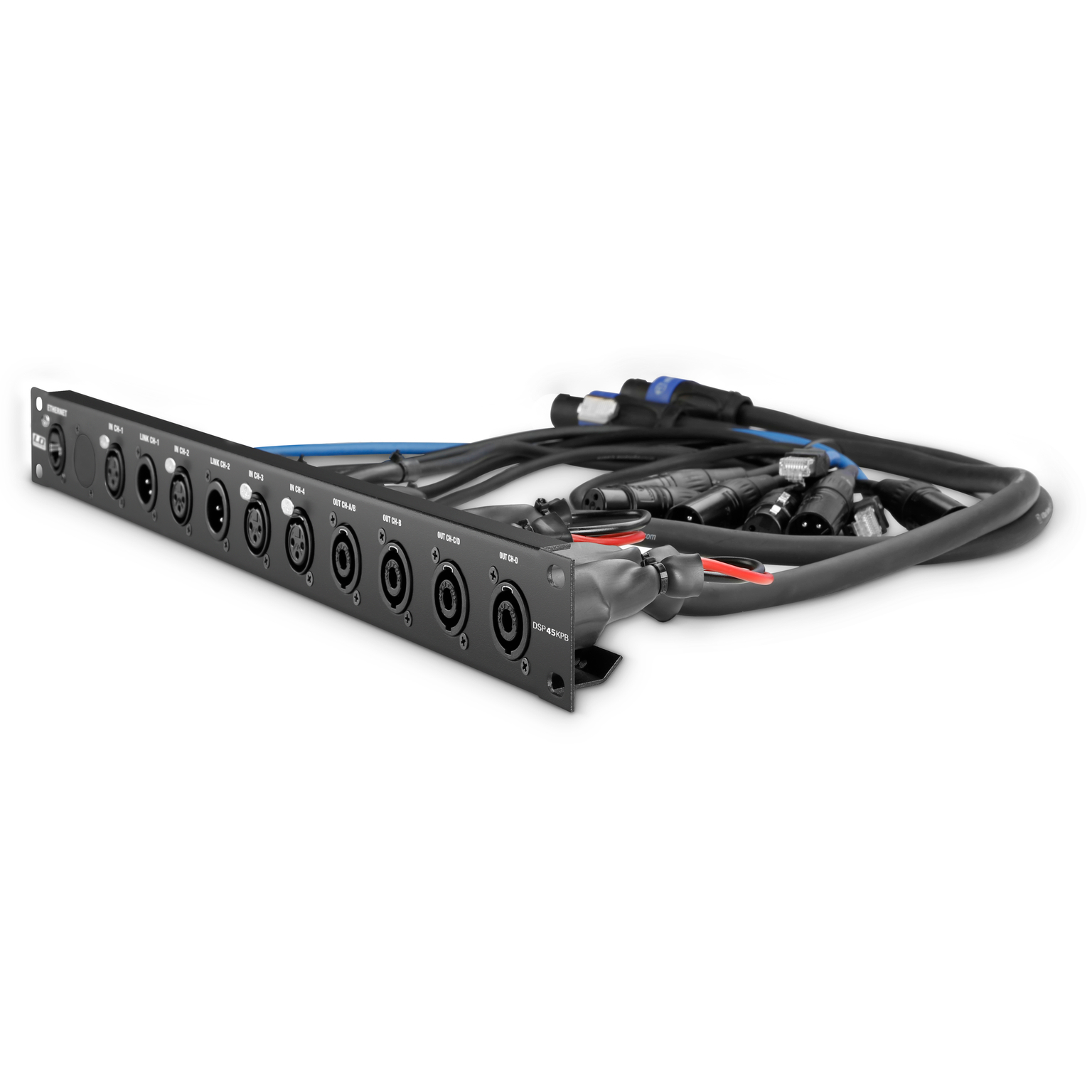

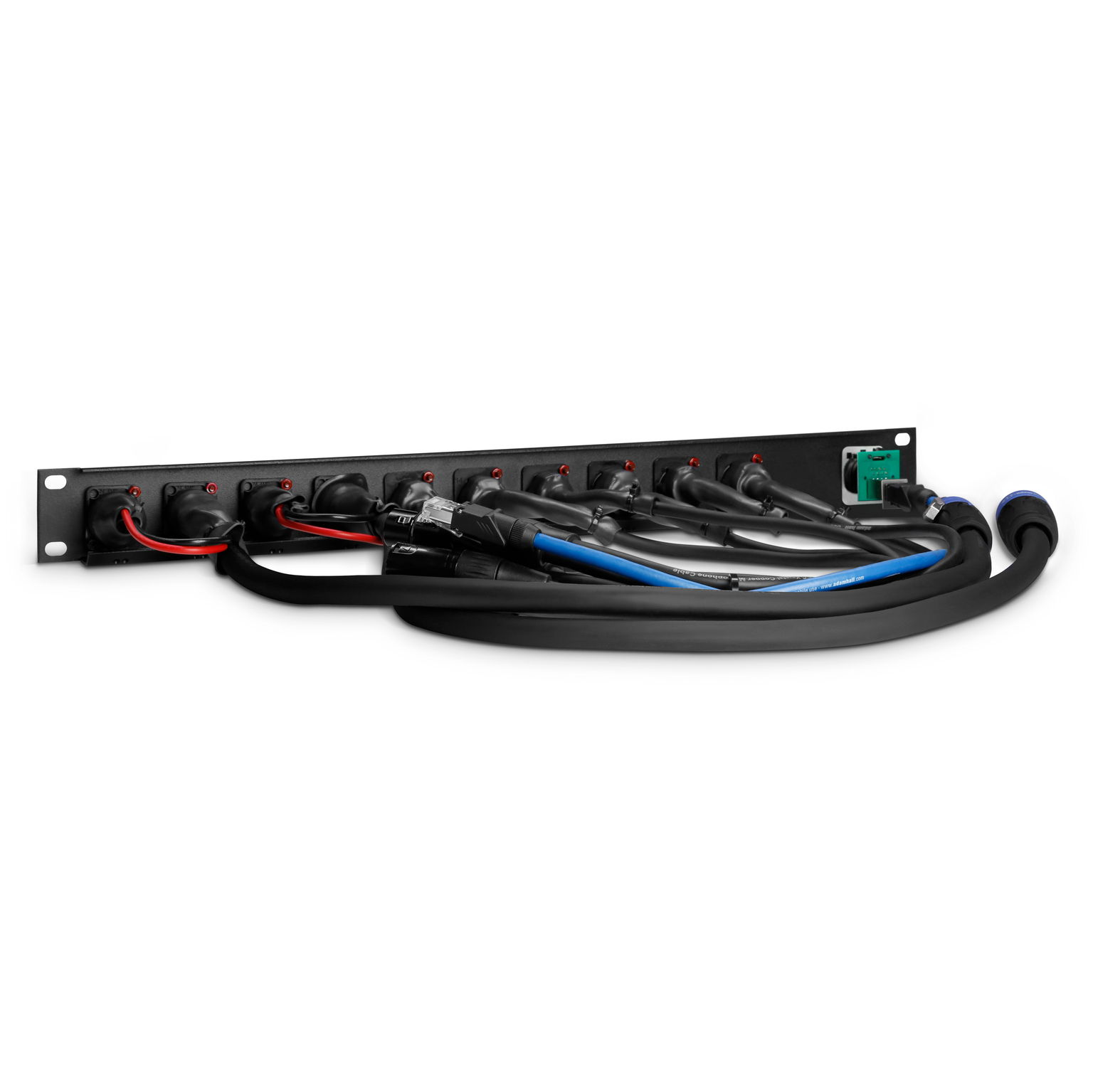

This 19-inch patch bay for the LD Systems DSP 45 K facilitates convenient access to the power amplifier’s inputs and outputs from the rack front. The powder-coated 1 U steel panel features 4 x Neutrik speakON, 4 x Neutrik XLR female, 2 x Neutrik XLR male and 1 x RJ45 sockets for connection and signal routing flexibility.

Especificaciones

Tipo de productoAccesorios para amplificadores
Conectores4 x Neutrik XLR Chassis Socket, 2 x Neutrik XLR Chassis Connector, 4 x Neutrik Speakon, RJ45
Diseño19" / 1 U
Longitud483 mm
Altura44.5 mm
Fondo110 mm
MaterialAcero
Espesor1.5 mm
SuperficieRecubierto de polvo

Descargas

Manual de usario
705.68 KB
INTERNATIONAL
Declaración REACH
Adam Hall GmbH|141 KB
INTERNATIONAL
Conformidad con RoHS
Adam Hall GmbH|203.79 KB
INTERNATIONAL
Catálogo / folleto
Adam Hall Group Product Highlights Autumn/Winter 2025|6.63 MB
EN
Catálogo / folleto
Highlight Brochure DJ & Musician|5.87 MB
EN
Catálogo / folleto
Highlight Broschüre Integrated DE 06/26|18.62 MB
DE
