MAUI G3 LINE-IN VERSIONS

MIX VERSION OF MAUI G3 AVAILABLE IN Q1/2024

MAUI 28 G3

SMALL NEVER
SOUNDED SO BIG.

127 DB MAX SPL · 2060 W PEAK · 37 - 20,000 Hz

2 x 1" Tweeter
on curved Waveguide

The sophisticated curved waveguide offers a narrow and precise vertical dispersion of 30°. This ensures that the high frequency will reach the front row of your audience just as effectively as the very back of the venue.

12 x 3.5" mid woofer

The column and the mid speakers of MAUI G3 are larger than in the previous versions, offering an unprecedented full range experience.

12" subwoofer

The subwoofers of the MAUI G3 series have been completely re-engineered to generate massive bass from a compact design.

And thanks to the built-in Bluetooth 5.0 input with AAC you can stream high resolution audio directly to your PA!

The Cardioid button selects the DSP setting appropriate for the subwoofer Cardioid application.

Stereo line input via XLR / Jack combo connectors.

Use the THRU line output to feed the original line input signal to an additional sound system via XLR.

The dedicated SUB output allows you to connect an additional “follower” subwoofer via XLR.

Just two controls to reach sound perfection - MAIN volume and SUB volume. That's as easy as it gets.

INPUTS AND CONTROLS

Less is more – The MAUI G3 line-in versions were designed as the ultimate headache-free PA systems. Our engineering team put great care in creating an intuitive user-panel with just the controls and inputs you really need.

The user panel features a stereo line input, a THRU line output to feed an additional sound system and a dedicated sub output allowing you to connect an additional “follower” subwoofer. You’ll also find a few controls like MAIN volume, SUB volume as well as the cardioid preset switch. And thanks to the built-in Bluetooth 5.0 input with codec you can stream high resolution audio directly to your PA!

Fill the room with sound

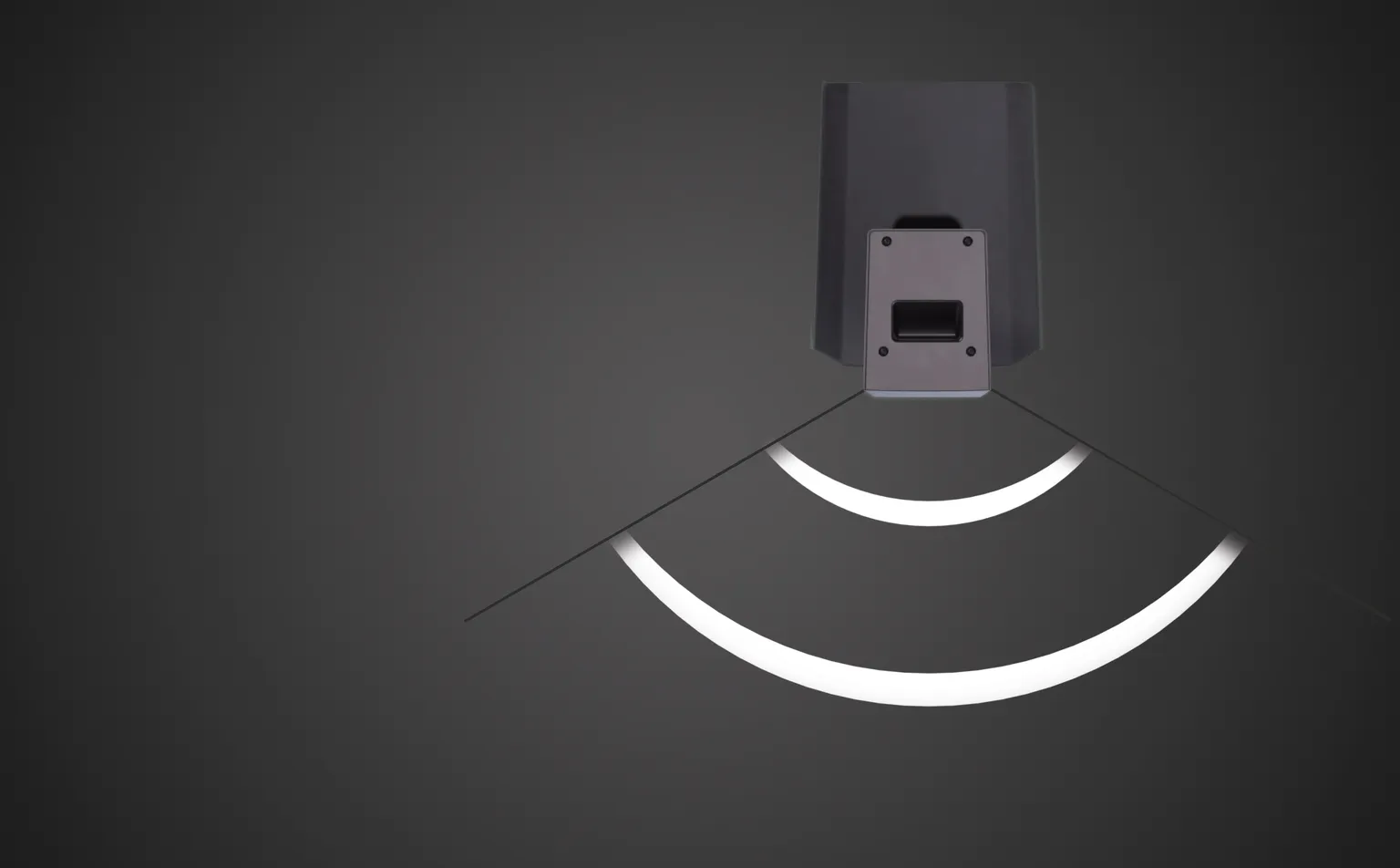

SUPER WIDE 120° HORIZONTAL DISPERSION

Thanks to their line array arrangement and integrated waveguides on top of the low mid speakers, the so-called phase plugs, MAUI G3 offers a super wide 120° of constant horizontal dispersion.

Maui G3 120 degree horizontal dispersion

NARROW & PRECISE 30° VERTICAL DISPERSION

The sophisticated curved waveguide offers a narrow and precise vertical dispersion of 30°. This ensures that the HI frequencies will reach the front row of your audience just as effectively as the very back of the venue.

GET READY TO GET LOW

Down to 37 Hz

Equipped with a single 12" woofer and four bass reflex ports, the MAUI 28 G3 subwoofer delivers a clear, tight and punchy low end down to 37 Hz.

New Acoustic Design

Our engineers re-designed the subwoofer of MAUI 28 G3 entirely and it is now louder and goes deeper.

Optimised Bass-Reflex Port

The new ellipsoidal bass-reflex ports improve the bass response and reduce air flow noise significantly.

High-Quality Subwoofer

The subwoofer chassis with aluminum die cast basket is crafted according to our strict specifications and delivers a very precise and fast response in the low end.

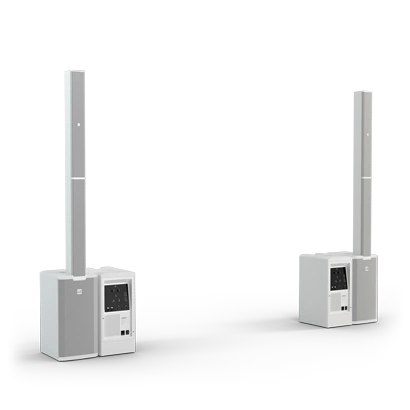

Add a "follower" subwoofer

Forget about Master and Slave, now it's called Main and Follower.

+6 dB low end

Simply place the "FOLLOWER" subwoofer next to your “MAIN” system facing front to enhance the bass response of +6 dB towards the audience.

Cardioid Setup

You want to build a cardioid subwoofer setup? No problem. Simply rotate the subwoofer 180°, and activate the cardioid setup on the back of the sub.

Automatic column
detection

With the automatic column detection, the subwoofer automatically enables the "FOLLOWER" mode when the column is removed and adapts the DSP settings accordingly.

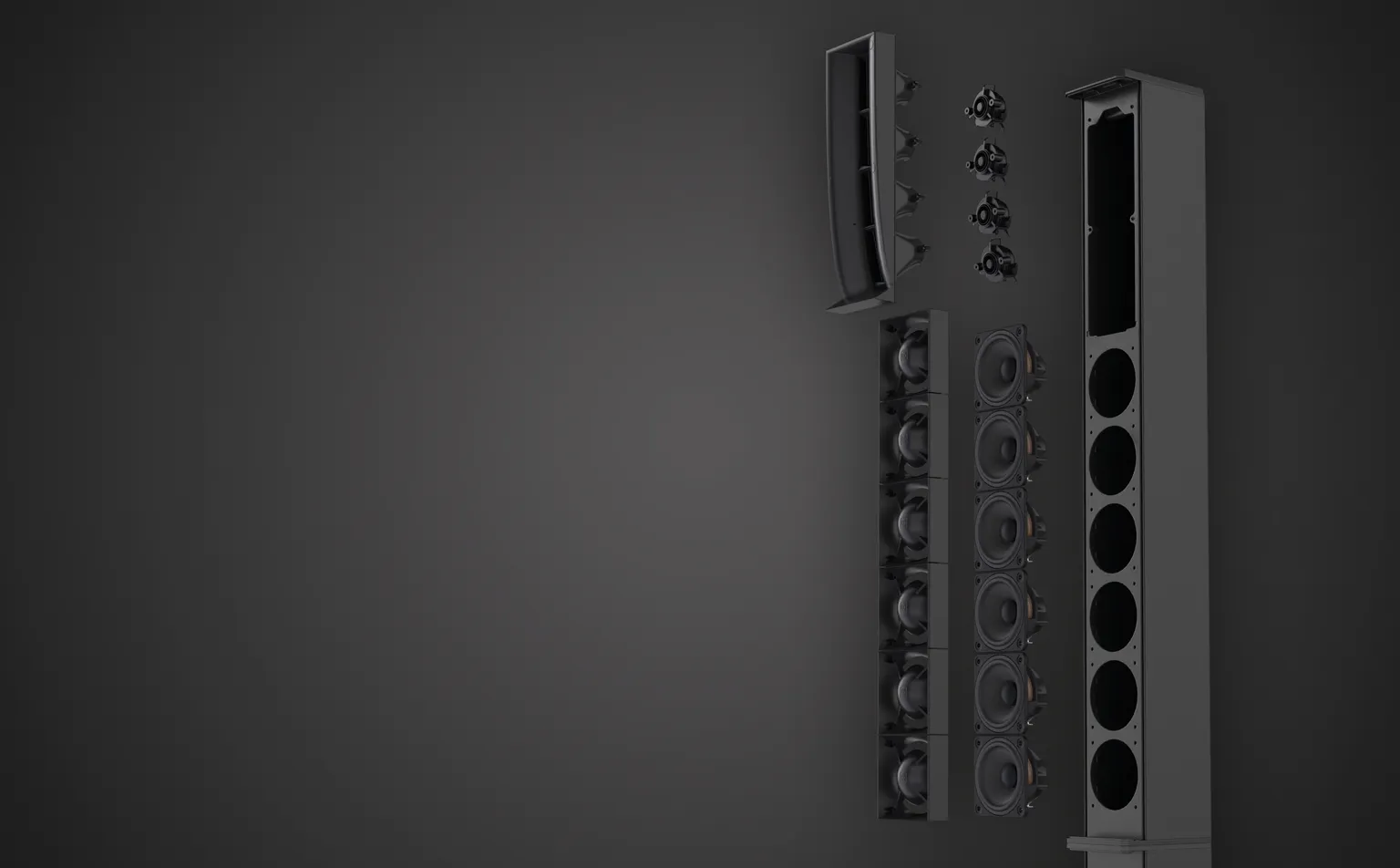

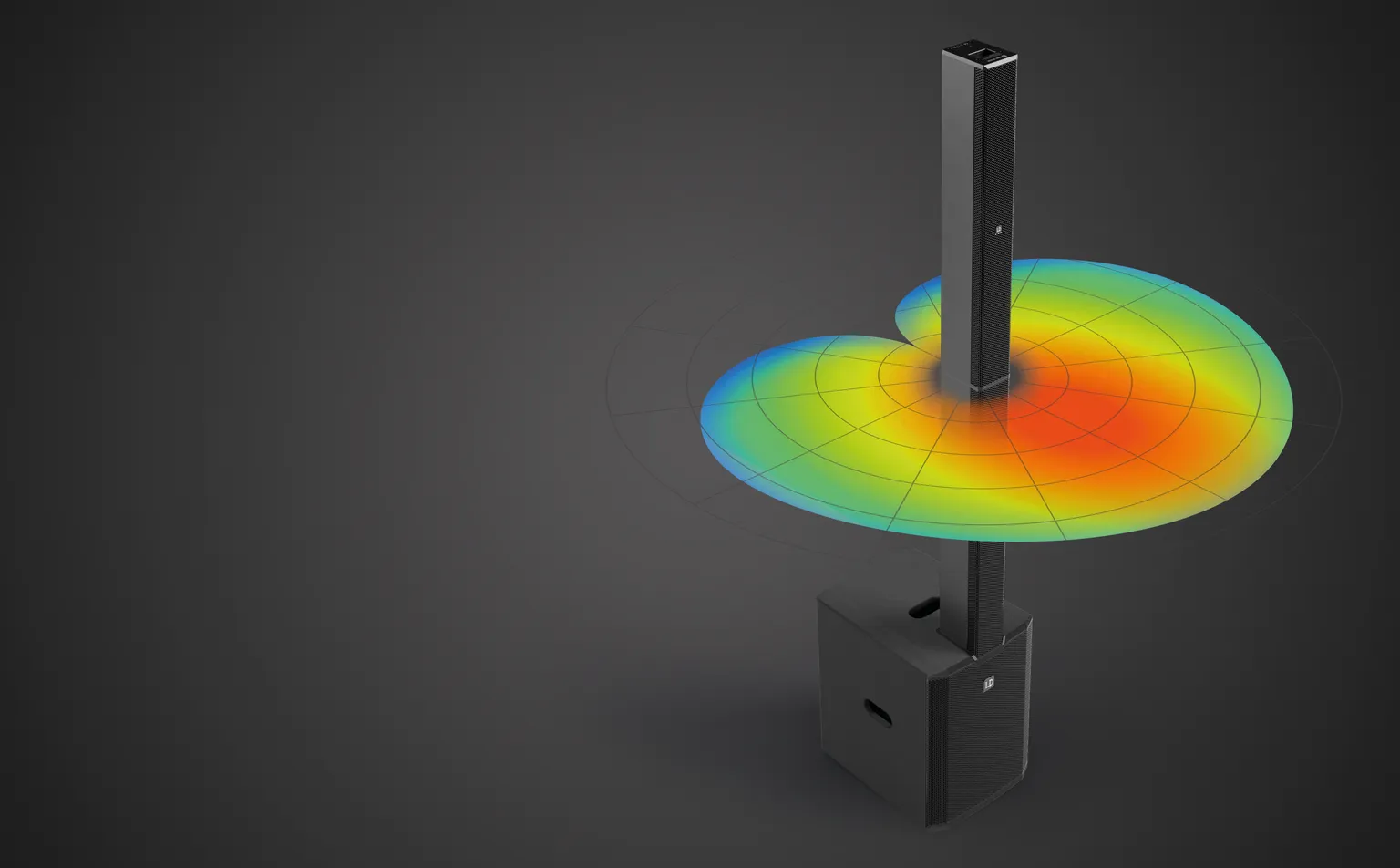

Cardioid Column

Passive Cardioid Column

The 2-piece passive column of MAUI G3 has been reworked entirely and refined in many aspects. A unique feature of the new column is its passive cardioid design offering controlled low-mid and midrange sound dispersion.

-18 dB to the rear

Thanks to its exclusive design the column offers real cardioid dispersion characteristics and provides an 18 dB attenuation to the rear between 100 Hz and 1 kHz.

Acoustic Dampening Foam

The cardioid behaviour of the column is made possible by a clever use of acoustic dampening foam behind the tweeters and mid woofers within the column itself and by precise cutouts within the column aluminium housing.

Cardioid Sub setup

Put more ❤ into your sound

With an additional subwoofer you can create a cardioid setup. Simply rotate the follower subwoofer 180°, and activate the cardioid setup on the back of the sub.

-15 dB Low-End to the rea

With -15 dB bass attenuation to the rear you reduce the risks of feedback, hearing fatigue and phase cancellations significantly.

Up to 3 dB additional
low-end to the front

The cardioid setup also has the nice side effect to enhance the low-end response of 2 to 3 dB towards the audience. More bass right where you need it. And not anyhwere else.

Stereo Setup

Stereo Setup - cardioid

stereo setup - sub boost

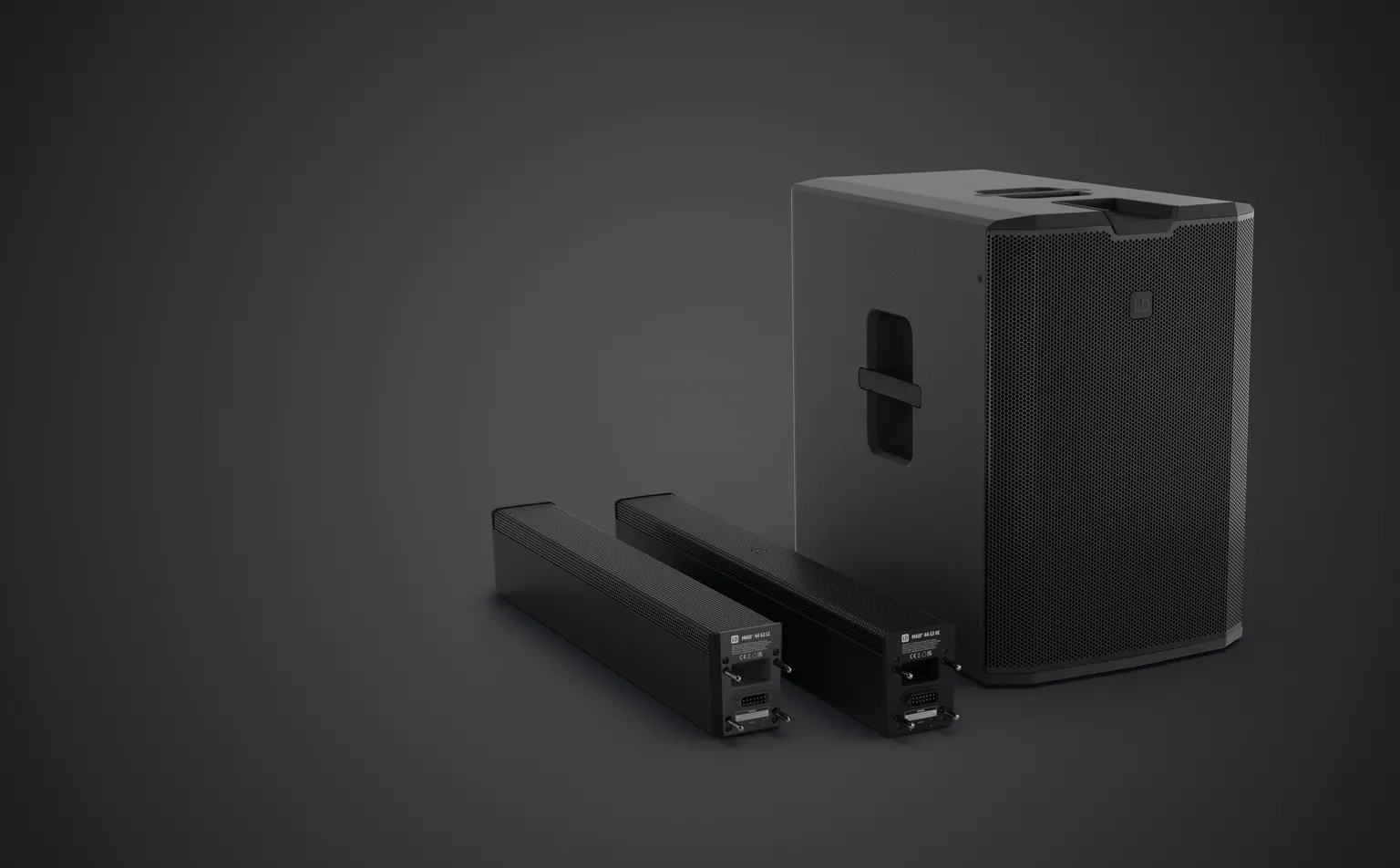

Easy & Safe Transport

Ergonomic handles

The subwoofer is easy to carry thanks to four integrated, ergonomic and generously sized handles. One handle on the top, one on the bottom and one on each side.

Hidden handles in the caps

The columns also feature hidden handles in the caps that allow for a good grip when building the system up and back down.

transport accessories

MAUI G3 should follow you anywhere you go, which is why we offer optional transport accessories such as a cover for the subwoofer, a shoulder bag for the columns as well as a castor board allowing you to roll your system into the venue without breaking a sweat.

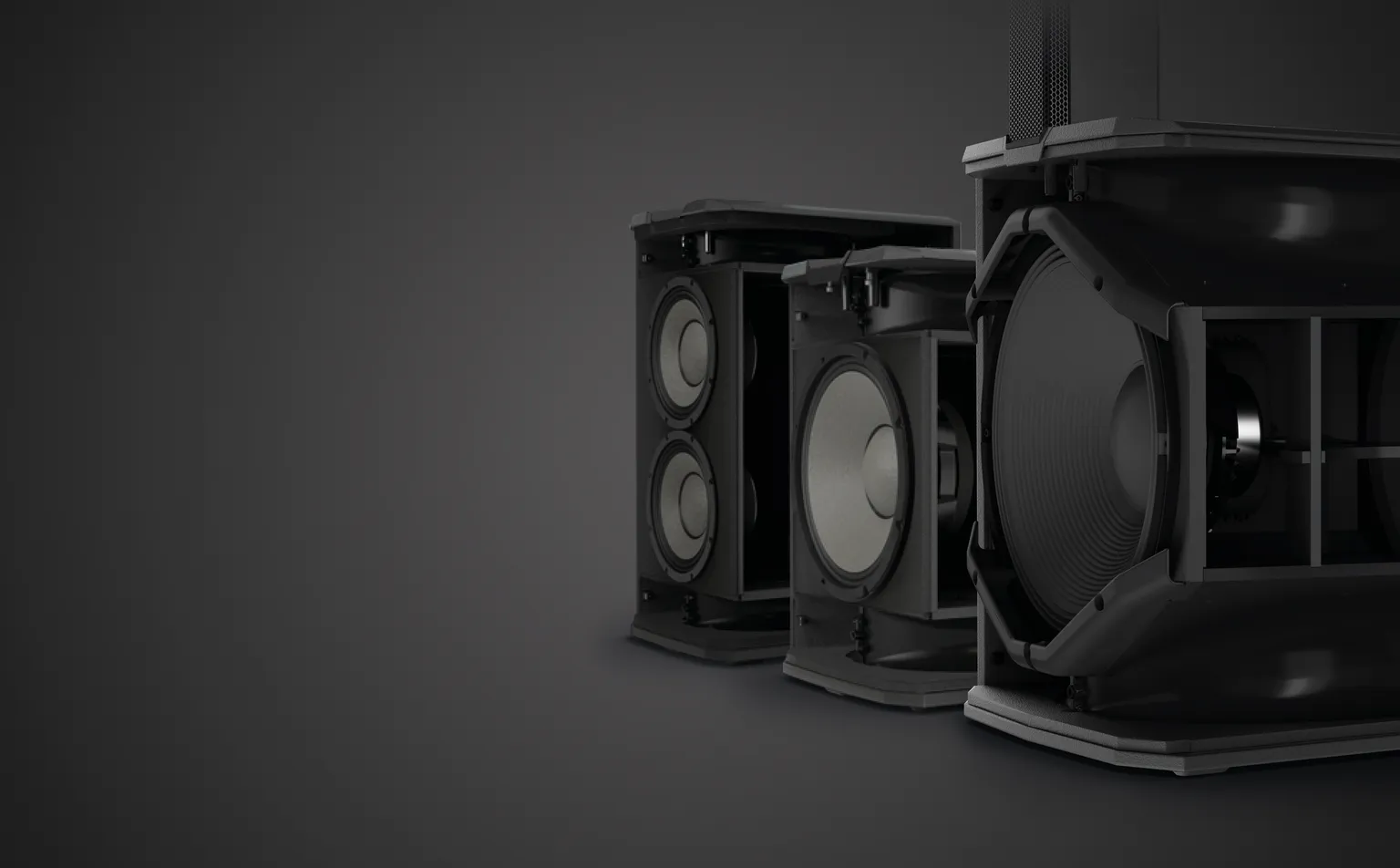

MAUI 28 G2 vs. MAUI 28 G3

SUBWOOFER

2 X 8“

MID SPEAKERS

16 X 3“

2 x 1" TWEETER ON WAVEGUIDE
DYNX® DSP (Gen. 1)
STANDARD PU PAINTING
WIRELESS MULTI-PIN MECHANISM
BLUETOOTH STREAMING

DEEPER BASS REPRODUCTION

1 X 12” WOOFER, 3” VOICE COIL, 30MM PEAK-PEAK EXCURSION

BALANCED MIDS

12 X 3,5” MIDRANGE WOOFER WITH PHASE PLUGS

2 x 1” TWEETER ON CURVED WAVEGUIDE

COHERENT HIGH-FREQUENCY WAVEFRONT

DYNX® DSP (Gen. 2)

ADVANCED MULTIBAND DYNAMIC PROCESSING, FIR CROSSOVER AND EQ

SUBWOOFER WITH IMPACT RESISTANT POLYUREA COATING
REINFORCED WIRELESS MULTI-PIN COLUMN CONNECTOR
COLUMN WITH FULL ALUMINUM HOUSING
BLUETOOTH 5.0 WITH CODEC FOR HIGH RES AUDIO STREAMING
CARDIOID COLUMN

CONTROLLED LOW-AND MID-RANGE FREQUENCY DISPERSION

SUBWOOFER EXTENSION

USER-FRIENDLY MAIN AND FOLLOWER FUNCTION FOR CARDIOID OR BASSBOOST SETUP

ELLIPSOIDAL BASS-REFLEX PORTS

ENHANCED BASS RESPONSE AND REDUCTION OF AIR FLOW NOISES

EASIER TRANSPORTATION

4 HANDLES
