MAUI 44/66 G3: 4-Way Cardioid Column PA Systems

MAUI® 44 G3 (MIX) &
MAUI® 66 G3

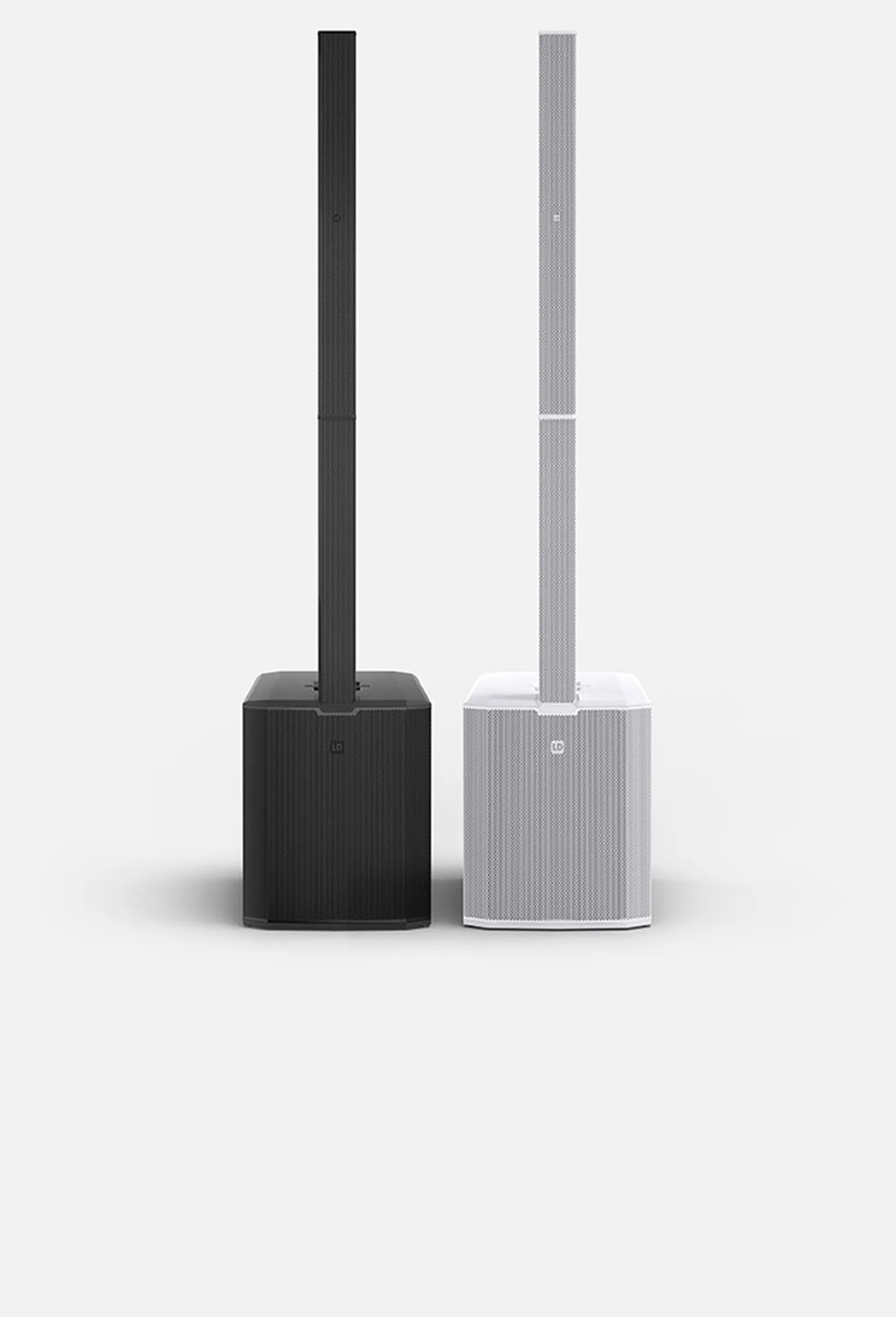

All three models combine a fully active 4-way system with passive cardioid columns, newly developed subwoofers and the familiar setup with two plug-in columns.

The MAUI 44 G3 integrates easily into existing DJ and mixer setups. The MAUI 44 G3 MIX adds a built-in 8-channel digital mixer with app control and monitoring. With its 18″ subwoofer and extended midrange driver configuration, the MAUI 66 G3 delivers deeper bass and greater reach.

COMPARE PRODUCTS

MAUI® 44 G3

MAUI® 44 G3 MIX

MAUI® 66 G3

Max. SPL Peak

133 dB @ MAUI 44 G3 (MIX)

Low-frequency limit

34 Hz @ MAUI 44 G3 (MIX)

Peak system power

3600 W @ MAUI 44 G3 (MIX)

Dispersion angle

Horizontal × vertical

Max. SPL Peak

133 dB @ MAUI 44 G3 (MIX)

Low-frequency limit

34 Hz @ MAUI 44 G3 (MIX)

Peak system power

3600 W @ MAUI 44 G3 (MIX)

Dispersion angle

Horizontal × vertical

HIGHLIGHTS

Fully active 4-way power

Four separately amplified frequency bands combine powerful sound with precise tuning across the entire frequency range.

Passive cardioid column

The column’s cardioid dispersion reduces the sound radiated towards the rear, helping to minimise unwanted sound on stage.

15″ and 18″ subwoofers

High-performance neodymium woofers and airflow-optimised bass reflex ports deliver punchy, precise deep bass, even at high output levels.

Clear sound with extended reach

The waveguide, phase plugs and horn-loaded midrange drivers combine even sound distribution with plenty of headroom, so vocals, speech and instruments remain clear and present at a distance.

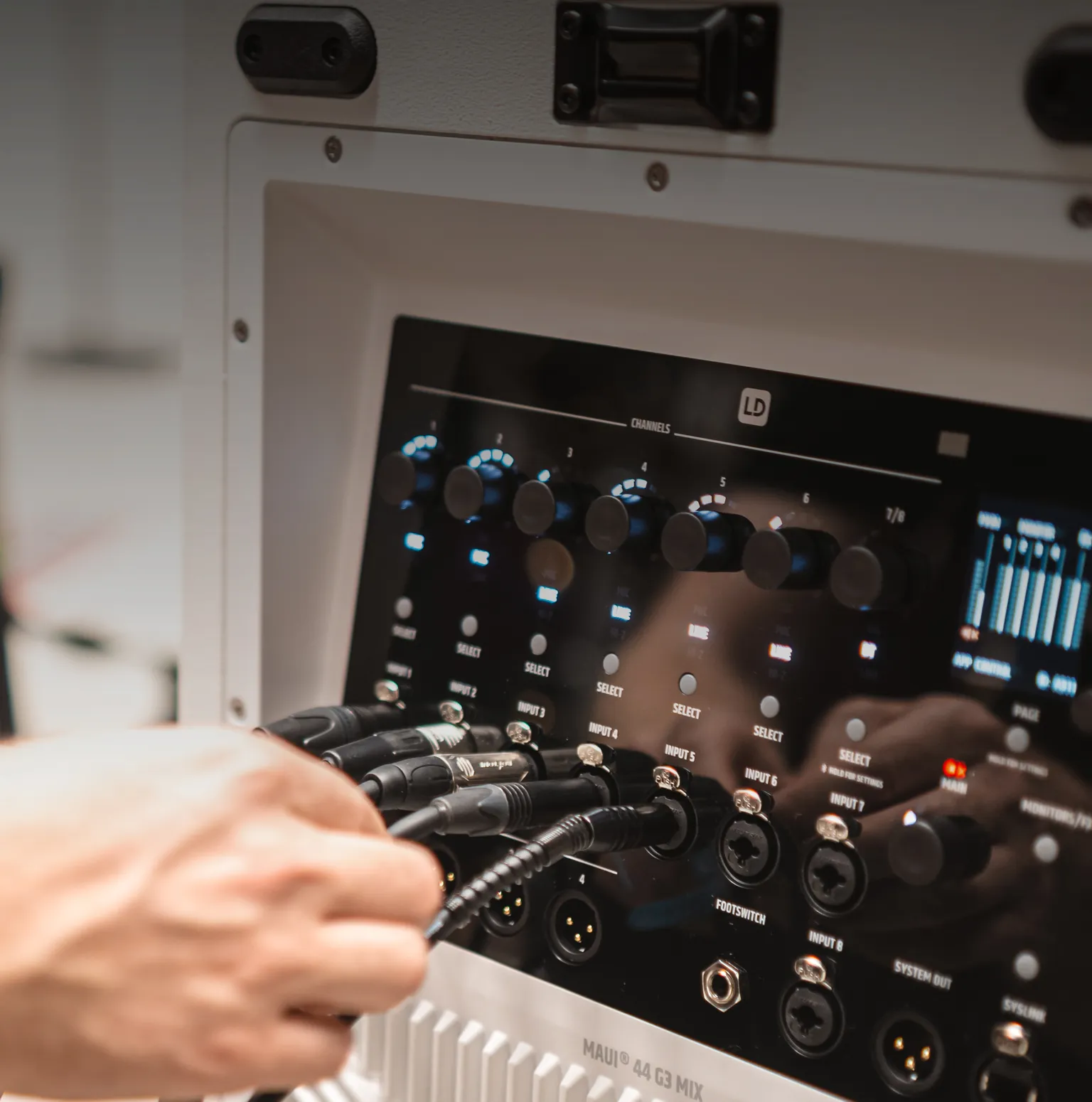

8-channel mixer with app (44 G3 MIX)

The integrated 8-channel digital mixer brings inputs, effects and monitor mixes together in one system. Control it from the colour display or the MAUI MIX app. Link two systems via SysLink® for access to 16 channels.

YOUR SHOW. YOUR MAUI® G3.

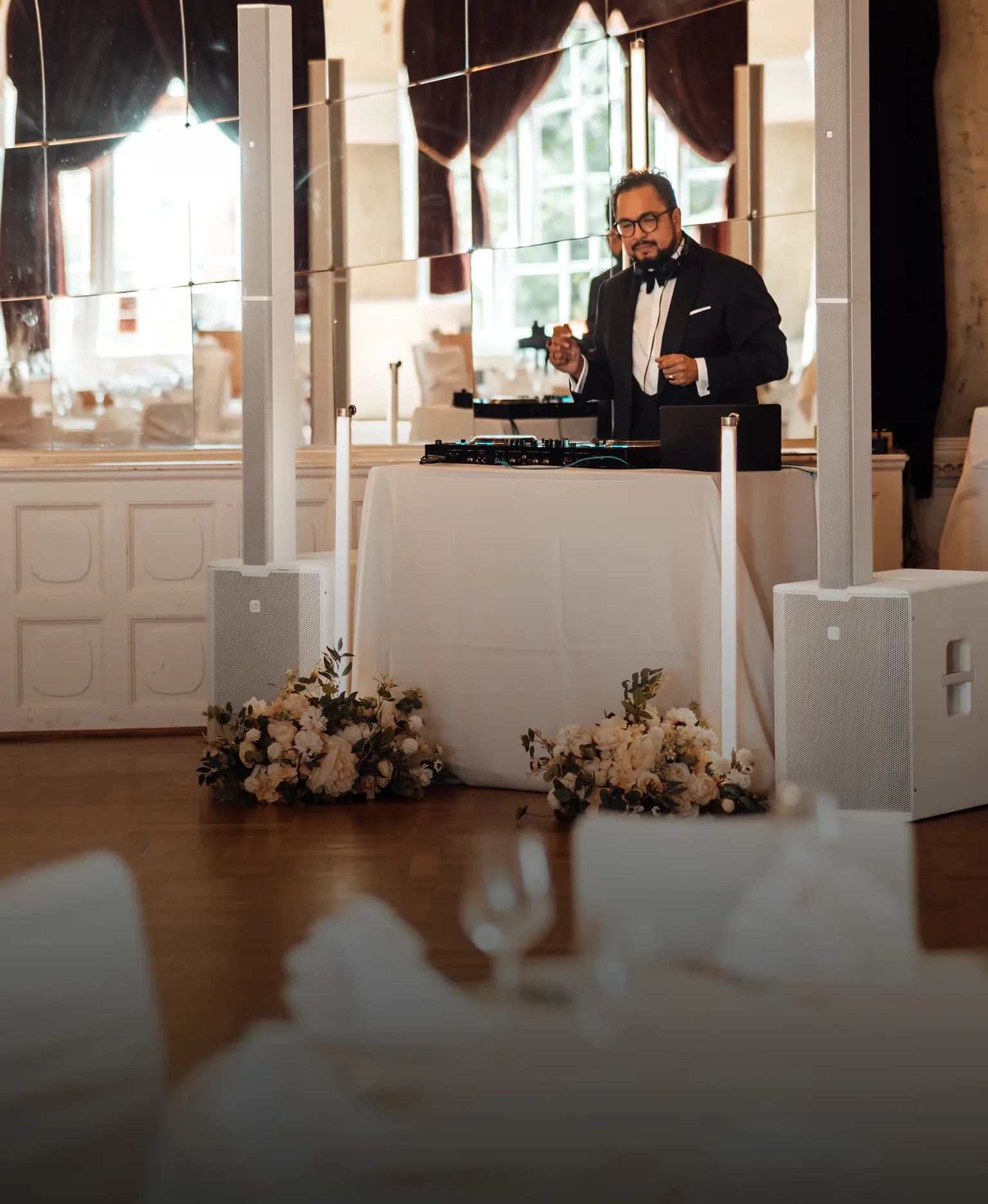

Weddings and events

From the reception and speeches to dinner music and the dance floor, the MAUI 44 G3 covers different stages of an event with a single system.

Connect your DJ controller or mixing desk via the line inputs and keep using the setup you know. When the dance floor fills up, the system delivers the punch and solid bass foundation you need. A castor board and bags make transport easier, while the white version is particularly well suited to weddings and special occasions.

Model shown: MAUI 44 G3 W

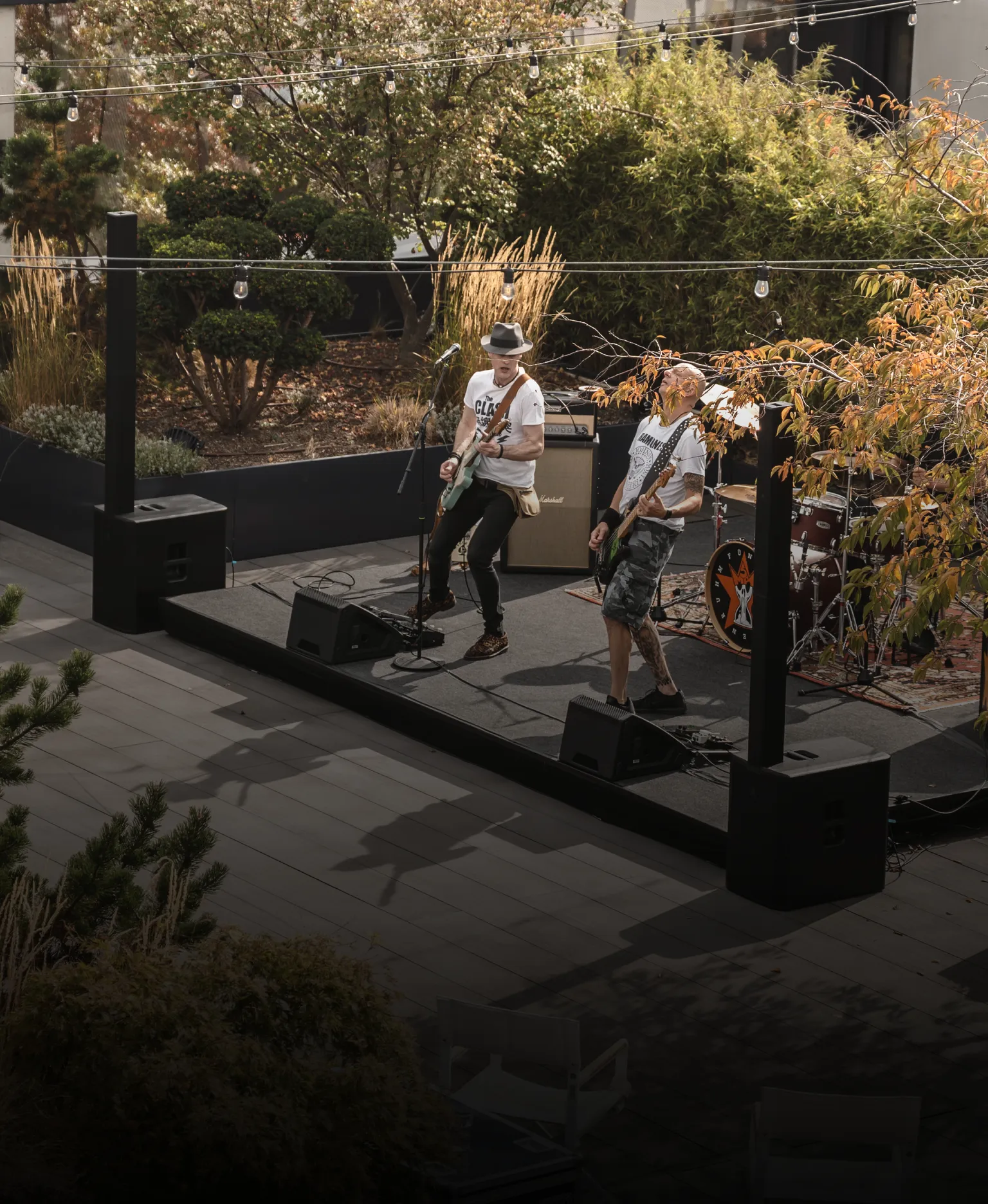

Bands and live music

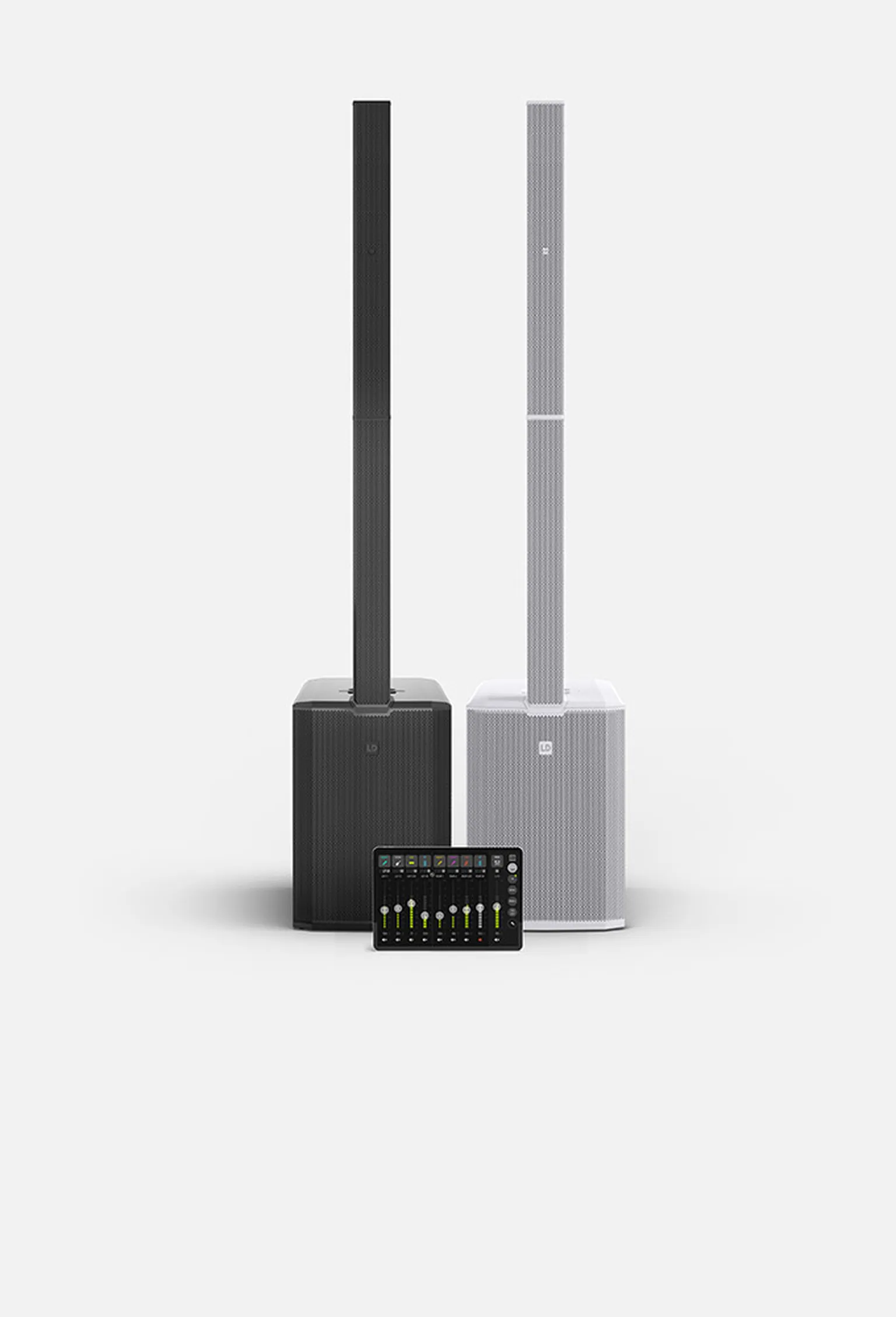

The MAUI 44 G3 MIX combines sound reinforcement, mixing and monitoring in one system, giving you plenty of flexibility for vocals, instruments and playback sources.

With eight inputs, six of them equipped with microphone preamps, and four monitor outputs, it is ready for a wide range of live line-ups. Control your mix directly on the system or via the app. For larger setups, SysLink® lets you connect two MAUI 44 G3 MIX systems for stereo operation, giving you 16 input channels with unified app control.

Model shown: MAUI 44 G3 MIX

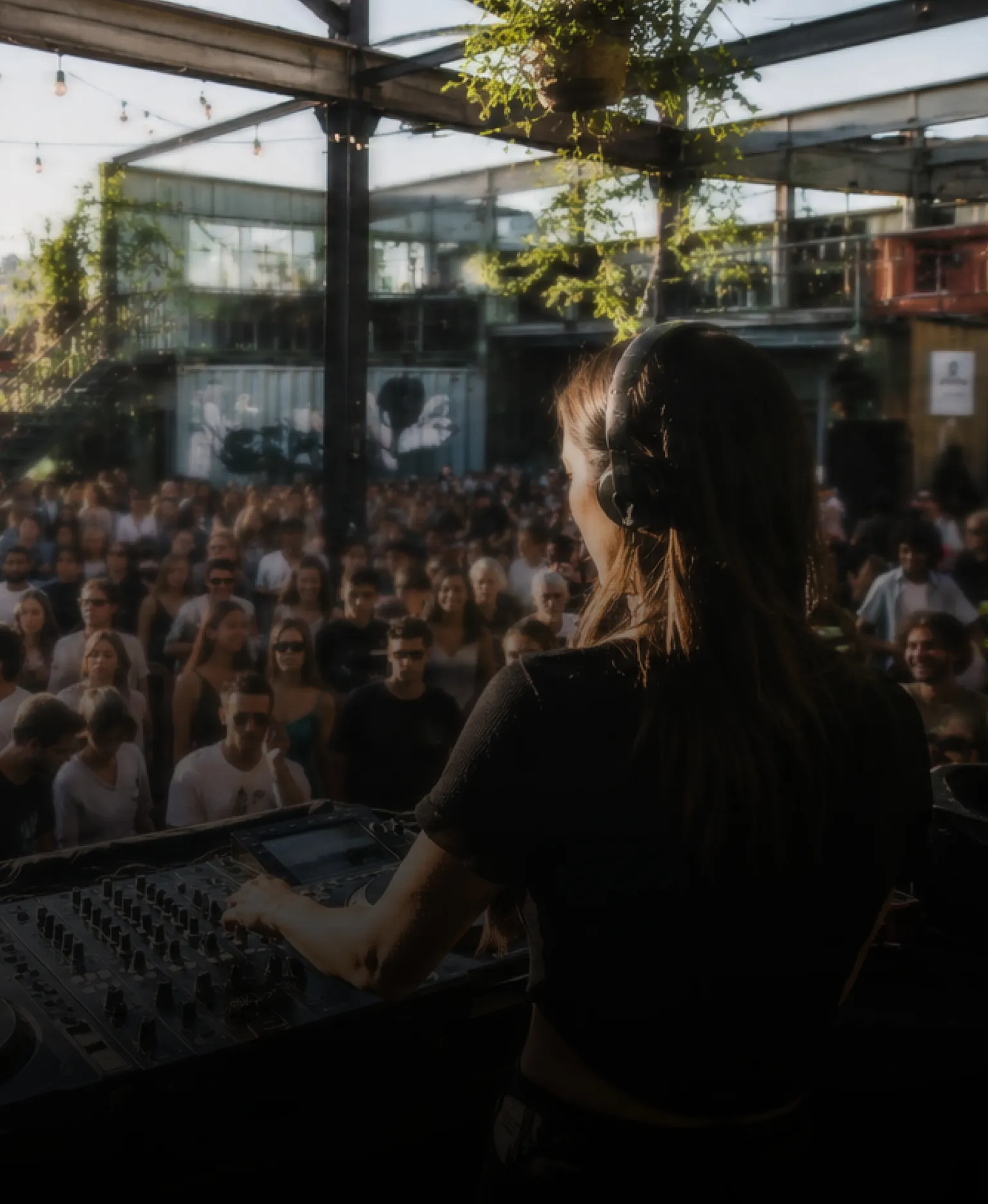

Bigger crowds and bass-heavy sets

For bass-heavy DJ sets, larger mobile productions and applications demanding deeper bass and greater reach, the MAUI 66 G3 offers a more substantial acoustic setup.

An 18″ subwoofer provides the bass foundation. A total of 16 midrange drivers – including two positioned above the high-frequency section – help vocals and instruments remain clear and present over greater distances.

Model shown: MAUI 66 G3

OVERVIEW & FEATURES

In this video, discover what the MAUI 44 G3, MAUI 44 G3 MIX and MAUI 66 G3
have in common and what sets them apart.

AT A GLANCE

14 × 3.5″ midrange drivers

4 × 1″ compression drivers

15″ subwoofer

Cardioid column

Up to 18 dB less sound radiated towards the rear

DynX® DSP Gen. 2

Controlled sound with built-in protection

Bluetooth® Audio

Wireless audio streaming

Plug and Play

Plug in the columns and you’re ready to go

Easy handling

Designed for easy setup and transport

Rugged construction

Built for regular mobile use

TECHNOLOGY IN DETAIL

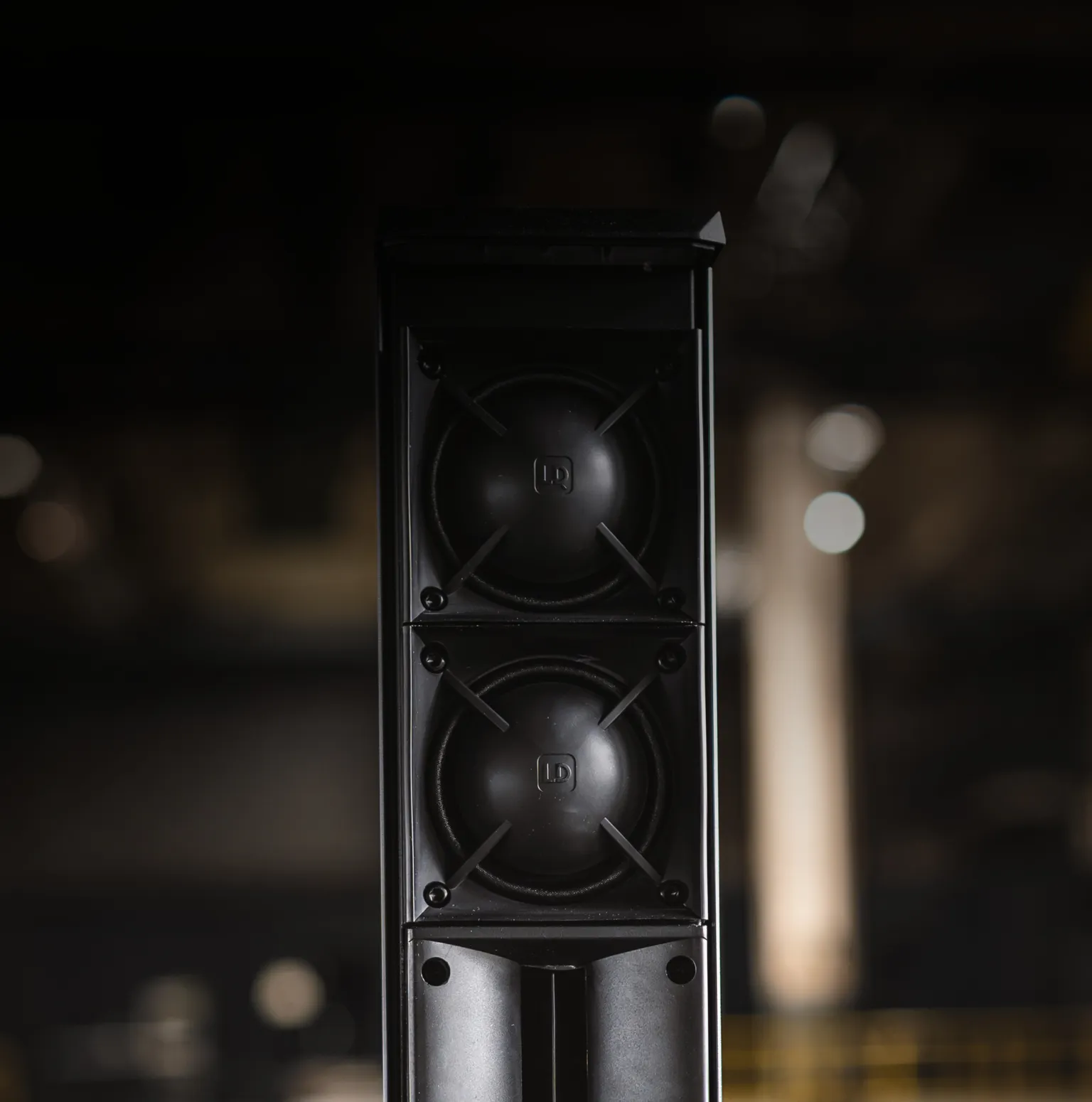

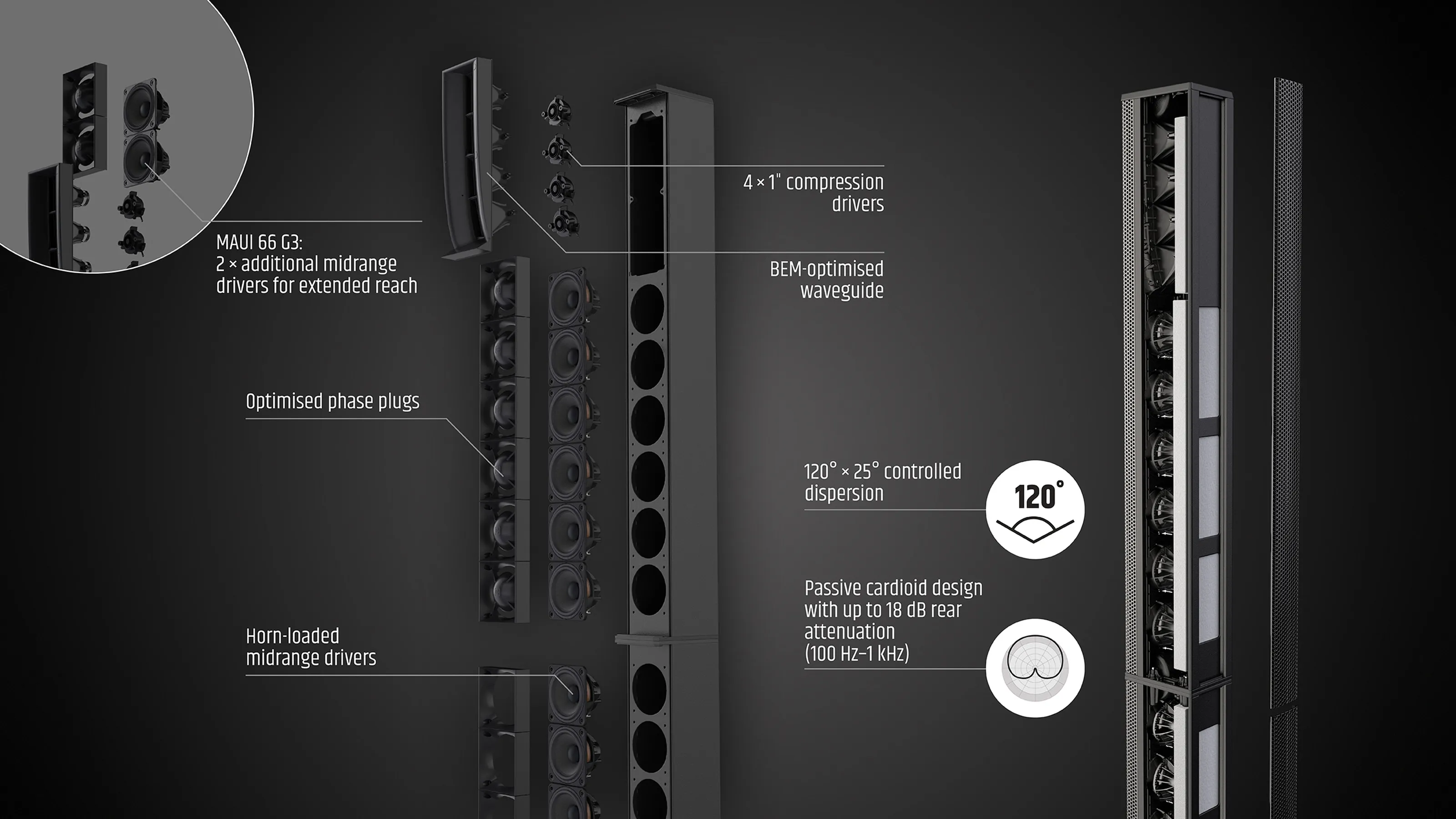

Column:
Clear mids and controlled highs.

In the upper column, the BEM-optimised waveguide and phase plugs provide controlled, even dispersion across the mid and high frequencies. Horn-loaded midrange drivers in the lower column increase efficiency and headroom, supporting powerful, clear reproduction of vocals and instruments.

The MAUI 66 G3 also features two midrange drivers above the high-frequency section to extend midrange performance over greater distances.

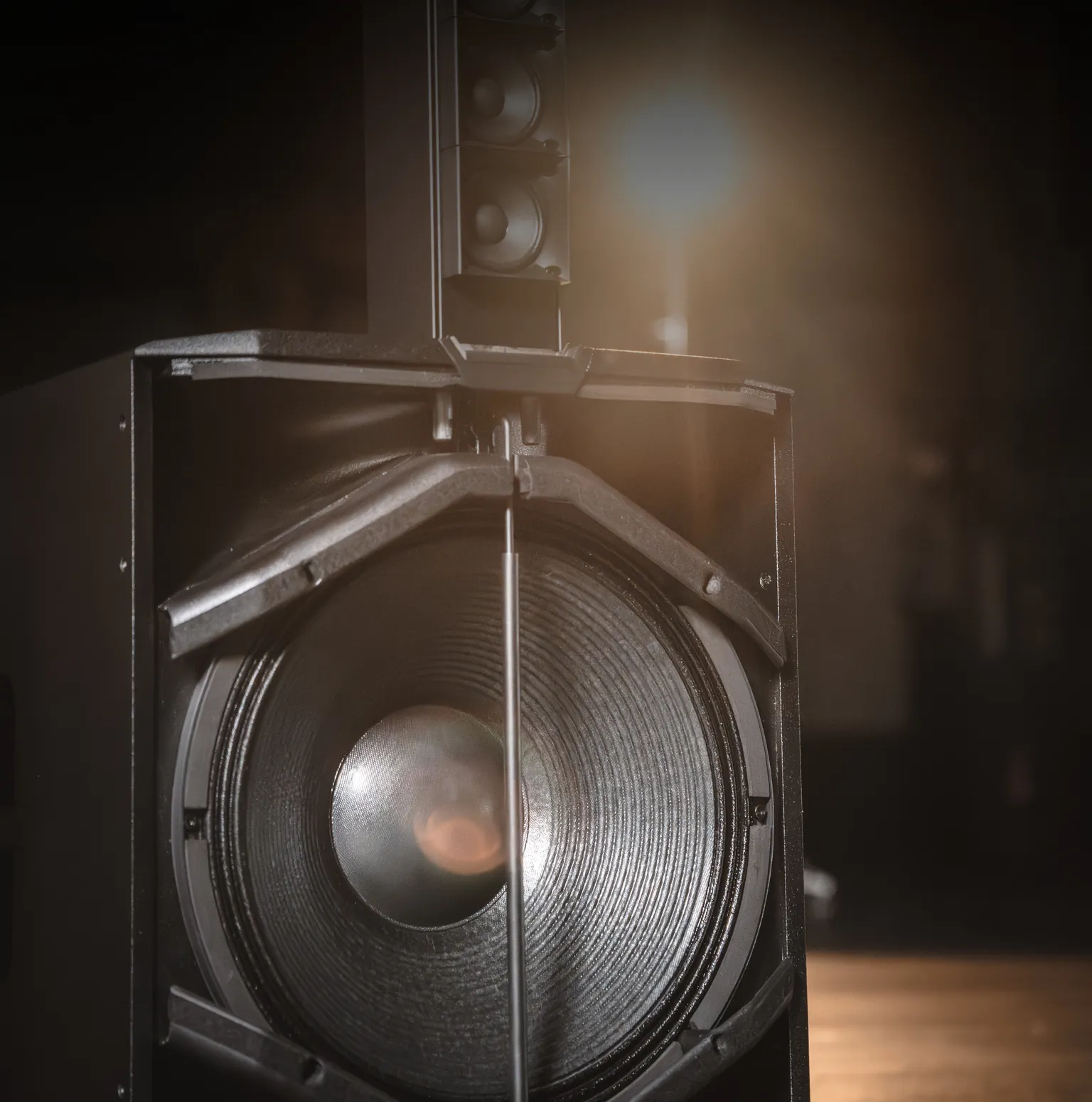

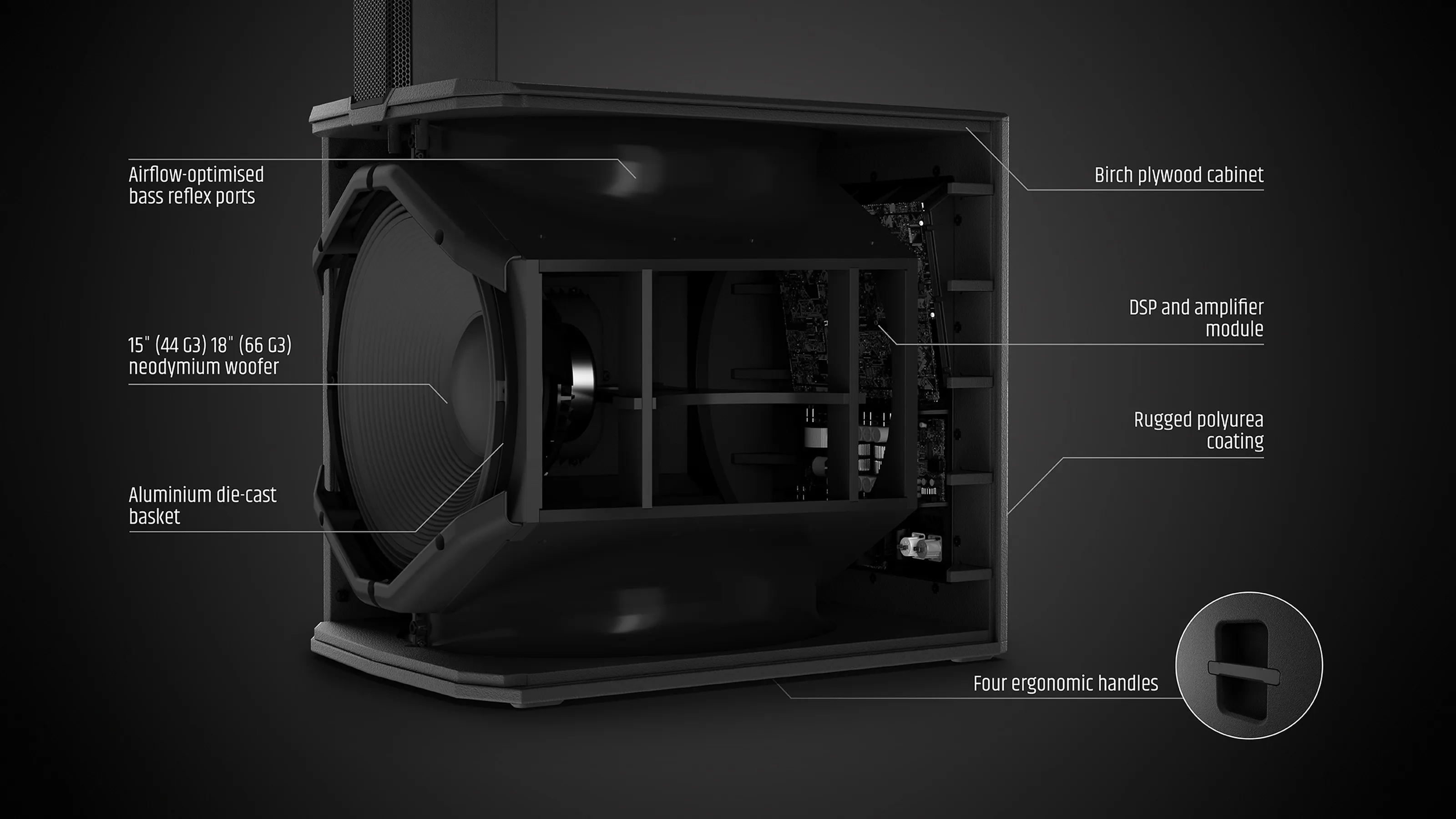

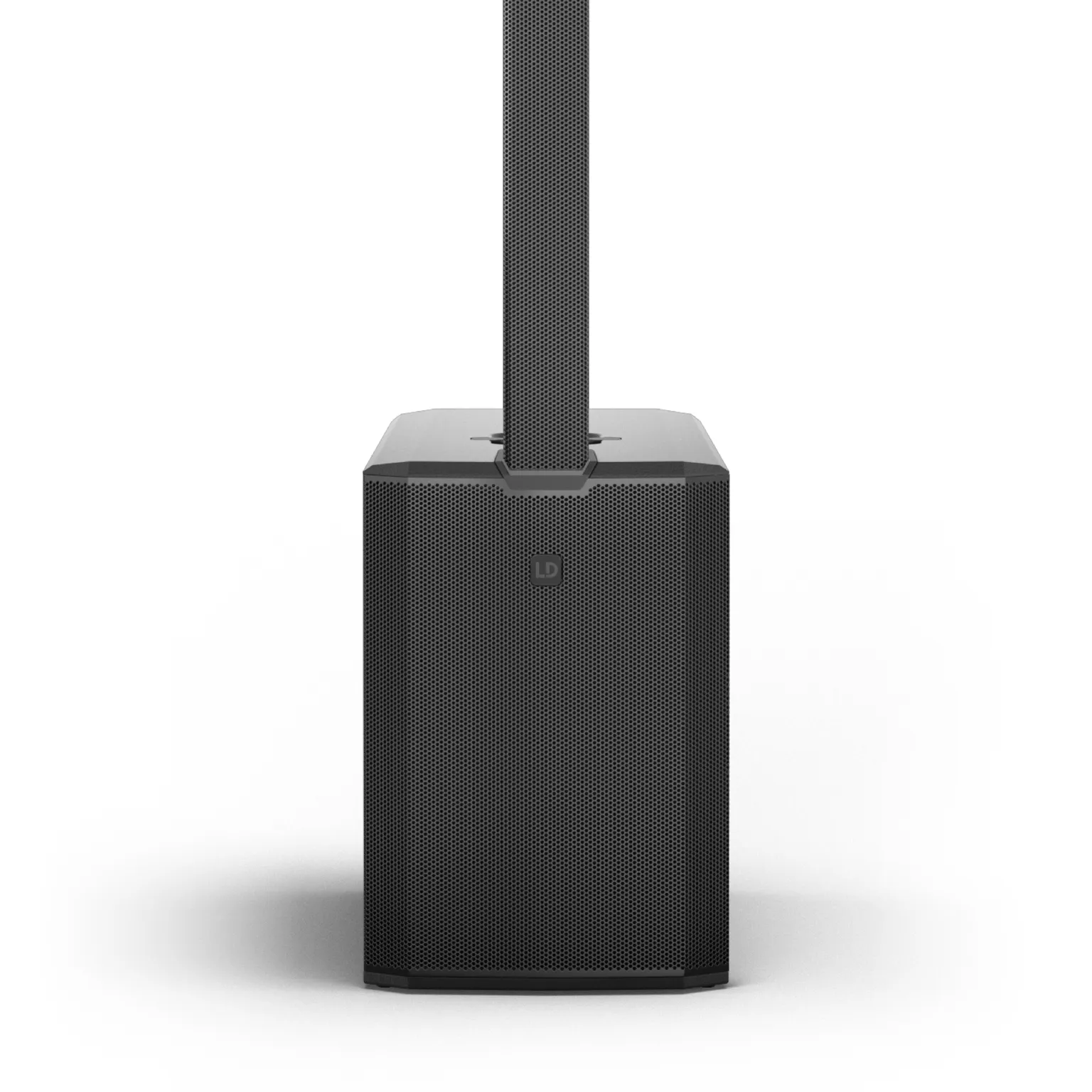

Subwoofer:
Engineered for deeper bass.

The MAUI 44 G3 and MAUI 44 G3 MIX use a 15″ subwoofer with bass extending down to 34 Hz. The MAUI 66 G3 features a larger 18″ subwoofer with a low-frequency response extending down to 28 Hz. All three models feature a low-tuned bass reflex design for powerful, precise bass reproduction.

Elliptical, airflow-optimised bass reflex ports reduce turbulence and unwanted port noise, keeping the bass clean, defined and punchy even at high output levels.

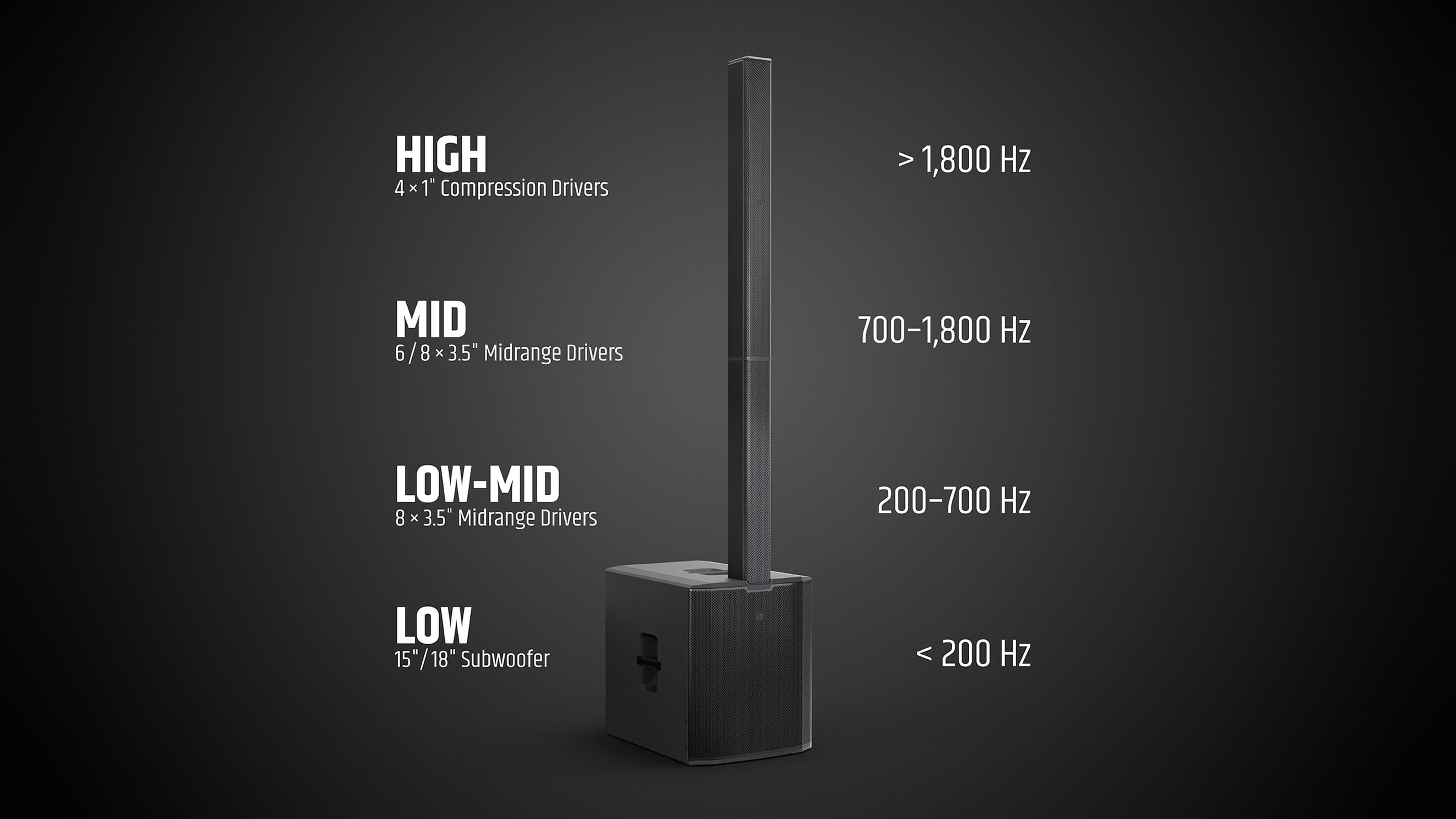

Fully active 4-way system

The fully active 4-way system divides the audio signal into separate frequency bands at 200 Hz, 700 Hz and 1,800 Hz. Each band is handled by a dedicated driver group and amplifier channel. This allows the subwoofer, lower and upper midrange and high-frequency section to be optimised for their specific tasks. Built-in DynX® DSP handles signal processing and protects the system with peak, RMS and thermal limiters.

SETUPS

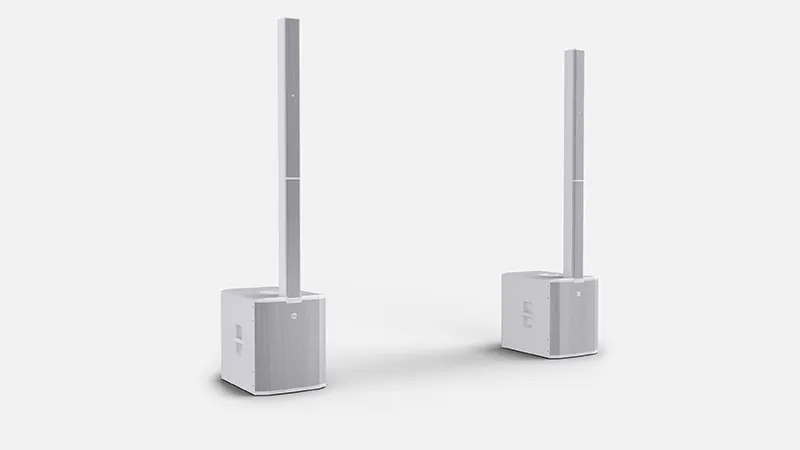

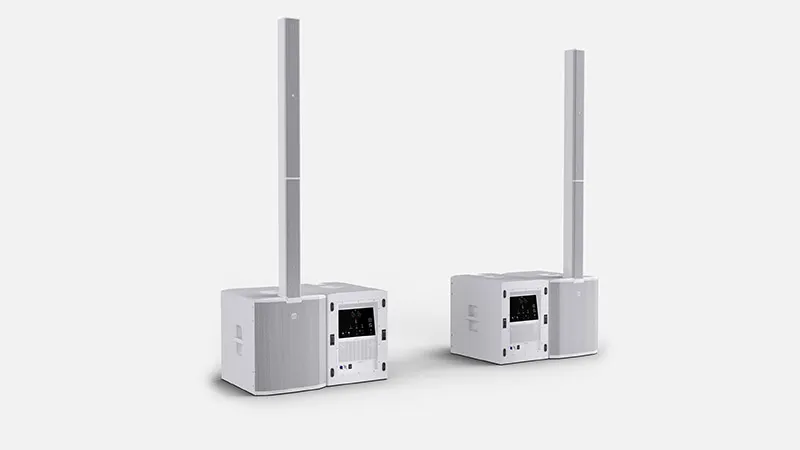

Stereo Setup

With plug-in column connections, MAUI® systems can be assembled quickly without speaker stands or connecting cables between the subwoofer and column. For a stereo setup, connect both systems to power and your audio source.

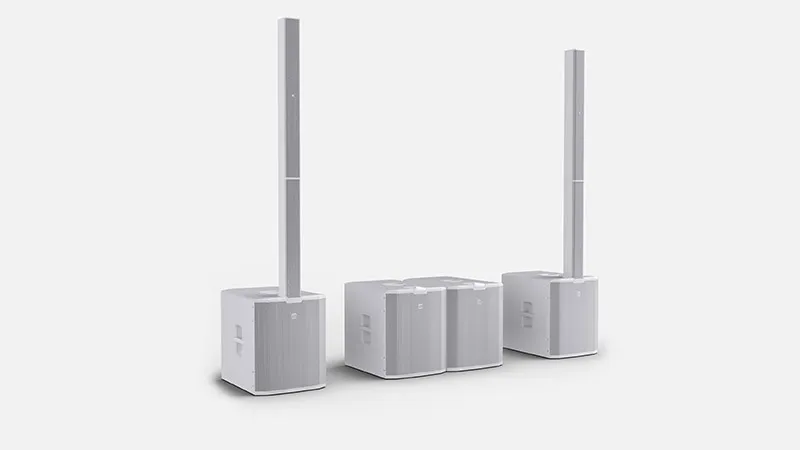

Stereo Setup + Cardioid

Add a matching second subwoofer facing backwards and select the Cardioid preset. This increases bass output towards the audience while reducing low-frequency sound behind the system – useful when you want greater control over where the bass goes.

Stereo Setup + Bass Boost

Add a matching second subwoofer facing forwards for a bass boost of up to +6 dB.

Stereo Setup

With plug-in column connections, MAUI® systems can be assembled quickly without speaker stands or connecting cables between the subwoofer and column. For a stereo setup, connect both systems to power and your audio source.

Stereo Setup + Cardioid

Add a matching second subwoofer facing backwards and select the Cardioid preset. This increases bass output towards the audience while reducing low-frequency sound behind the system – useful when you want greater control over where the bass goes.

Stereo Setup + Bass Boost

Add a matching second subwoofer facing forwards for a bass boost of up to +6 dB.

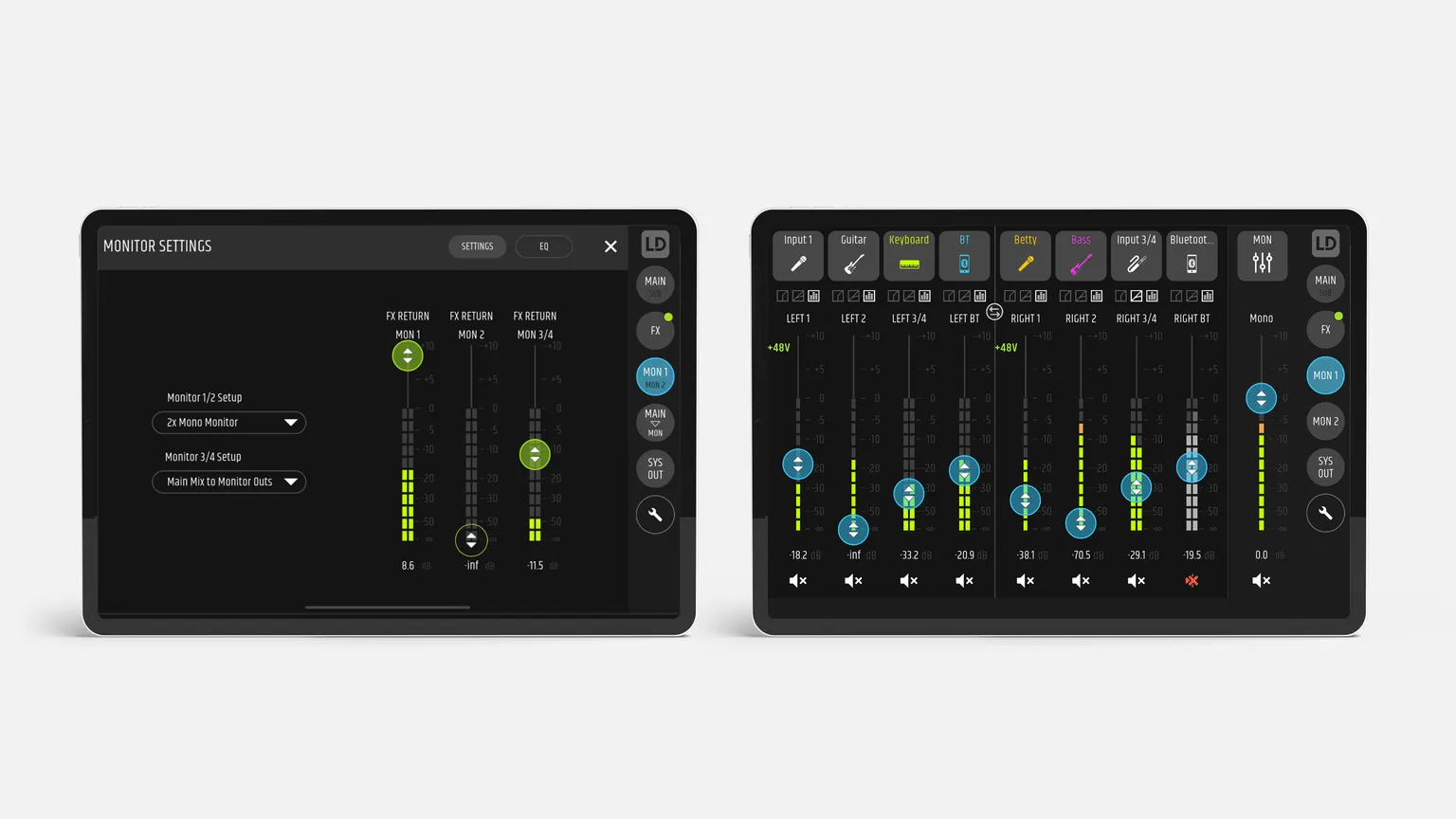

MAUI® MIX APP

Control your mix from where you hear it.

Use the free MAUI MIX app for iOS and Android to control all mixer and system settings on your MAUI 44 G3 MIX wirelessly. Move around the room during soundcheck, listen from the audience’s perspective and make adjustments on the spot – without returning to the control panel. When two MAUI 44 G3 MIX systems are linked via SysLink®, you can control the stereo setup centrally and access all 16 input channels.

Download from the App Store

Watch Video

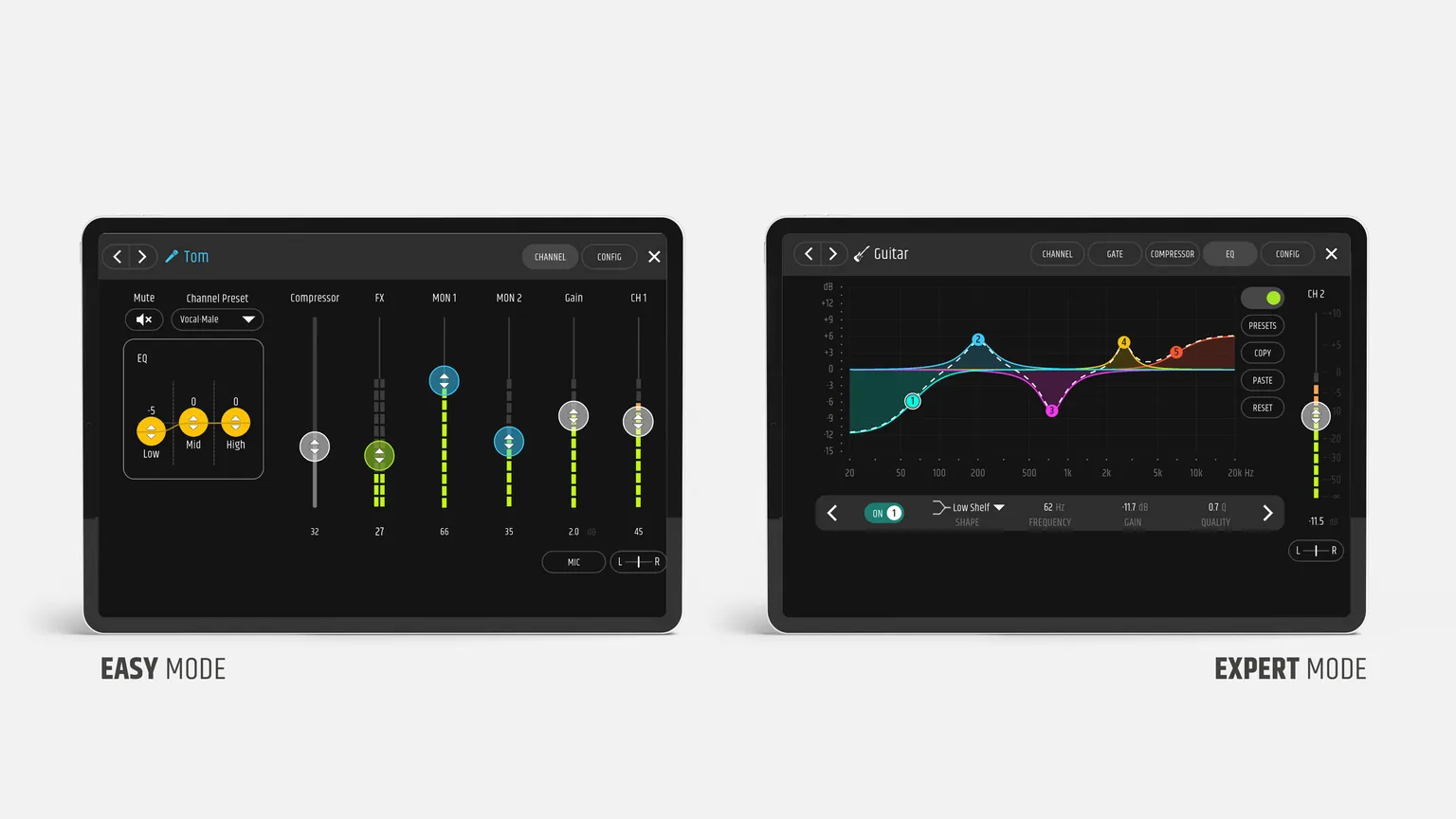

Easy & Expert Mode

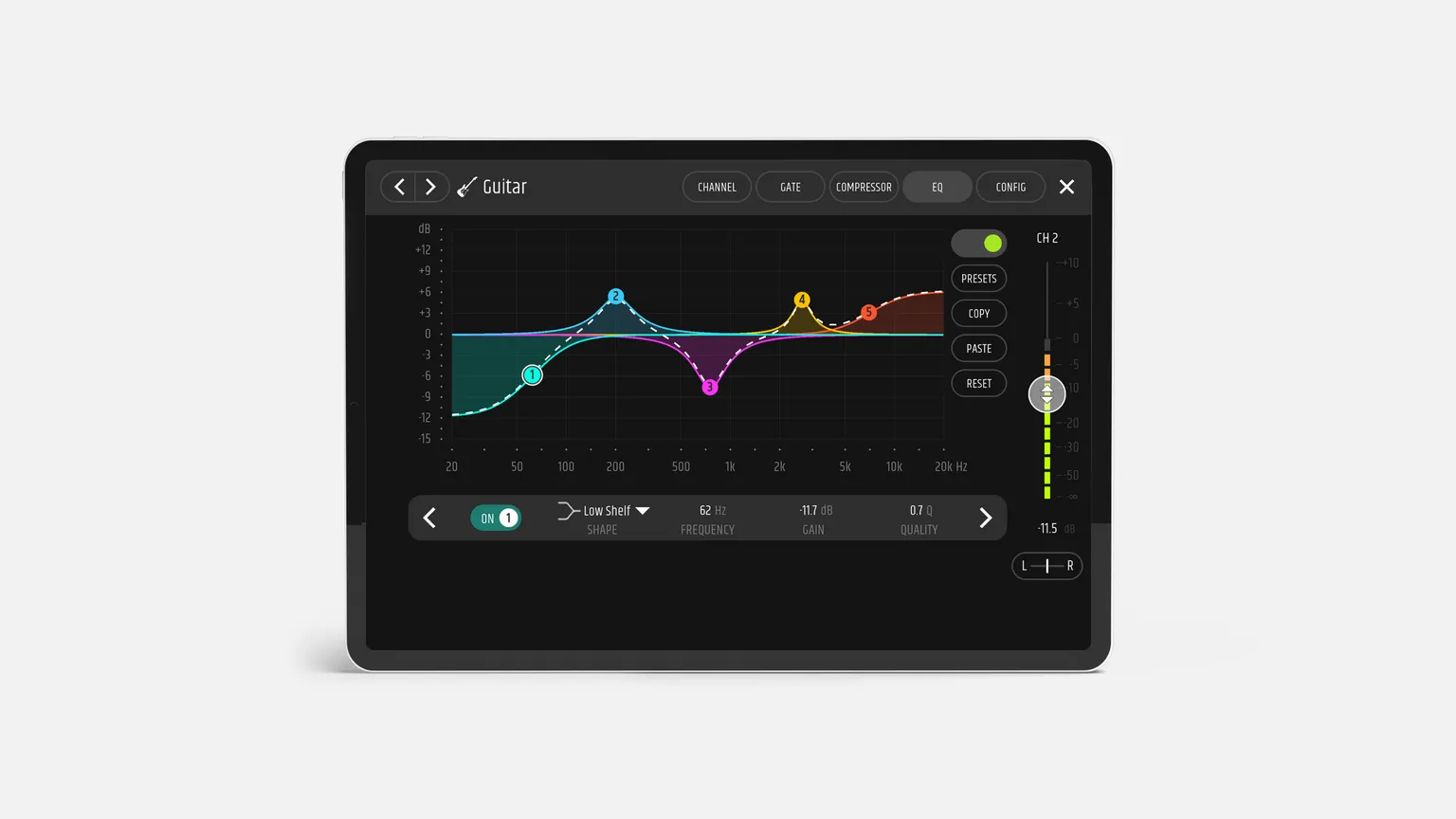

EQ settings and effects

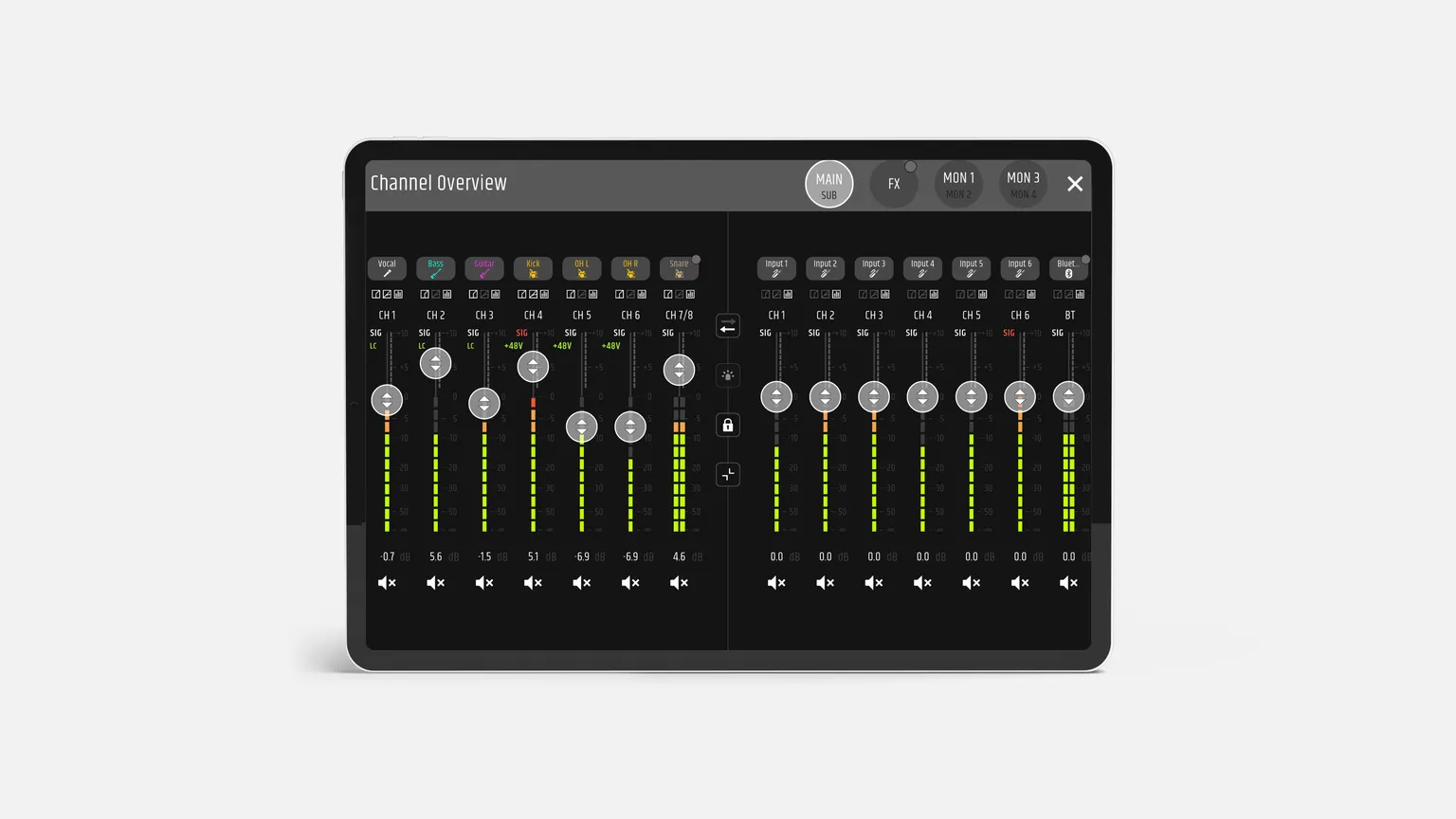

Personalised channel overview

Individual monitor mixes

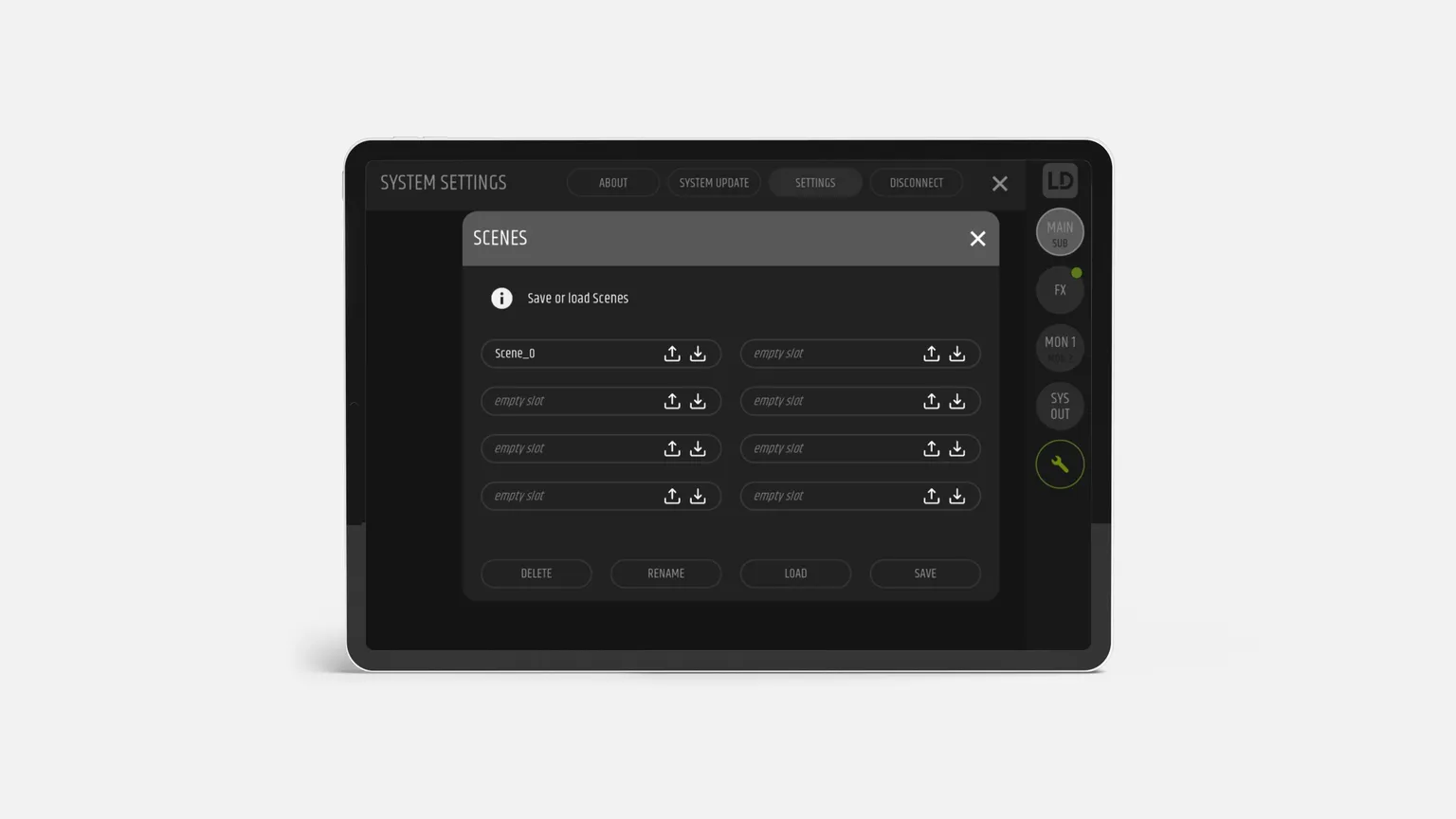

Save and share

TRANSPORT

Ergonomic handles

Four generously sized ergonomic handles make the subwoofer easier to carry: one on top, one underneath and one on each side.

Recessed handles in the end caps

Recessed handles in the column end caps give you a secure grip when assembling or dismantling the system.

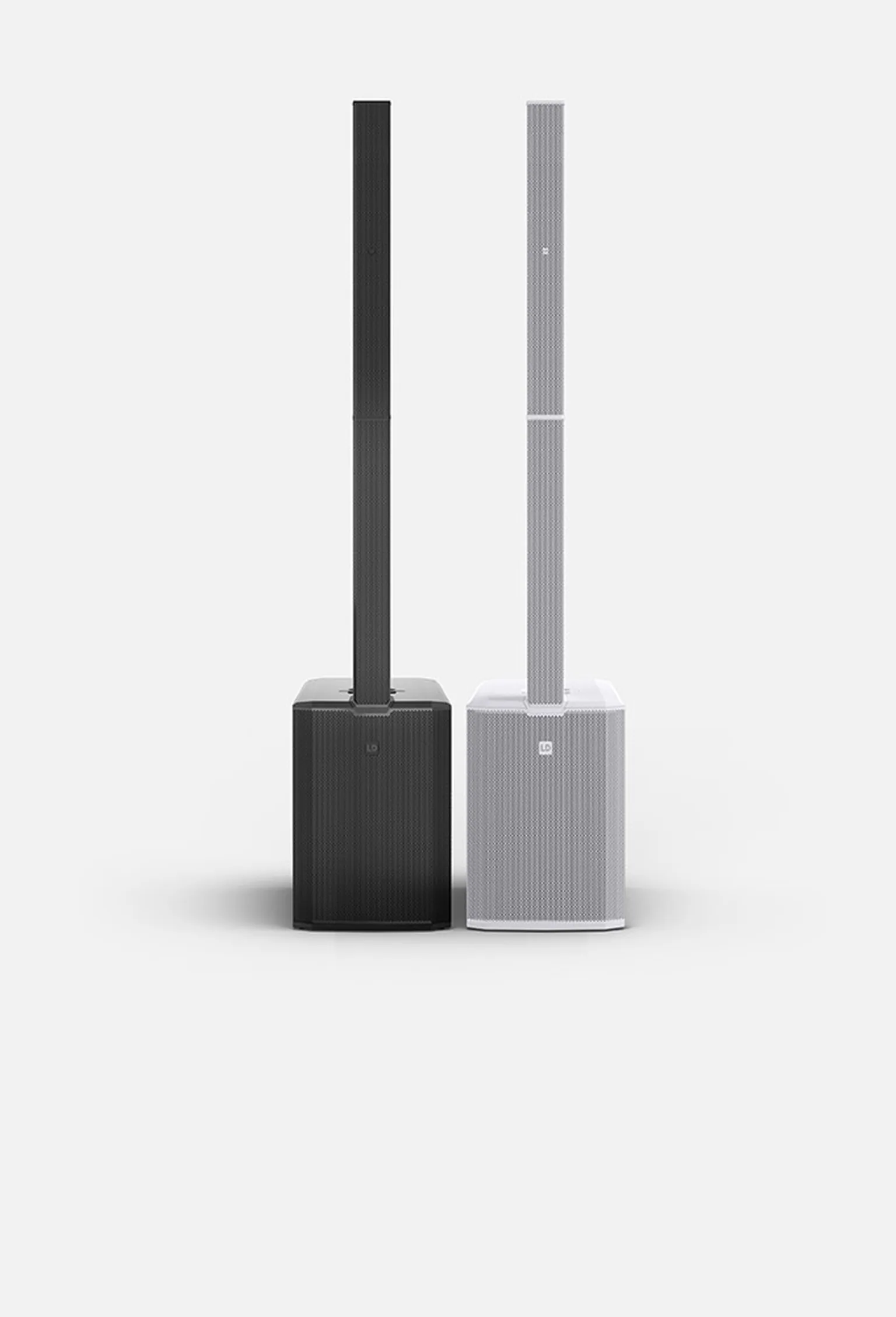

COMPARE PRODUCTS

New

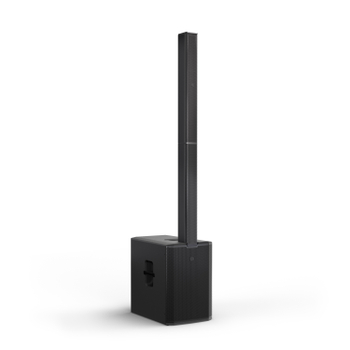

MAUI® 44 G3

4-Way Cardioid Column PA System

Details

3,600 WPeak power

133 dBMax. SPL (peak)

15"Subwoofer

14 × 3.5″Midrange drivers

4 × 1"High-frequency drivers

-Integrated mixer

New

MAUI® 44 G3 MIX

4-Way Cardioid Column PA System with Digital Mixer

Details

3,600 WPeak power

133 dBMax. SPL (peak)

15"Subwoofer

14 × 3.5″Midrange drivers

4 × 1"High-frequency drivers

Digital 8-channel mixerwith integrated effects

New

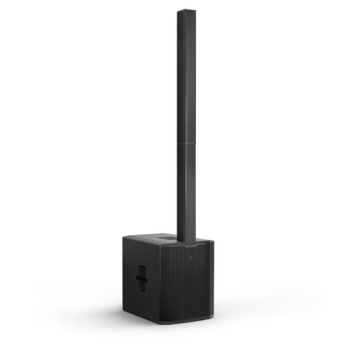

MAUI® 66 G3

4-Way Cardioid Column PA System

Details

3,800 WPeak power

135 dBMax. SPL (peak)

18"Subwoofer

16 × 3.5″Midrange drivers

4 × 1"High-frequency drivers

-Integrated mixer

Compare full specs
