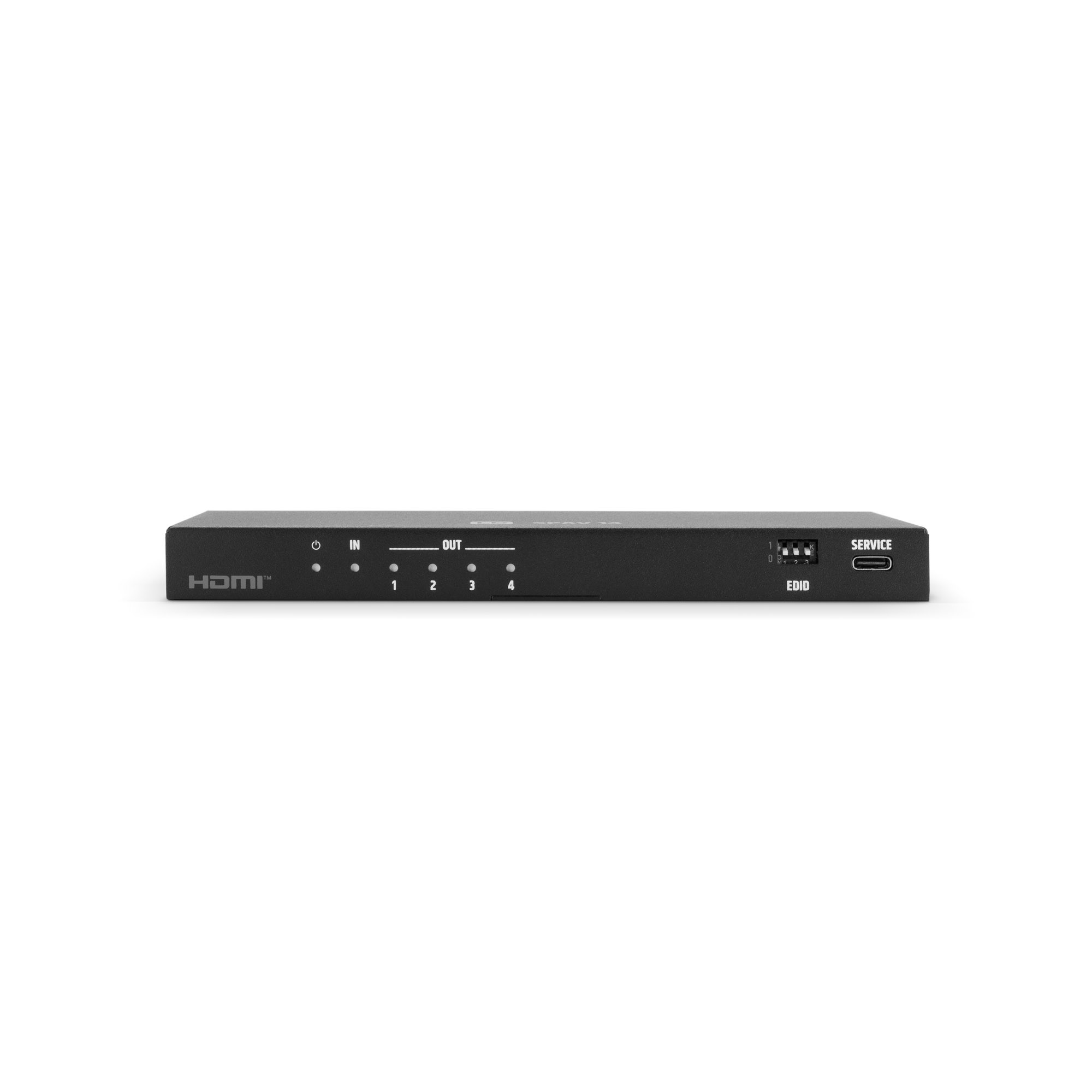

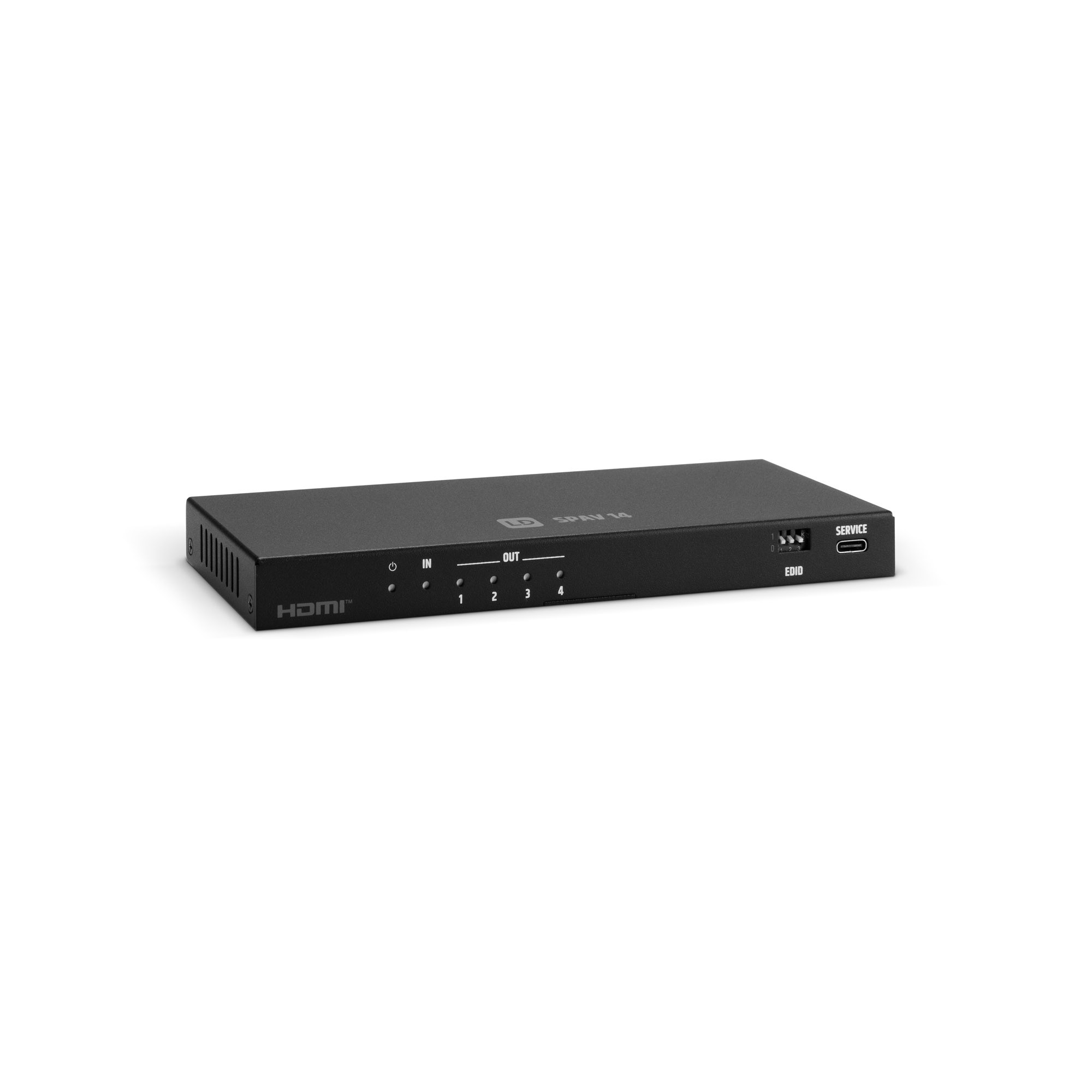

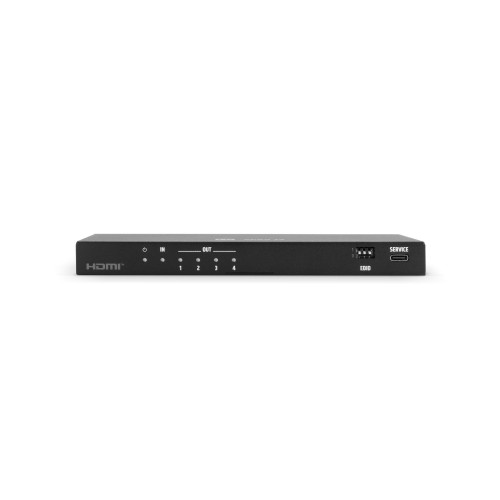

SPAV 14 1x4 8K HDMI Splitter and Audio Extractor

The SPAV 14 from the TIVA® Series is a 1×4 8K HDMI™ splitter with an integrated audio extractor. It distributes one high-resolution HDMI™ signal to up to four displays while outputting the audio separately. Supporting HDMI™ 2.1, HDCP 2.3, and a 48 Gbps bandwidth, it ensures full compatibility with the latest 8K and 4K AV standards.

The splitter handles video resolutions up to 8K @ 60 Hz (4:2:0, 12-bit) or 4K @ 120 Hz (4:4:4, 12-bit) and transmits HDR10, HDR10+, Dolby Vision, and HLG formats. In mixed-display setups, HDR-to-SDR conversion guarantees optimal image quality, while EDID management maintains signal stability.

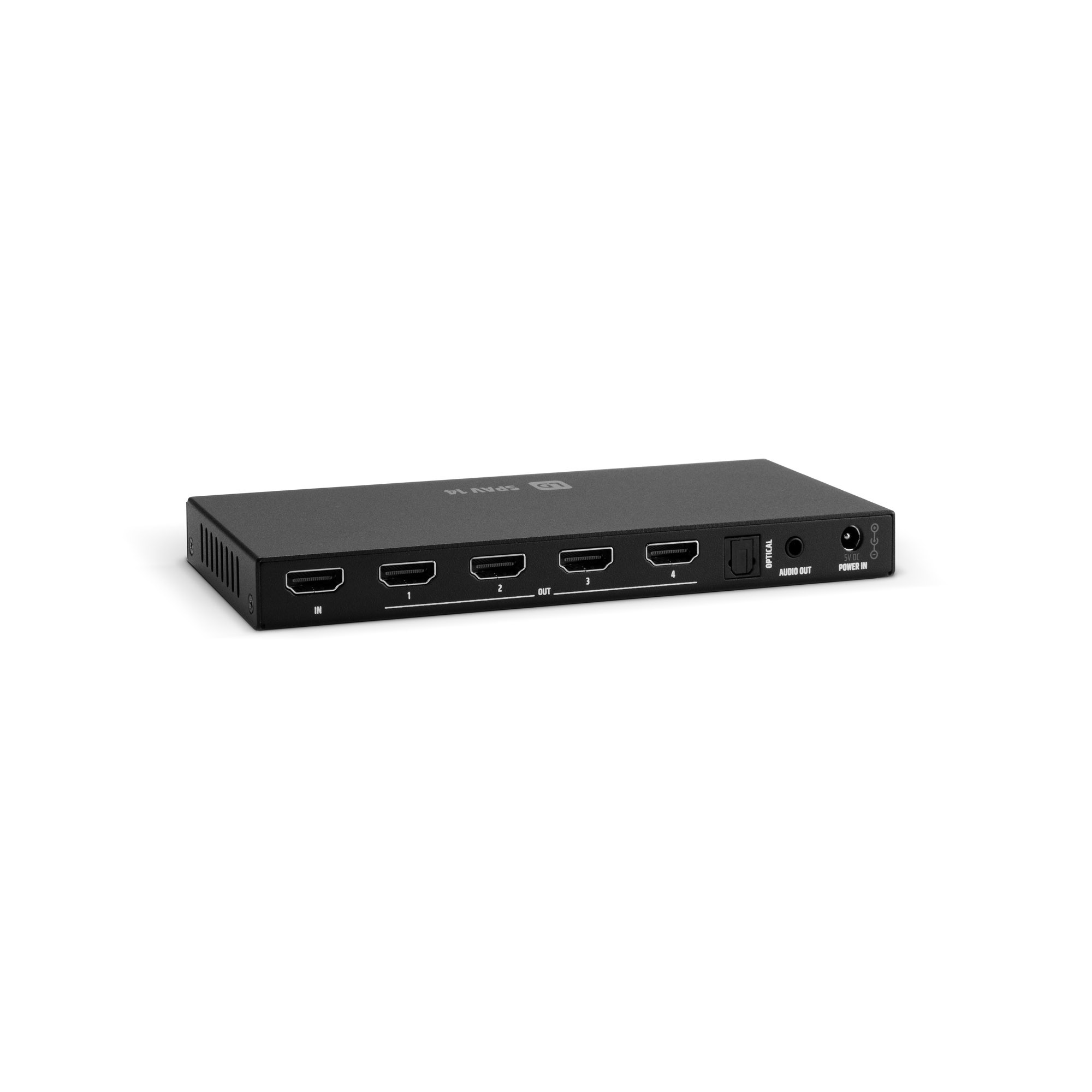

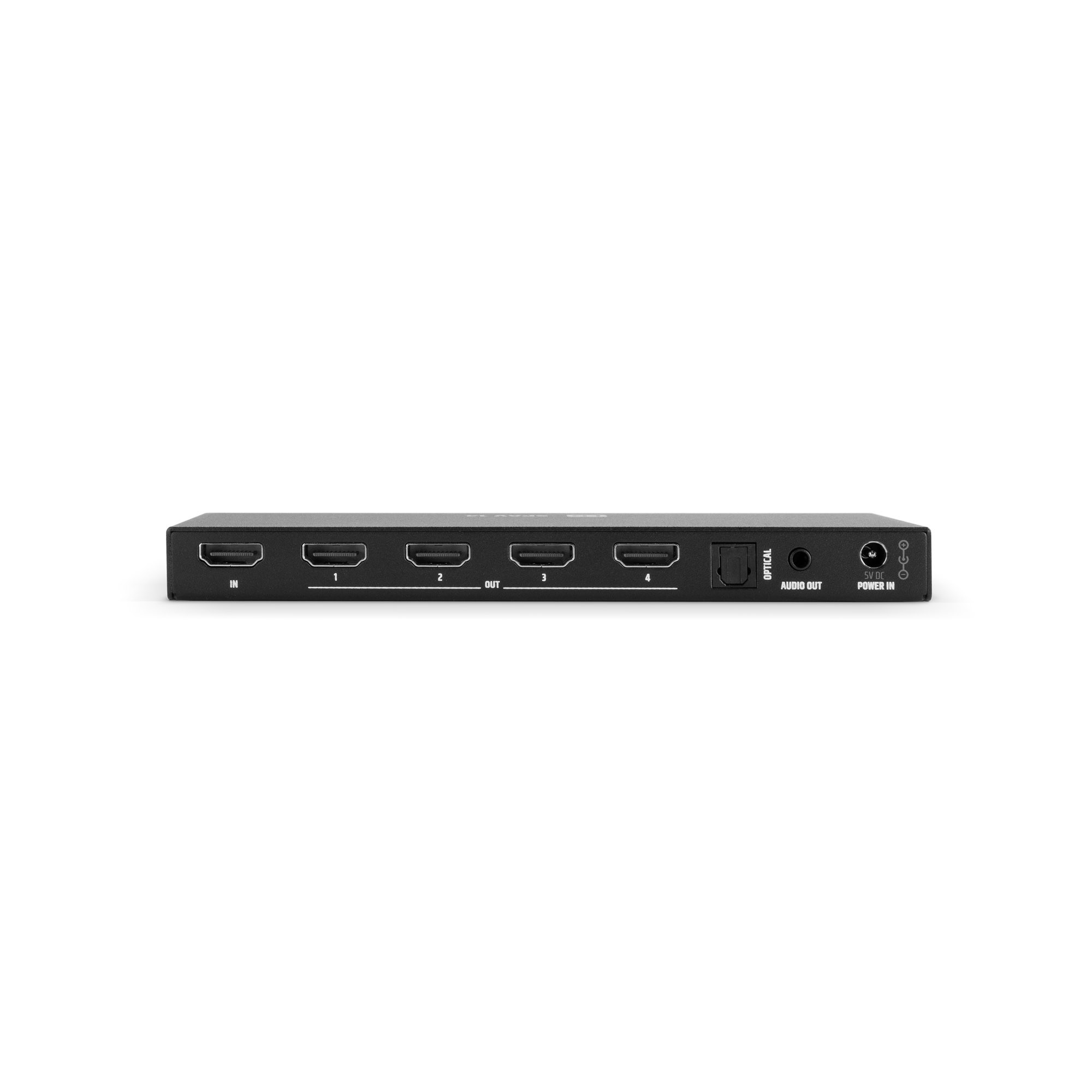

The built-in audio extractor outputs Dolby/DTS 5.1 via S/PDIF and LPCM 2.0 via a 3.5 mm mini-jack, providing flexible audio routing to external amplifiers or speaker systems.

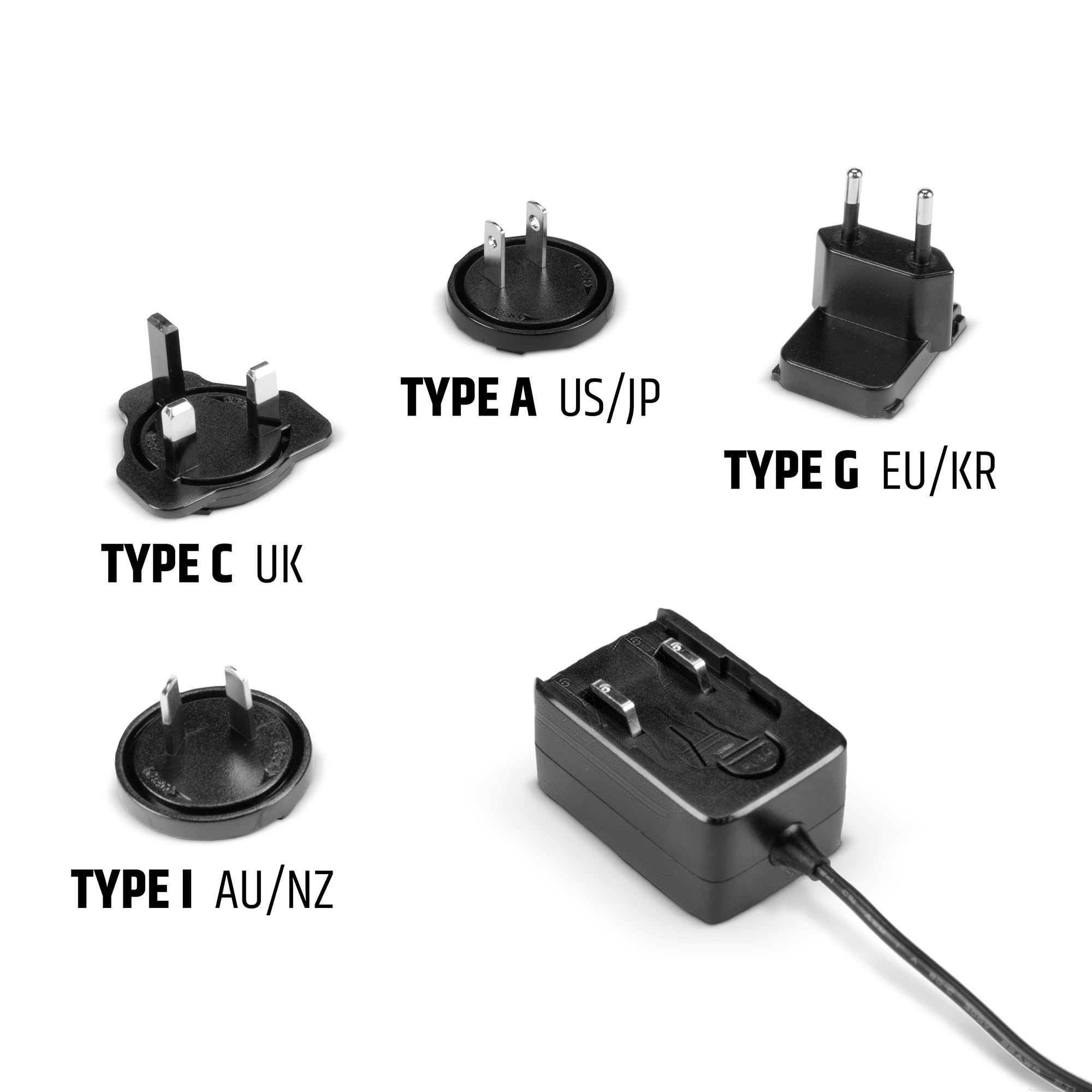

With its compact design, status LEDs, and 5 V DC power supply, the SPAV 14 integrates easily into professional AV environments. Ideal for conference and training rooms, digital signage, control rooms, showrooms, home cinemas, or other setups in which reliable signal distribution, high-quality video, and versatile audio connectivity are required.
