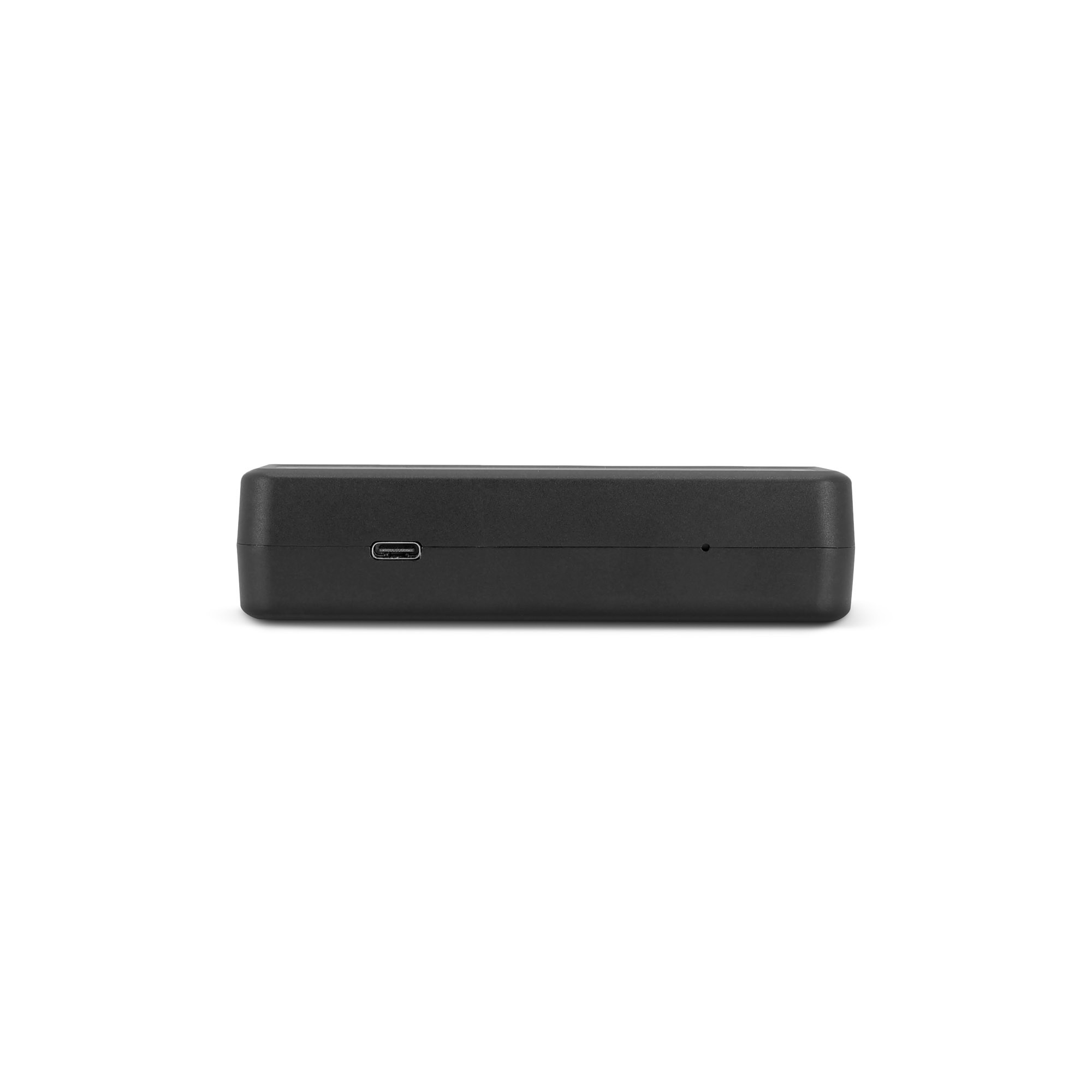

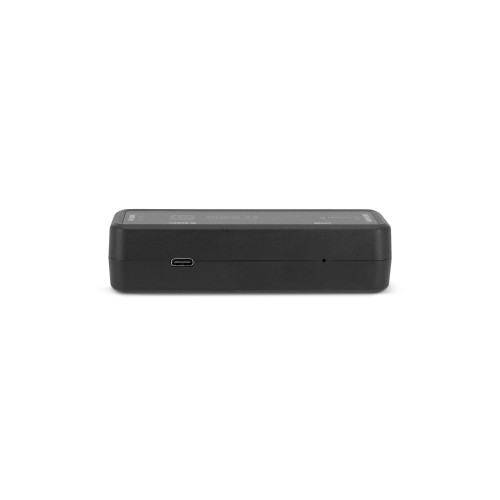

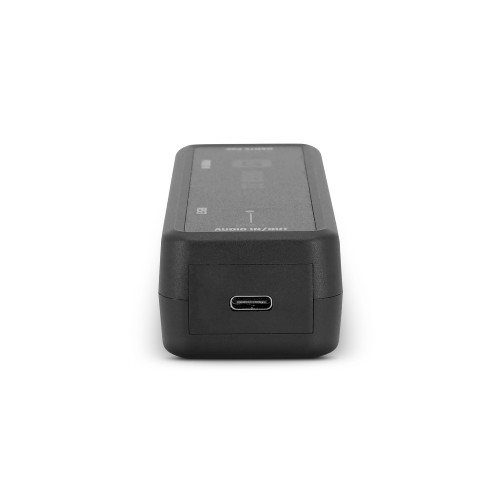

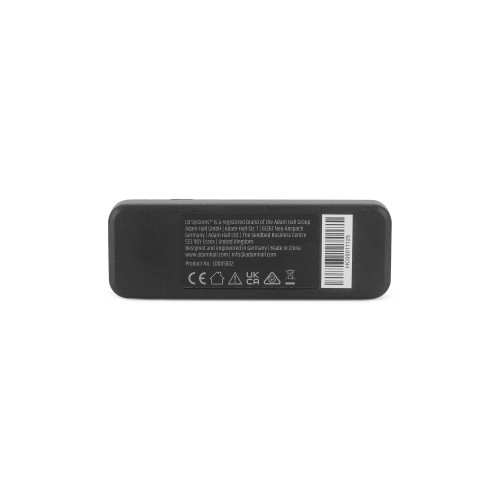

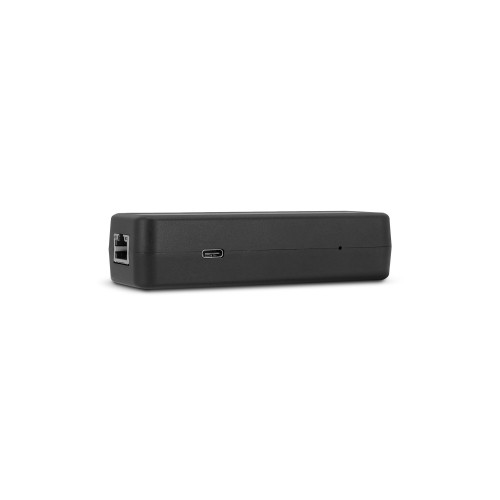

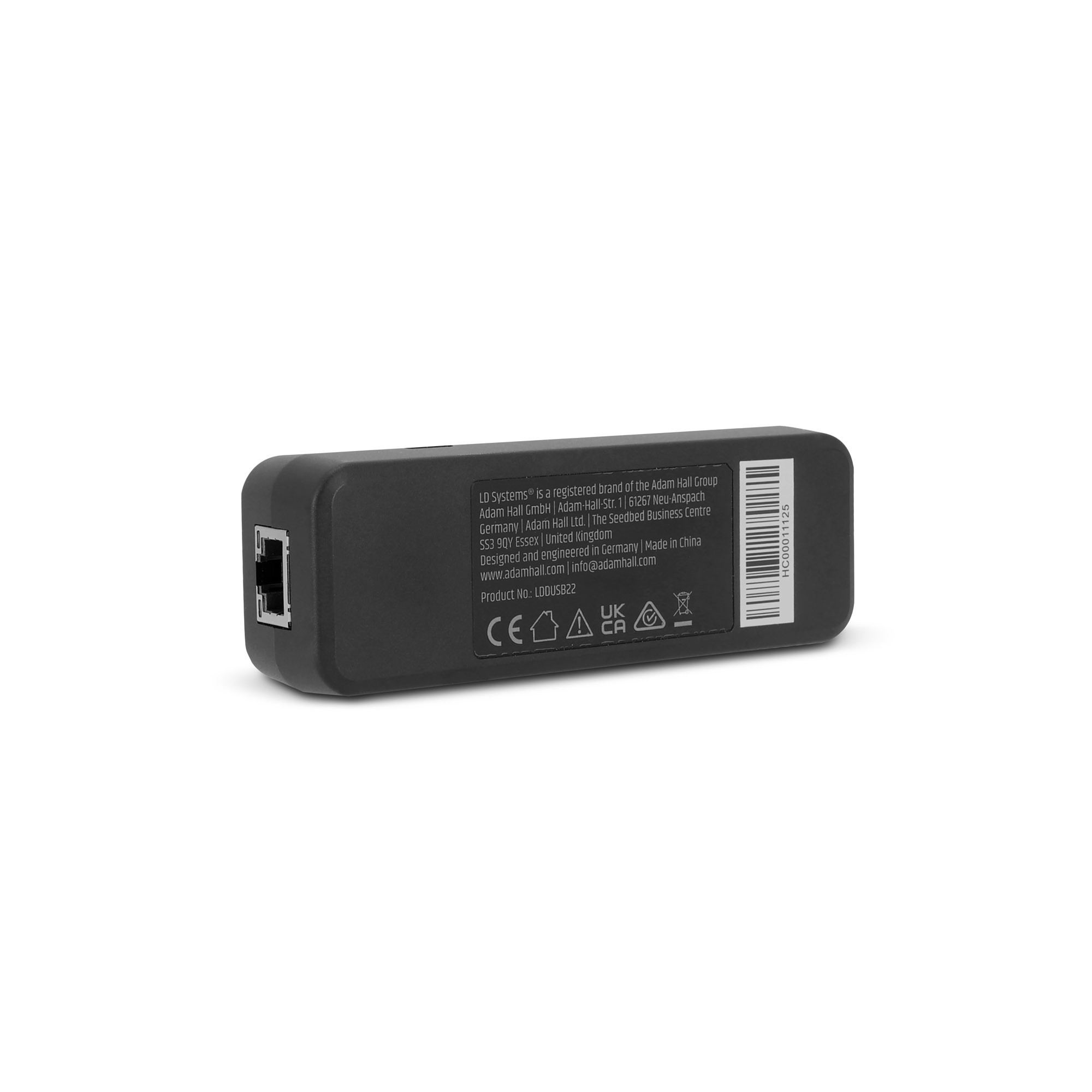

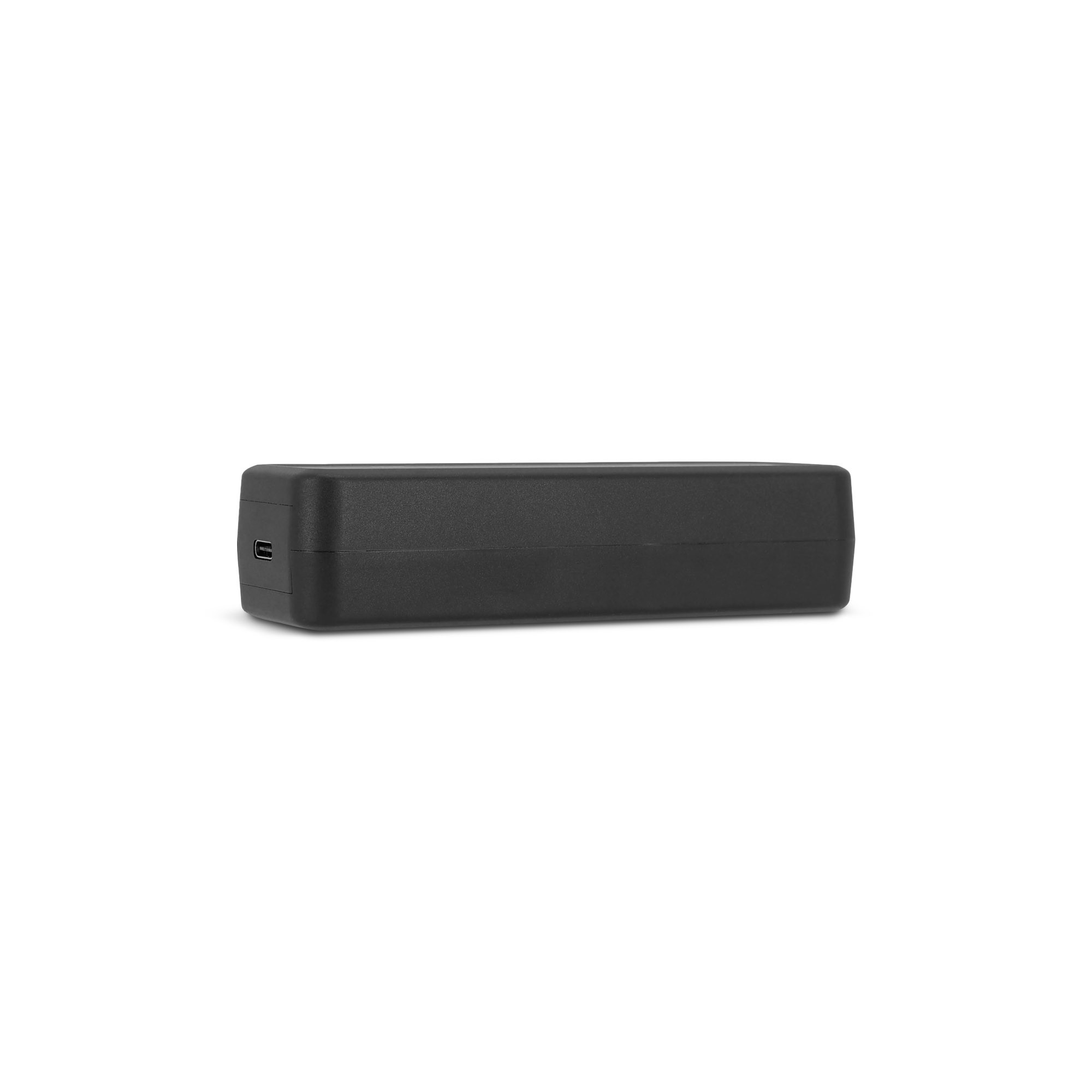

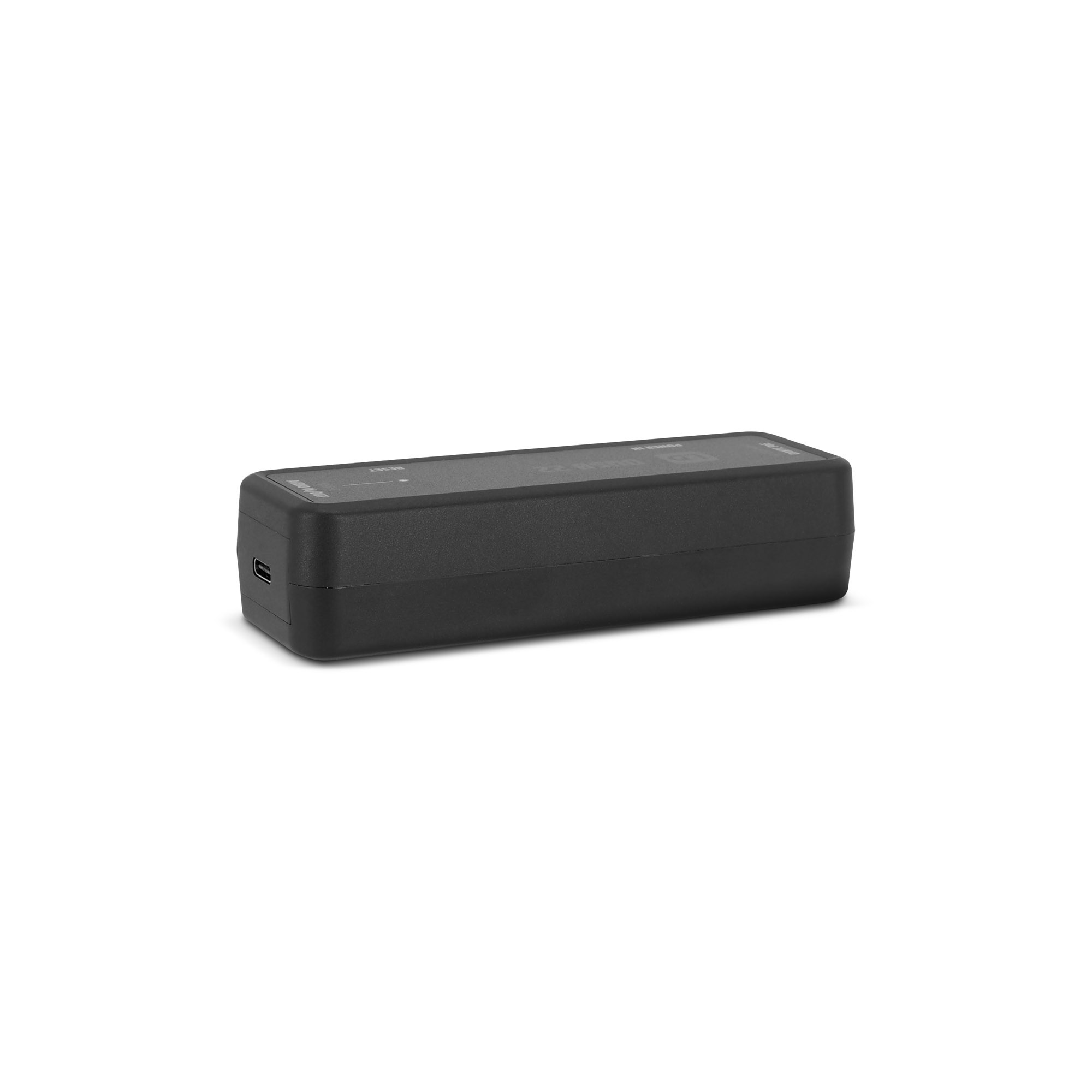

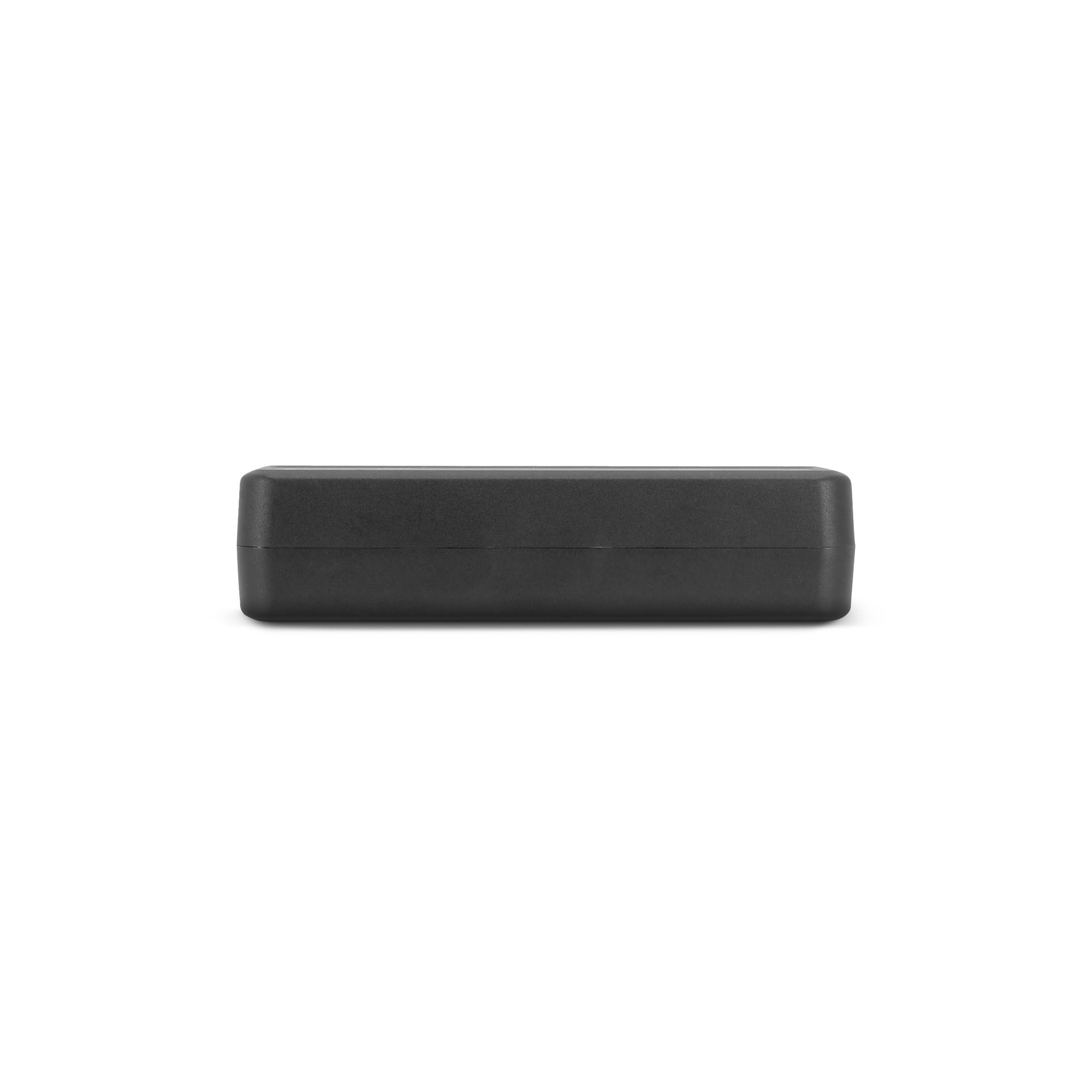

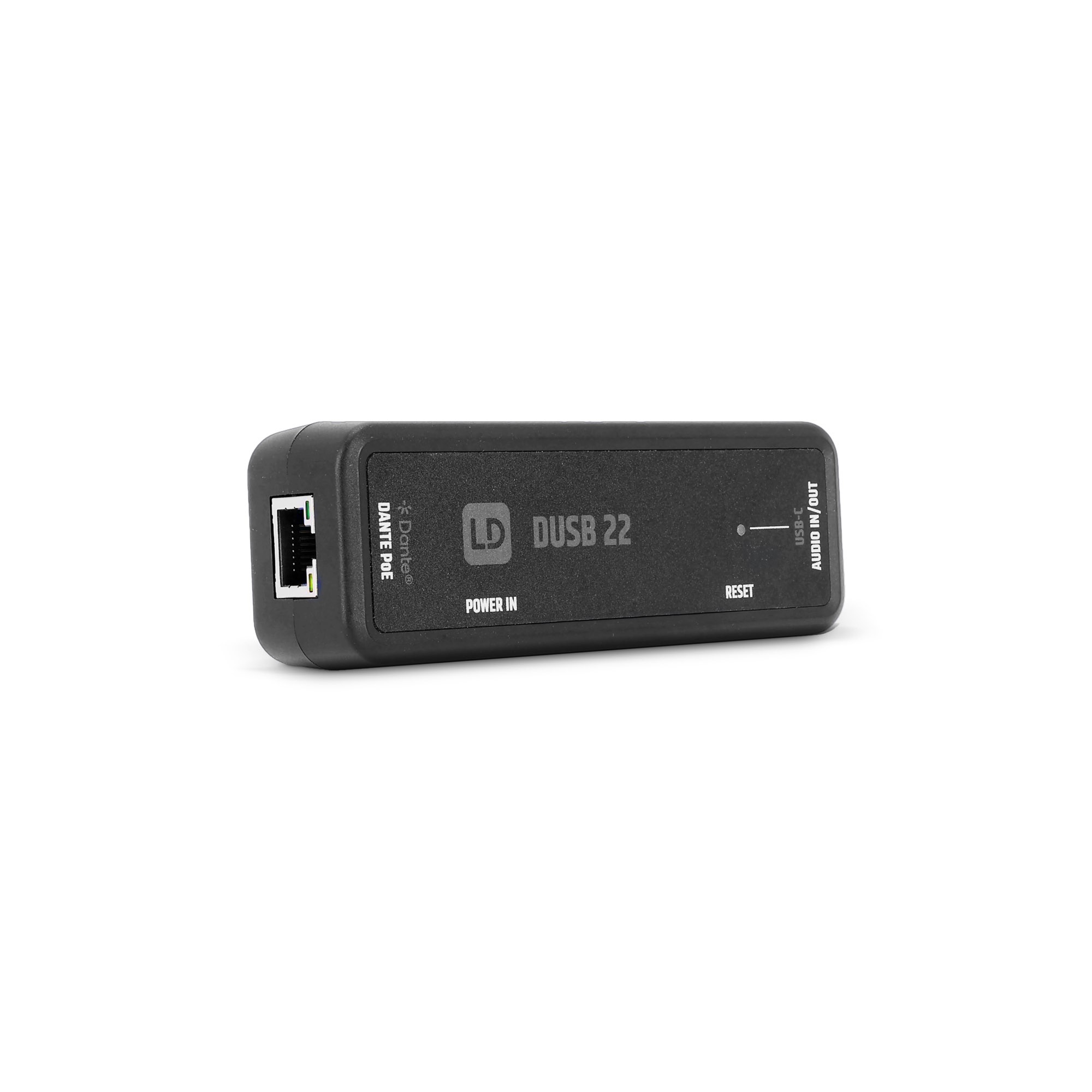

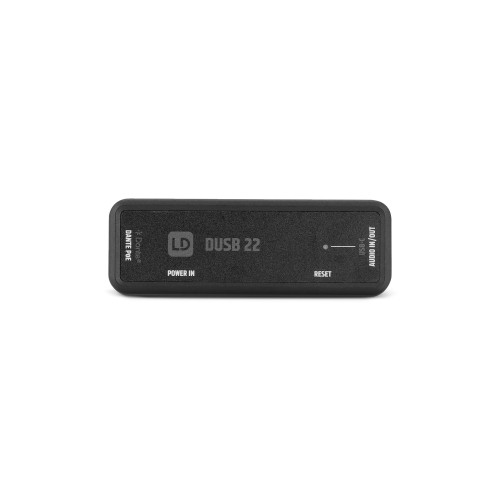

D USB 22 2x2 Dante USB-C Audio Adapter

Item No.: LDDUSB22
Bidirectional Dante® to USB-C audio interface
Plug & Play via USB Audio Device Class 2.0
Configurable via Dante® Controller
AES67 RTP support for wider network interoperability
High-resolution audio: 24-bit at 48 / 96 kHz
Selectable latency: 1, 2, or 5 ms
Powered via PoE or local USB-C
Compact, durable housing for portable use


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Bidirectional Dante® to USB-C audio interface
Plug & Play via USB Audio Device Class 2.0
Configurable via Dante® Controller
AES67 RTP support for wider network interoperability
High-resolution audio: 24-bit at 48 / 96 kHz
Selectable latency: 1, 2, or 5 ms
Powered via PoE or local USB-C
Compact, durable housing for portable use
Description

The 2×2 Dante® USB-C Audio Adapter is a compact, bidirectional Dante® to USB-C audio interface for integrating computers and USB-C devices into professional networked audio systems. It supports true plug & play operation via USB Audio Device Class 2.0, while routing and device settings are easily managed in Dante® Controller. With AES67 RTP support, it also enables wider interoperability in mixed-network environments.

The adapter delivers high-resolution 24-bit audio at 48 / 96 kHz and offers selectable latency options of 1, 2, or 5 ms to match system requirements. For flexible deployment, it can be powered via PoE or locally via USB-C, and its compact, durable housing makes it ideal for portable use, temporary and fixed setups.

Specifications
General
Material
Plastic
Frequency response (±1 dB, rel. Avg)
20 - 20,000 Hz
Colour
Black

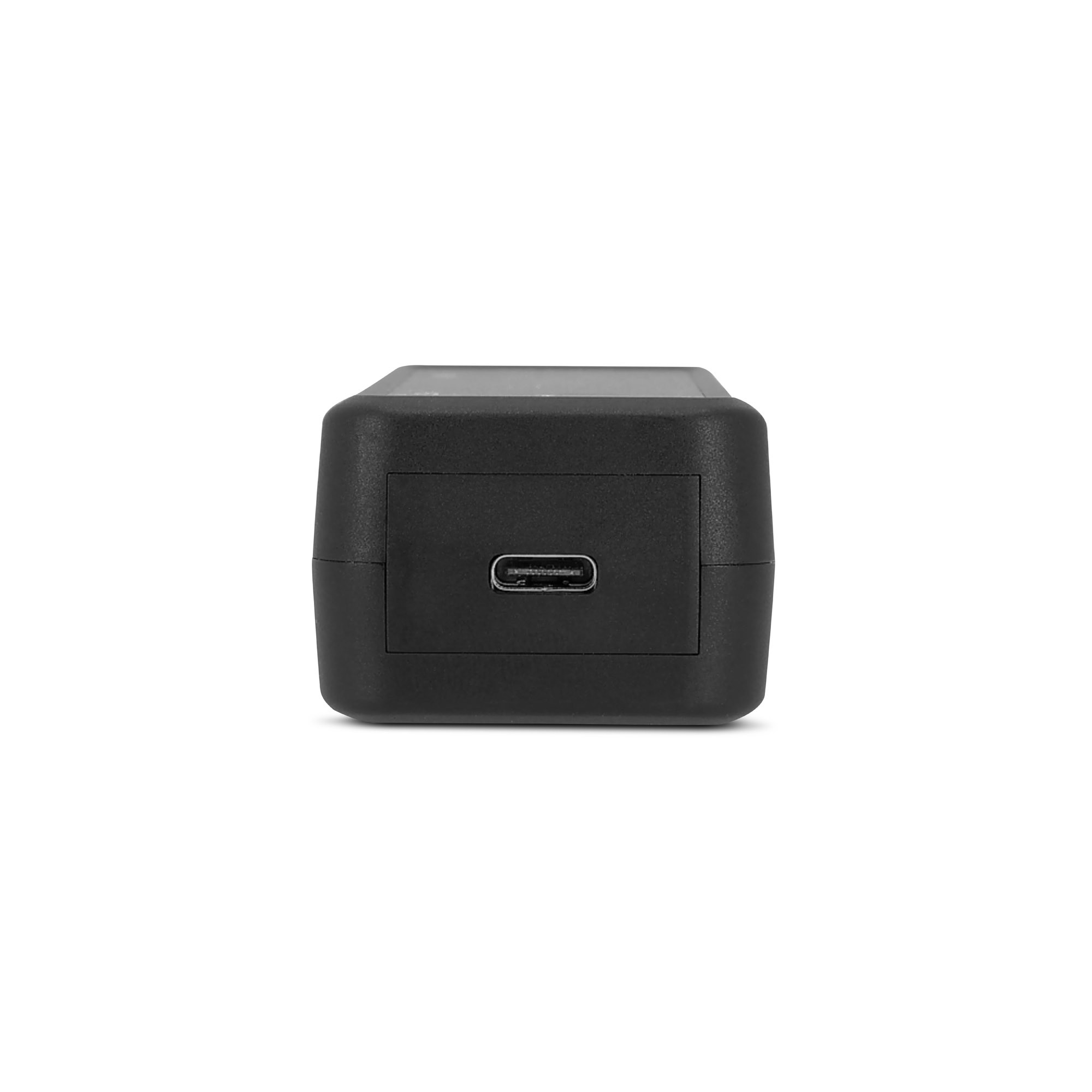

USB connection
Connector type
USB-C plug male
USB standard
USB 2.0 High-Speed
Max. data rate
480 Mbps
Inputs
Number of Dante® inputs
1

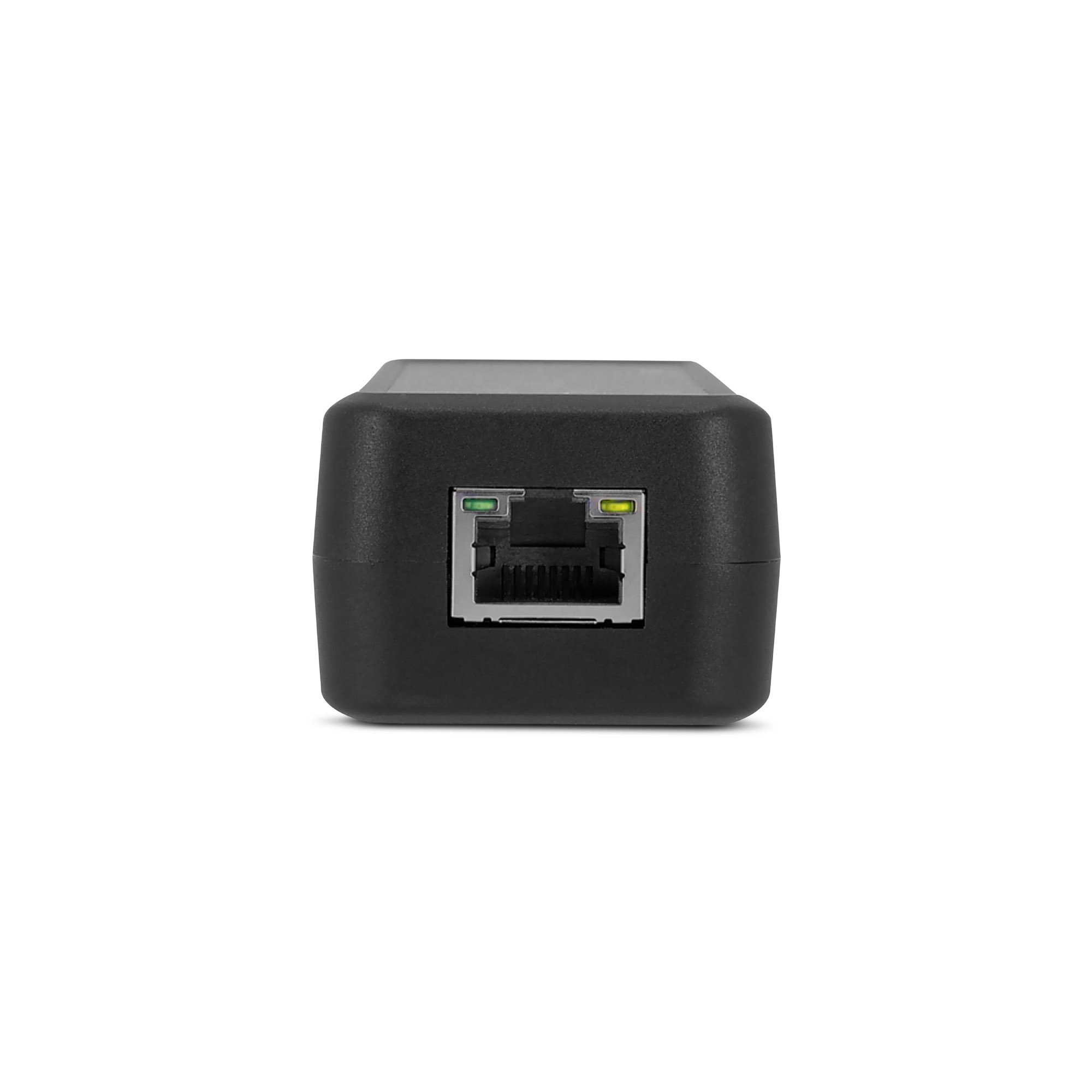

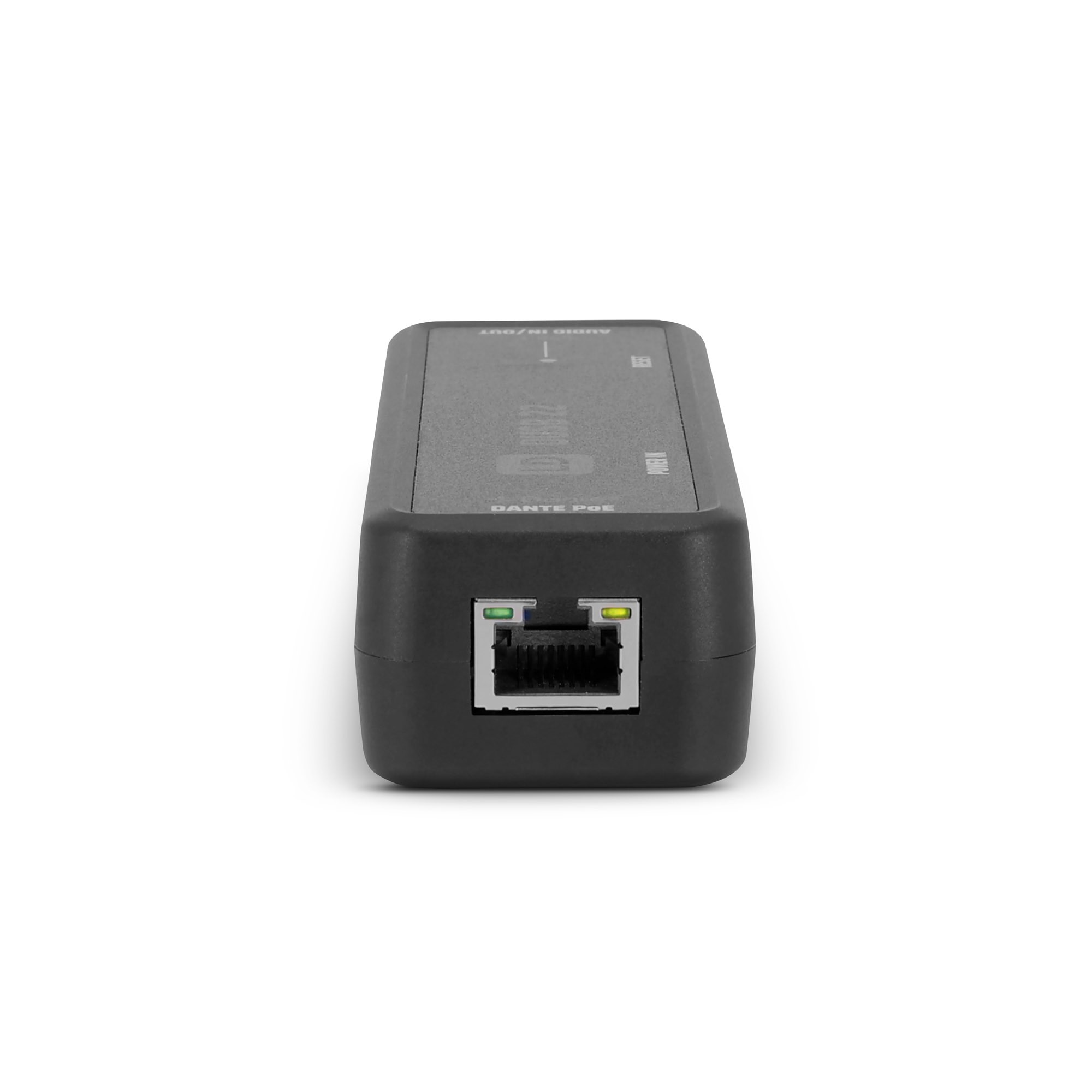

Dante® connector type
RJ-45 socket
Dante®
Channel configurations
Stereo (2 channels)
Sample rate
48 kHz
Bit depth
16 Bit, 24 Bit
Signal processing
Audio formats
PCM 2.0
Internal processing resolution
16 Bit, 24 Bit
Internal sampling rate
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Mains operation
Operation voltage
USB bus powered (5 V DC / 500 mA), PoE (44 V DC - 57 V DC, IEEE 802.3af Class 0)
Rated power
1.65 W
Mains connector
RJ-45 socket
Environmental
Application area
Indoor
Ambient temperature
0 - 40 °C
Maximum air humidity (non-condensing)
80 %
Dimensions & weight
Width
115 mm
Height
28 mm
Depth
40 mm
Weight
94 g
Downloads & links
Buy

For a quote on this item, please contact our sales department or make an appointment with our sales representatives.
