MAILA SUB 15 FB Flying Bracket for MAILA SUB 15 F (P)
Item No.:
LDMAILASUB15FB
Series:
MAILA®
Flight hardware for mounting MAILA SUB 15 F (P)
Supports 6 × SUB 15 F (P) or up to 300 kg total load
Can be attached to the bottom of the subwoofer to suspend a MAILA array underneath via EasyMount+®

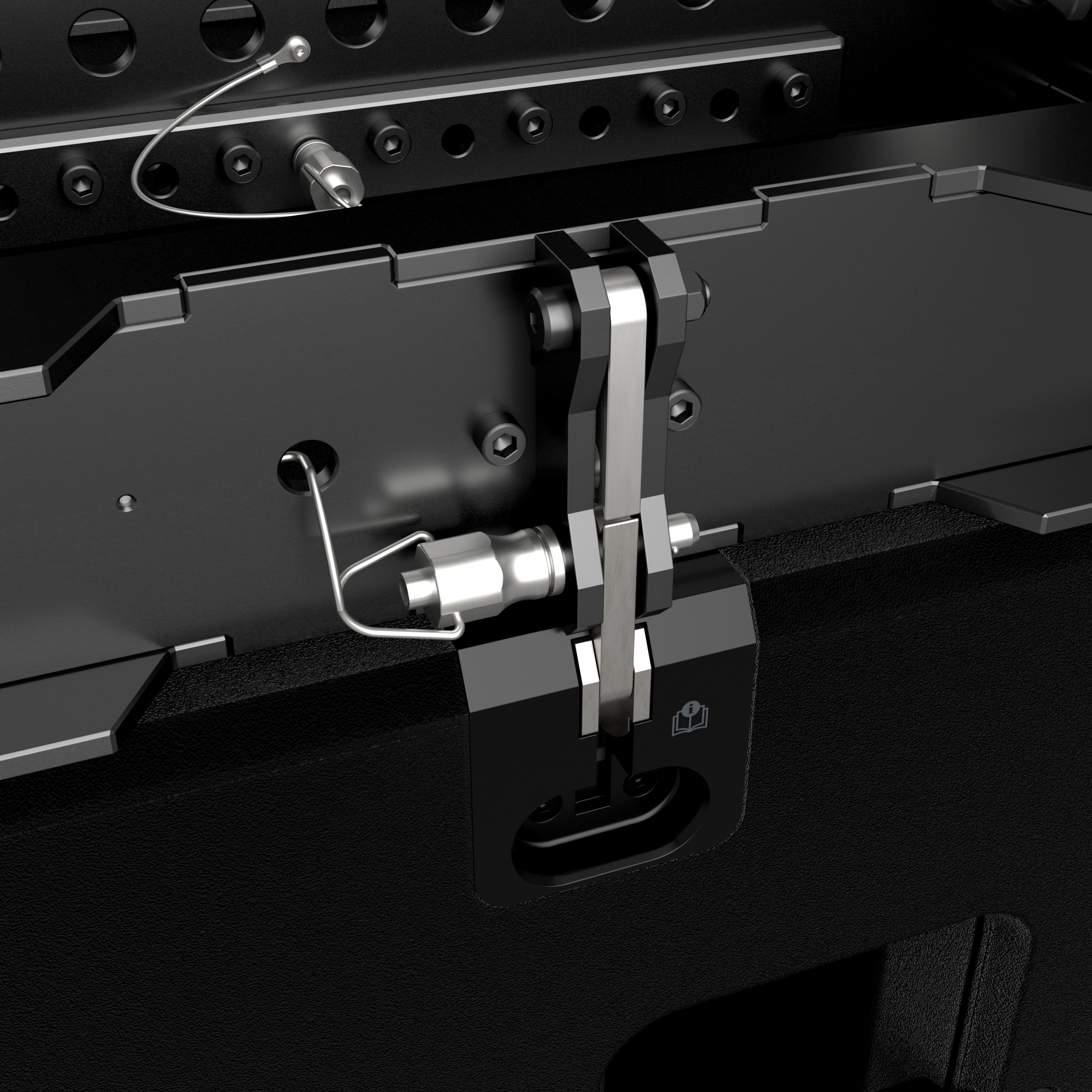

Tool-free and quick attachment via ball-lock pins
Multiple shackle positions for flexible rigging set-ups
Flight hardware for mounting MAILA SUB 15 F (P)
Supports 6 × SUB 15 F (P) or up to 300 kg total load
Can be attached to the bottom of the subwoofer to suspend a MAILA array underneath via EasyMount+®
Tool-free and quick attachment via ball-lock pins
Multiple shackle positions for flexible rigging set-ups
Description

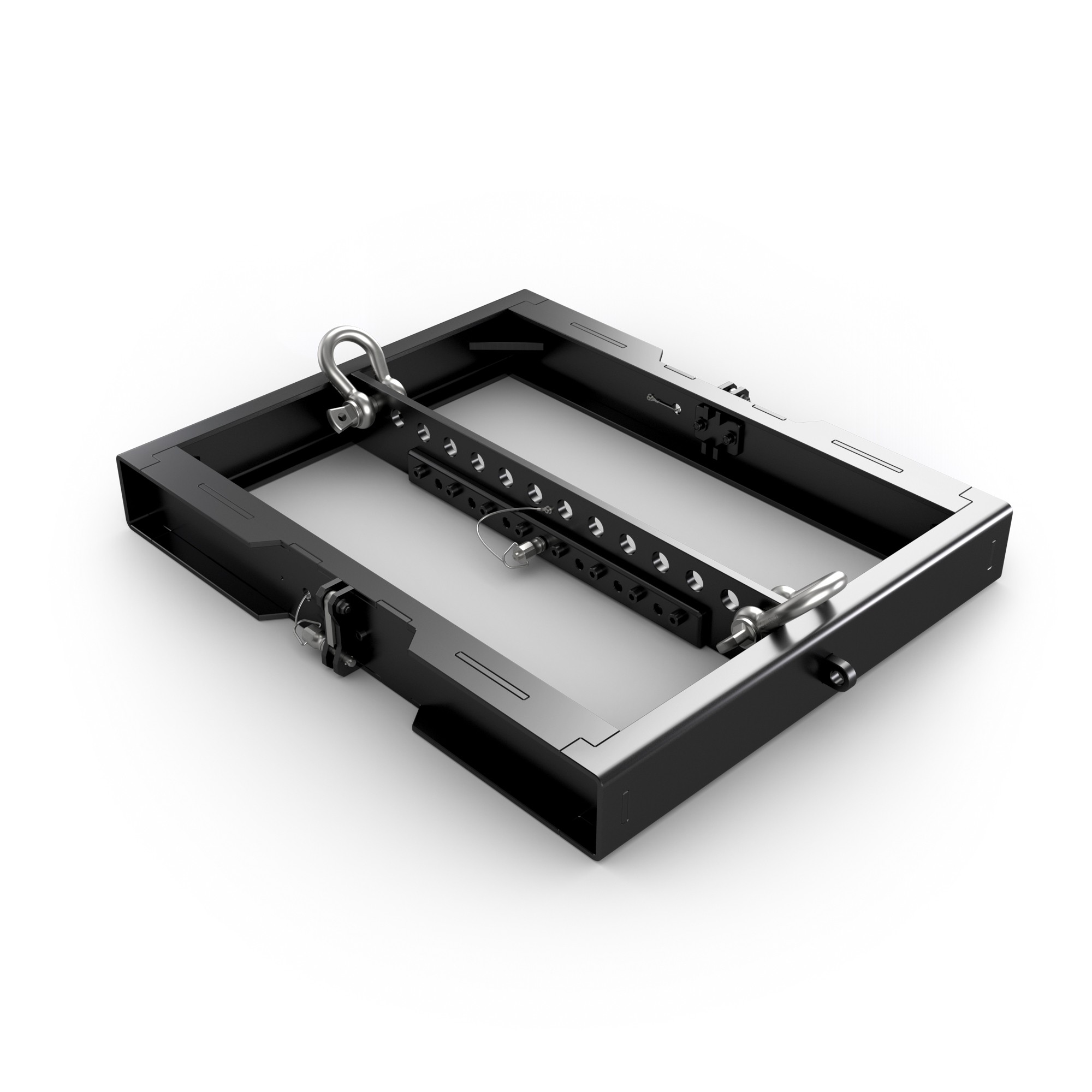

MAILA SUB 15 FB is the dedicated flying bracket to hang MAILA SUB 15 F (P). Designed for fast, secure and convenient rigging workflows on site, it attaches without tools via ball lock pins to the FastRig® mechanism built into the subwoofers. Multiple shackle positions provide flexibility when configuring the rig.

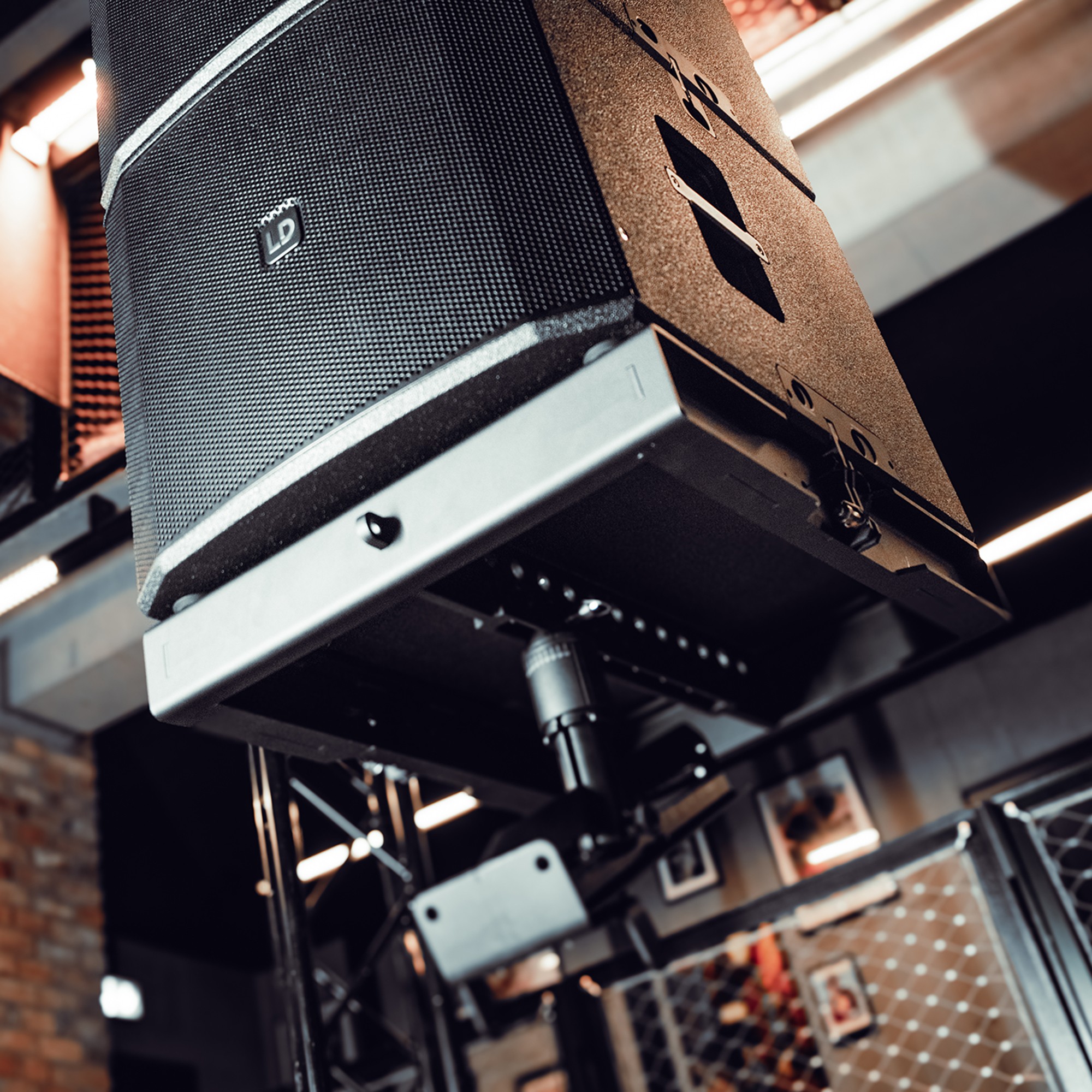

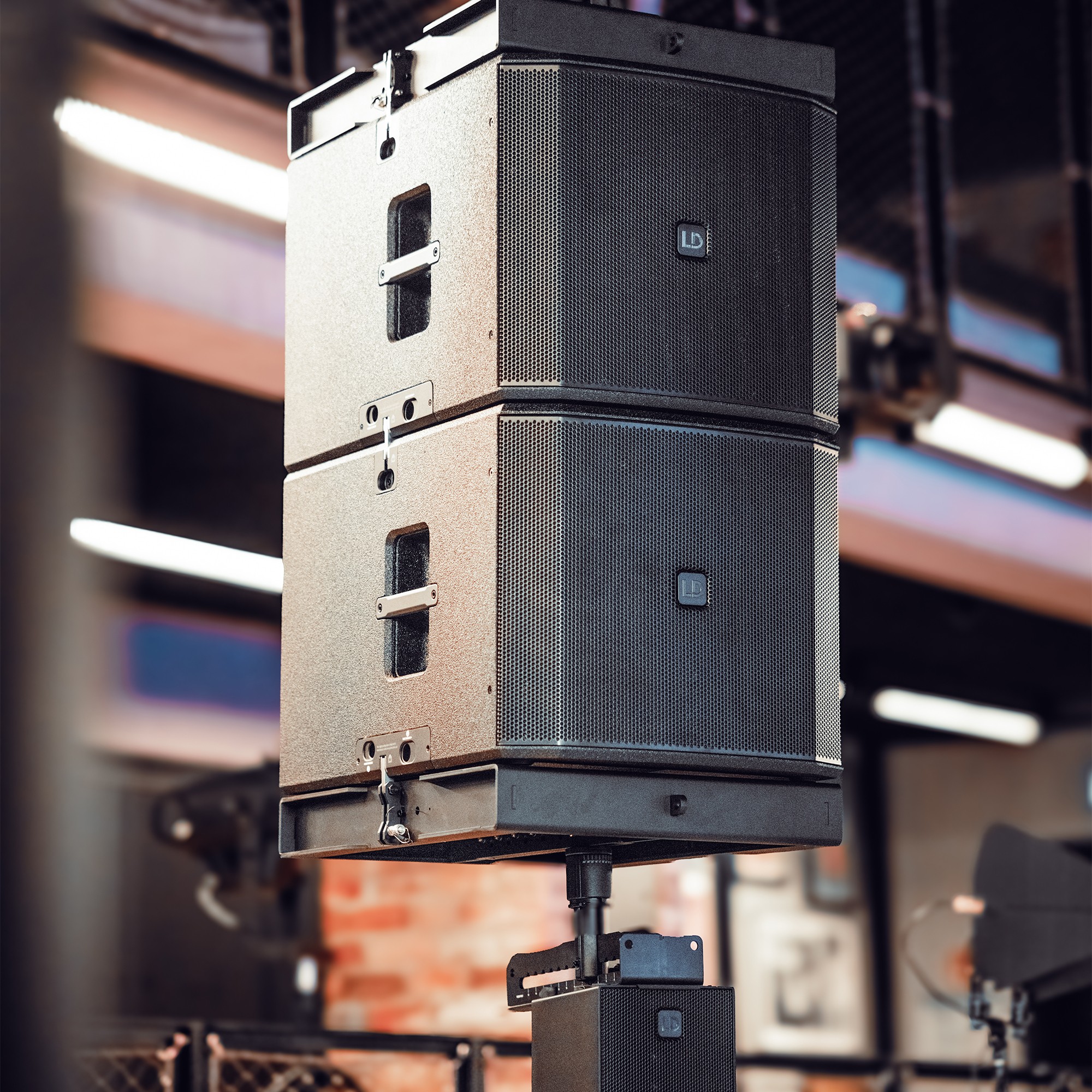

The flying bracket can also be fitted to the lowest subwoofer to suspend a MAILA array underneath the flown sub hang, in combination with EasyMount+® . The bracket supports up to six SUB 15 F (P) per hang or combined subwoofer/array configurations up to a maximum total load of 300 kg / 660 lbs.
Specifications
General
Mounting
Shekel,
FastRig®
Maximum load
300 kg
Material
Steel
Coating
Powder coated
Locking
Ball lock pins
Device mounting
Shekel,
FastRig®,
EasyMount+®
Colour
Black
Dimensions & weight
Width
538 mm
Height
85.3 mm
Depth
707.6 mm
Other properties
Included accessories
Shekel
Recommended accessories
EasyMount+®
